Seat Heater Control Unit, Component Description - GF91.30-P-5214A

Model 223

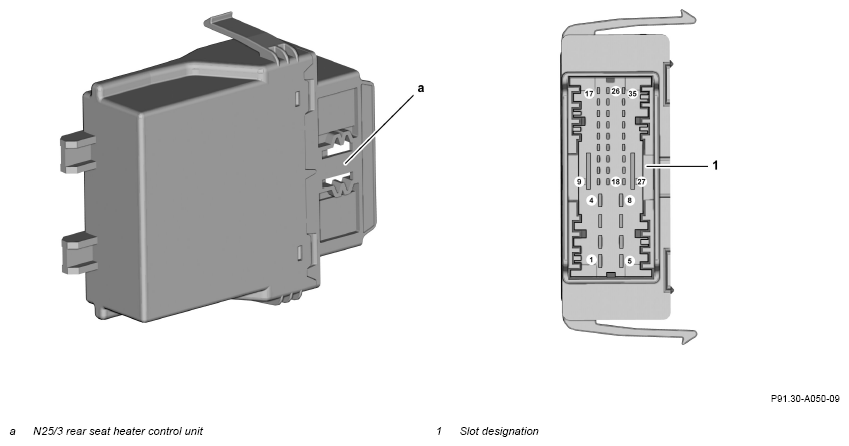

G16232835Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

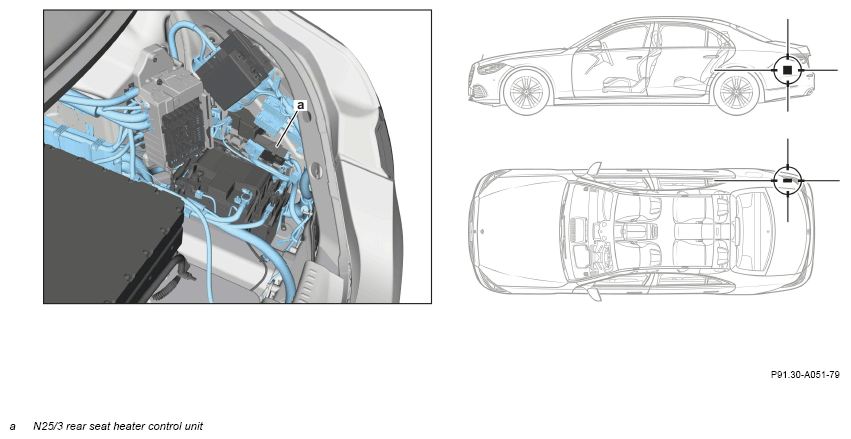

Fig 1: Rear Seat Heater Control Unit Components Location - Model 223
G16232836Courtesy of MERCEDES-BENZ USA

Location
