Right Rear Seat Control Unit, Component Description - GF91.29-P-5290A

Model 223

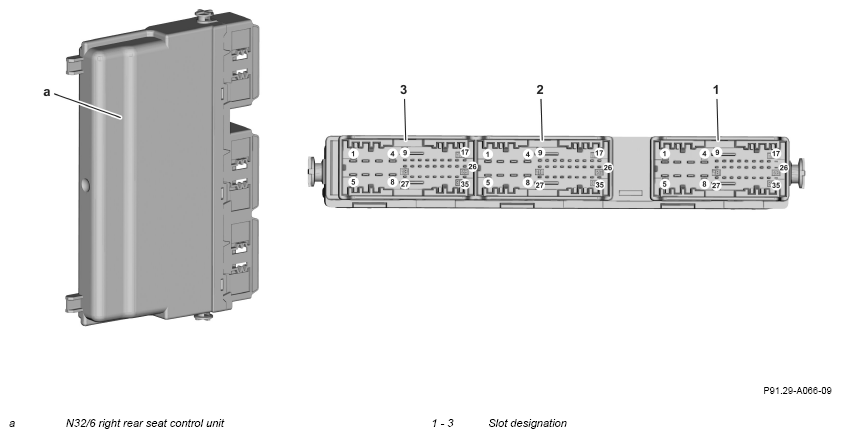

G16232807Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Right Rear Seat Control Unit Components Location - Model 223
G16232808Courtesy of MERCEDES-BENZ USA

Location on right
