Pyrofuse, Component Description - GF91.60-P-4071A

Model 223

with code B01 (48V technology)

with code ME10 (Hybrid vehicle (plug-in, PHEV))

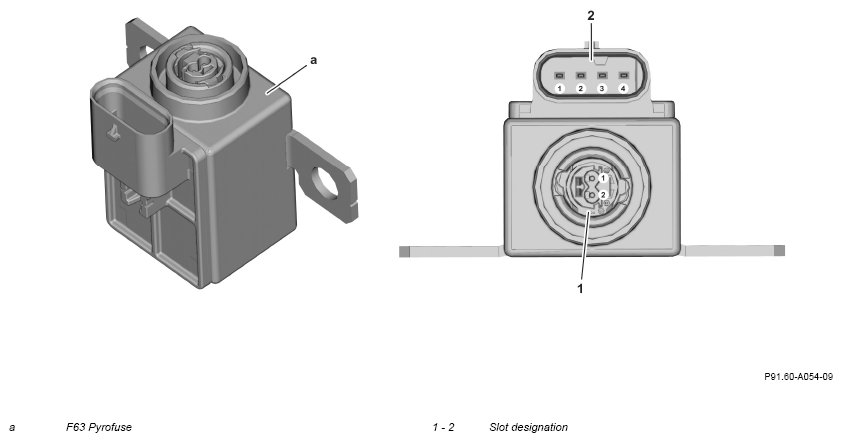

G16232932

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

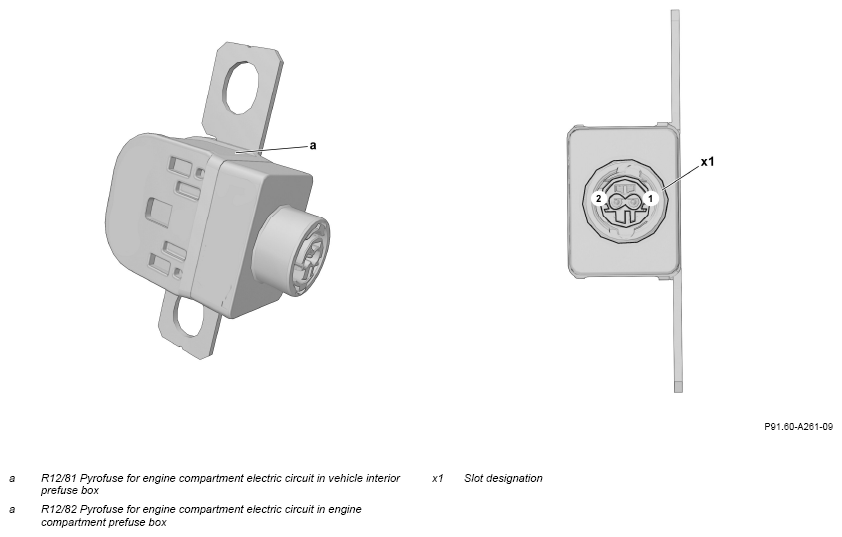

G16232933

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

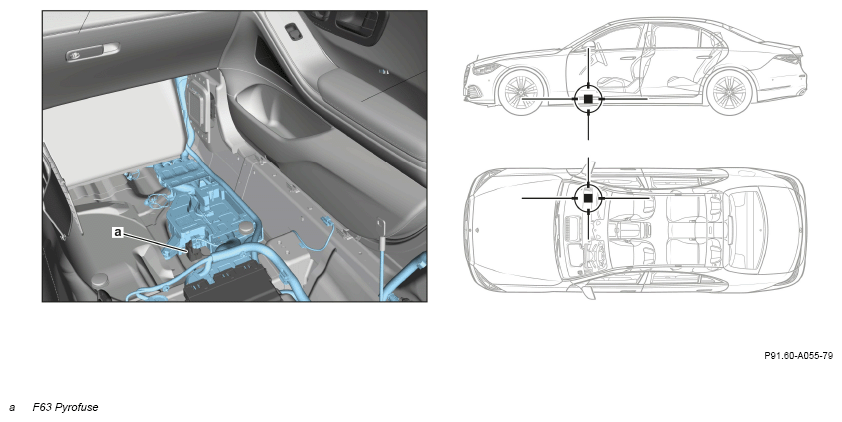

G16232934

Courtesy of MERCEDES-BENZ USA

Location on model 223

Fig 1: Pyrofuse In Vehicle Interior Pre-Fuse Box Components Location - Model 223 (with code L)

G16232935

Courtesy of MERCEDES-BENZ USA

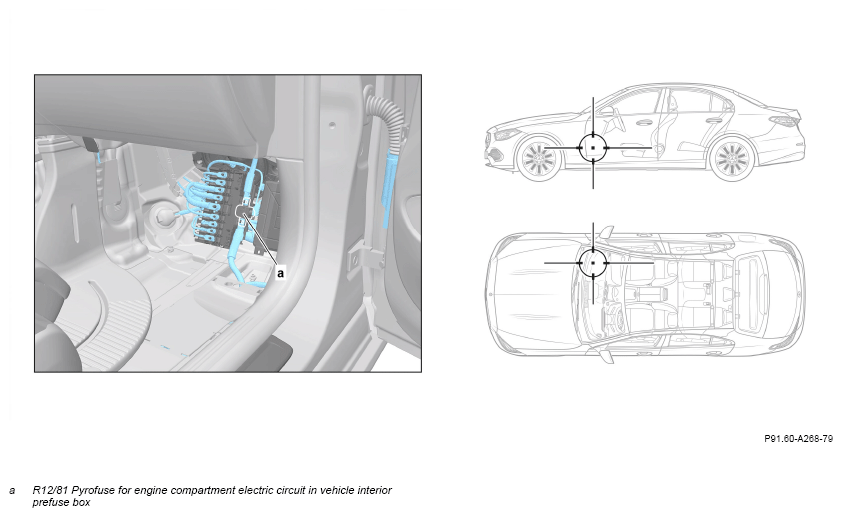

Location on model 223 (with code L)

G16232936

Courtesy of MERCEDES-BENZ USA

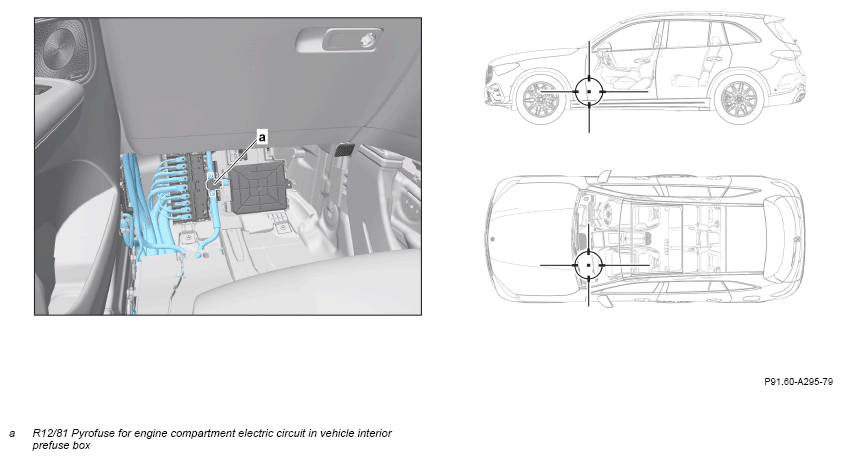

Location on model 223 (with code R)

Fig 2: Pyrofuse In Engine Compartment Pre-Fuse Box Components Location - Model 223 (with code L)

G16232937

Courtesy of MERCEDES-BENZ USA

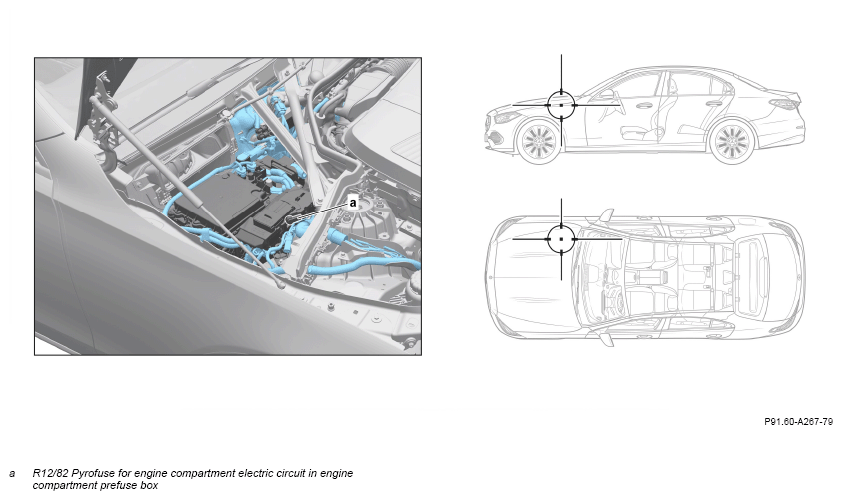

Location on model 223 (with code L)

G16232938

Courtesy of MERCEDES-BENZ USA

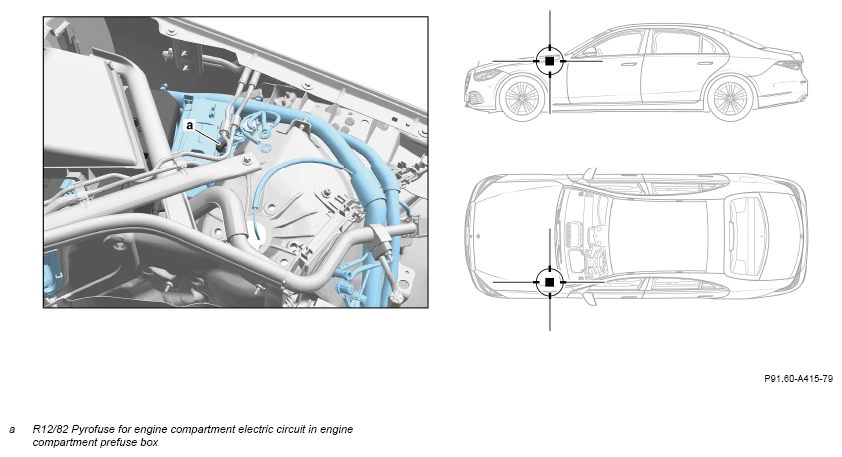

Location on model 223 (with code R)
