Multicontour Seat Control Unit (MCS), Component Description - GF91.25-P-5201A

Model 223

Courtesy of MERCEDES-BENZ USA

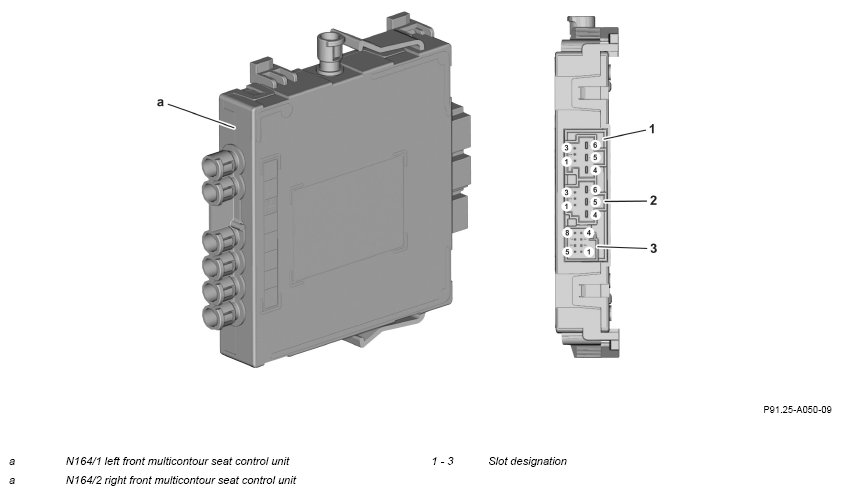

Illustration valid for model 223 with code 432

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

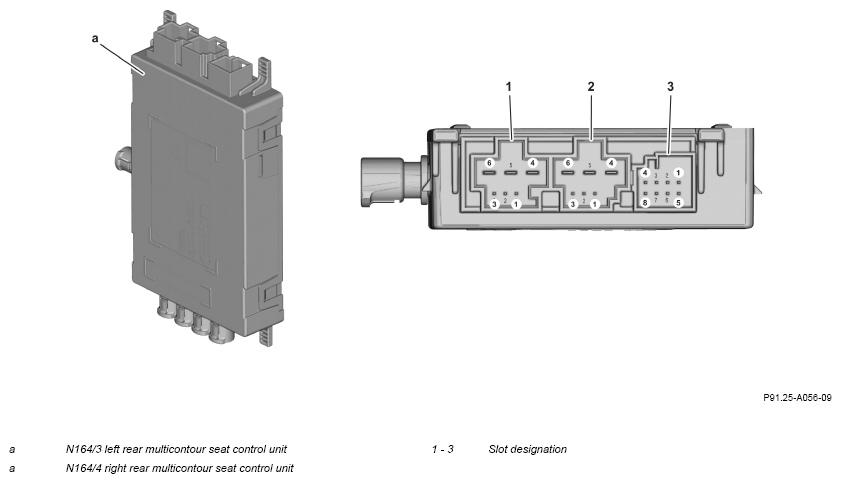

Illustration valid for model 223 with code 406 except code FZ

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

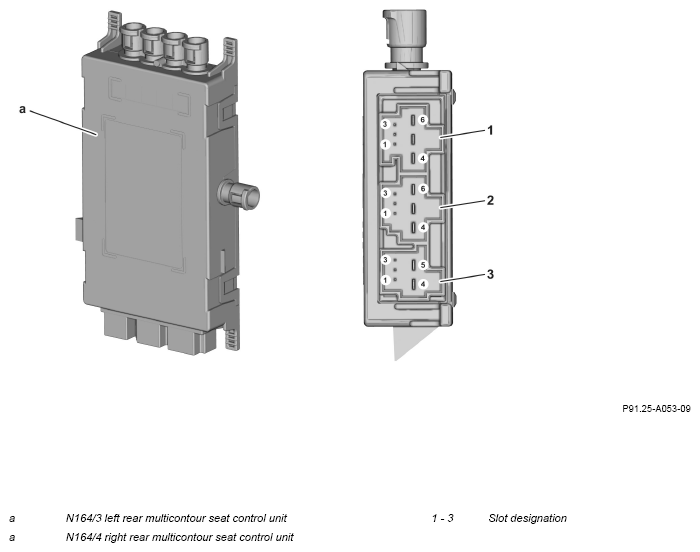

Illustration valid for model 223 with code 406 except code 323

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

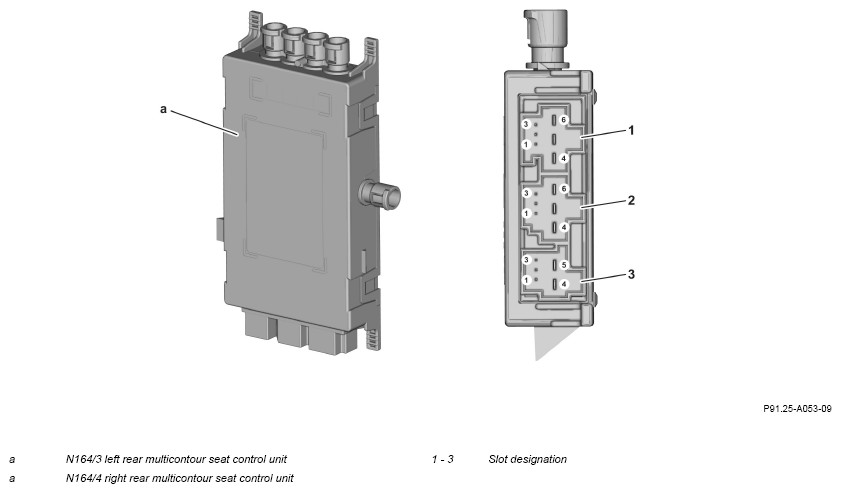

Illustration valid for model 223 with code 406, FZ

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with code 406, FZ

The numbers on the pins indicate the pin numbering of the slots.

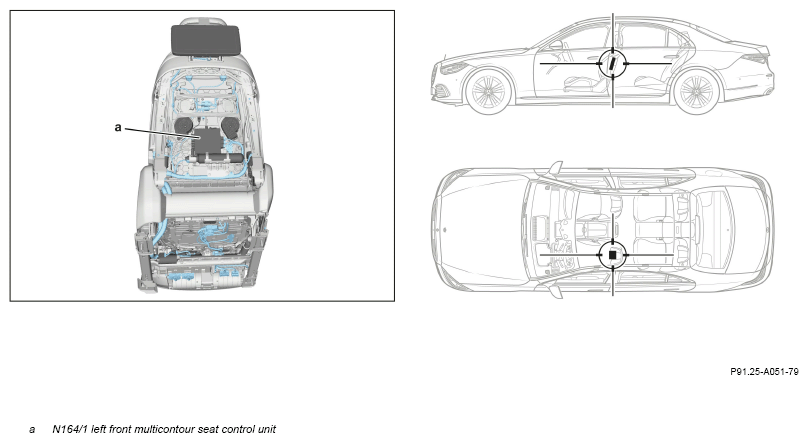

Location on left, model 223 with code 432

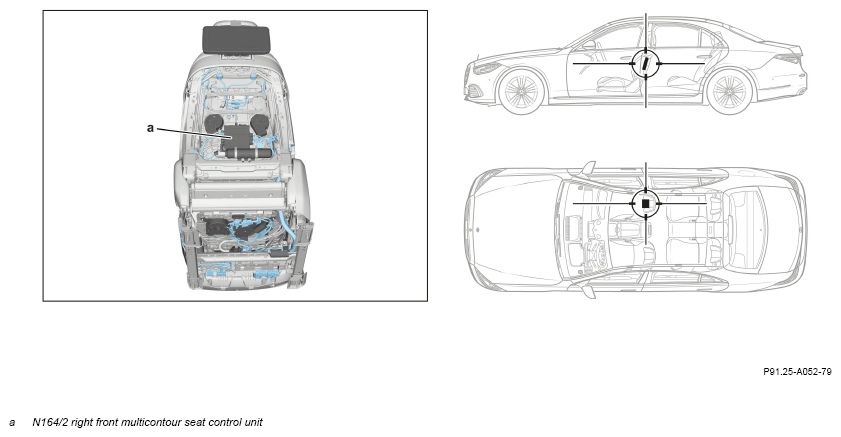

Location on right, model 223 with code 432

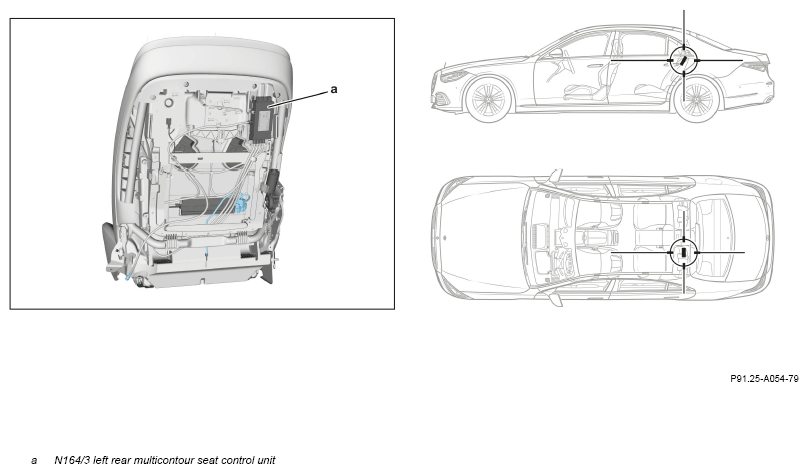

Location on left, model 223 with code 406

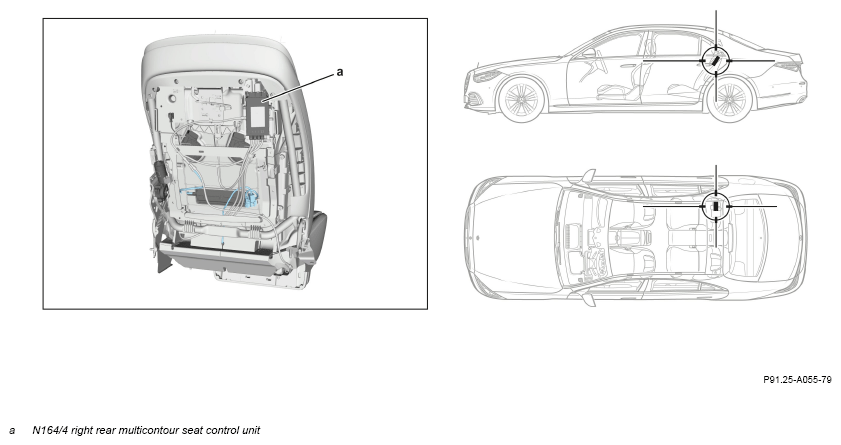

Location on right, model 223 with code 406
