Massage Function Control Unit, Component Description - GF91.25-P-5212A

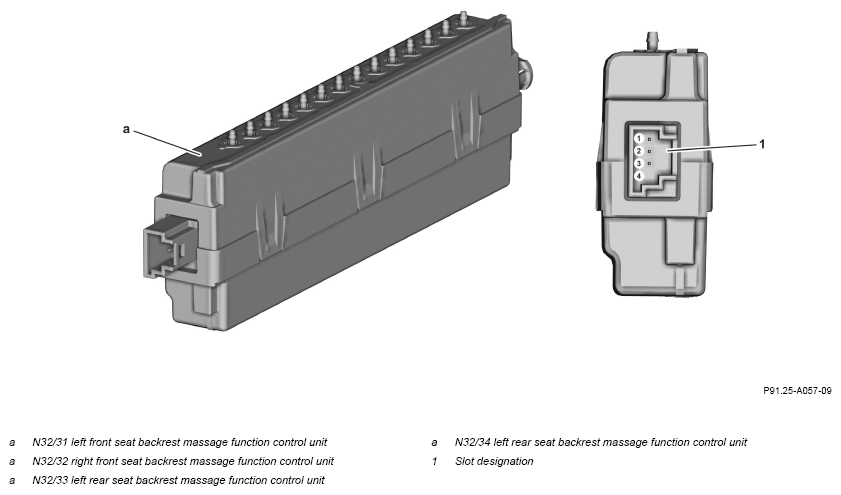

Model 223

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

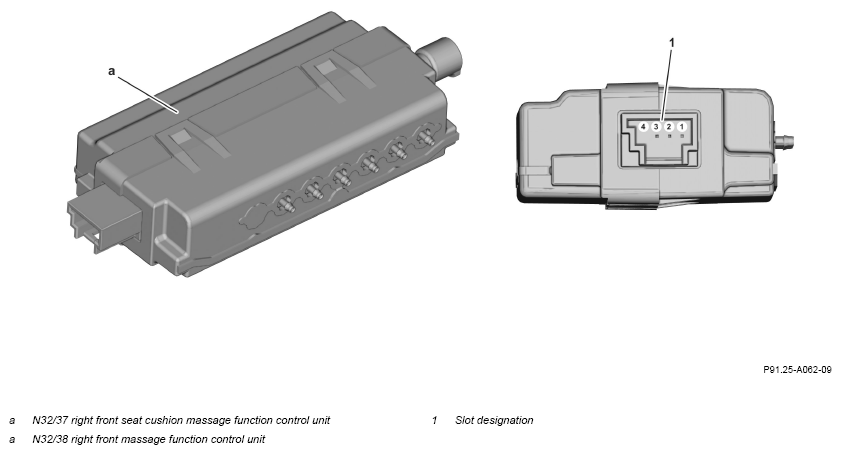

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

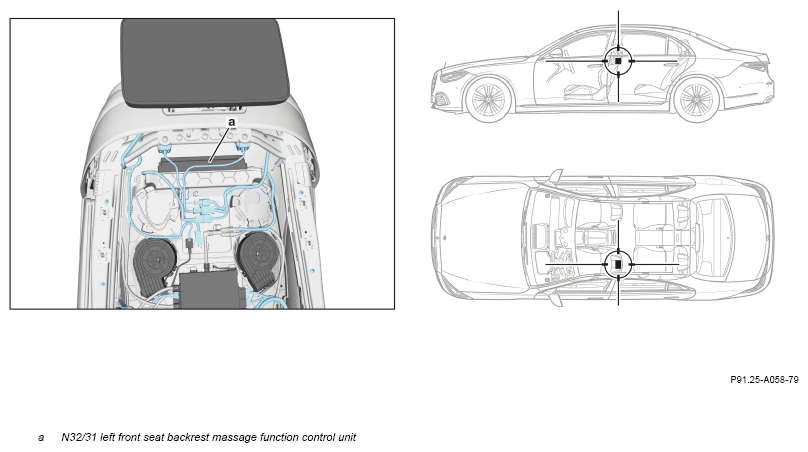

Fig 1: Left Front Seat Backrest Massage Function Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

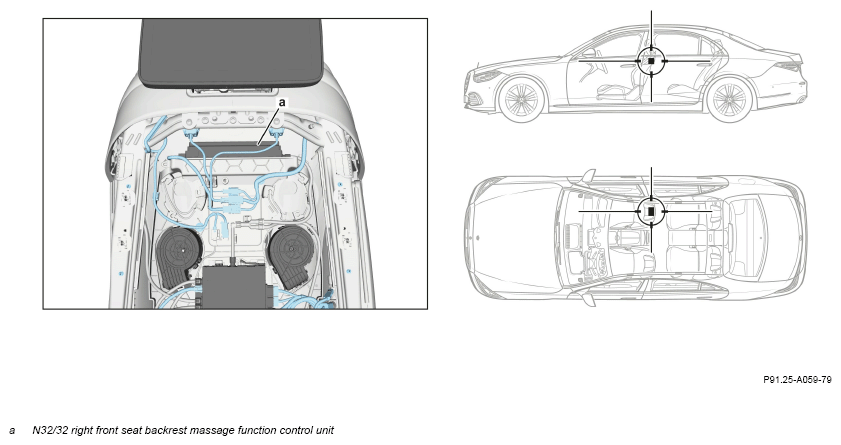

Fig 2: Right Front Seat Backrest Massage Function Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

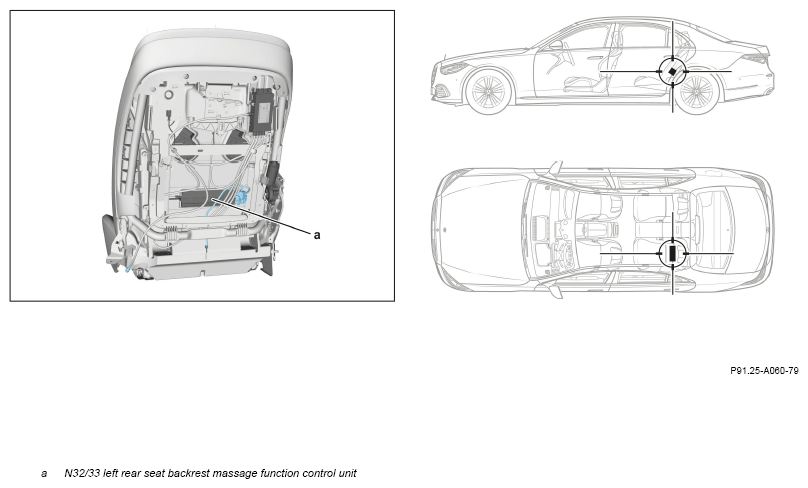

Fig 3: Left Rear Seat Backrest Massage Function Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

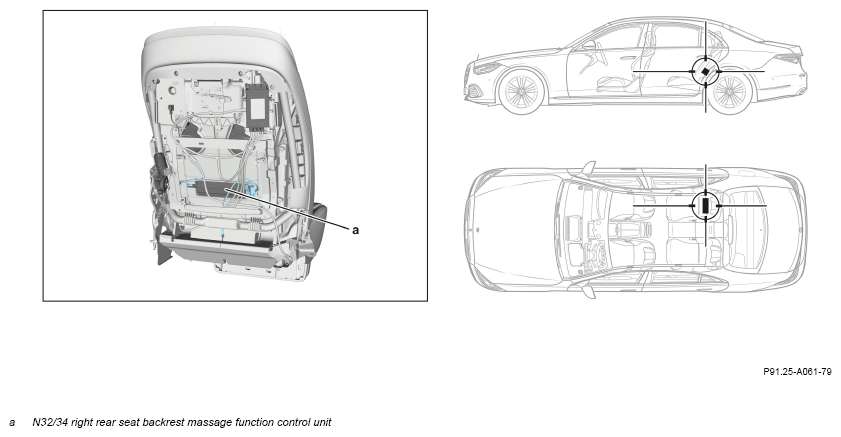

Fig 4: Right Rear Seat Backrest Massage Function Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

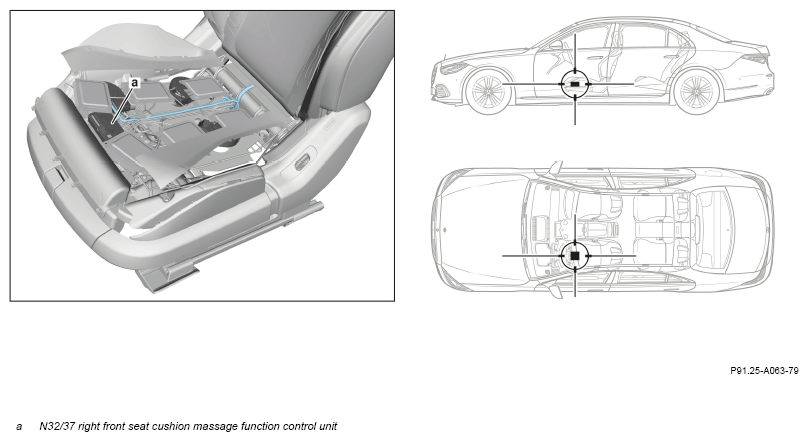

Fig 5: Left Front Seat Cushion Massage Function Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on left, model 223

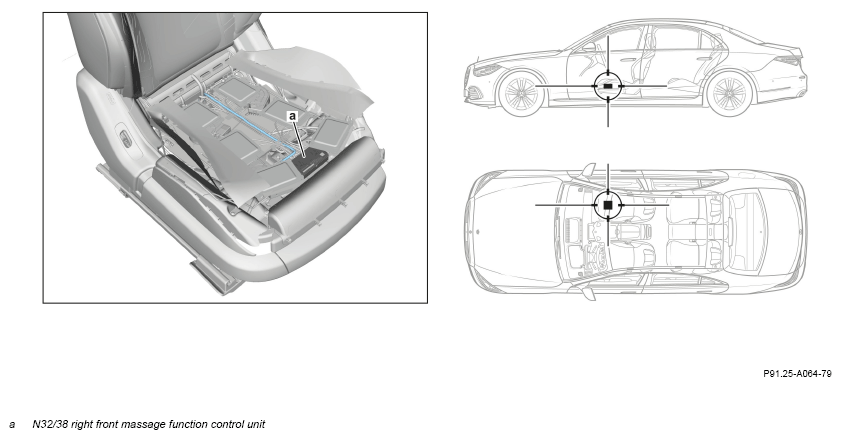

Fig 6: Right Front Seat Cushion Massage Function Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on right, model 223
