Left Rear Seat Control Unit, Component Description - GF91.29-P-5285A

Model 223

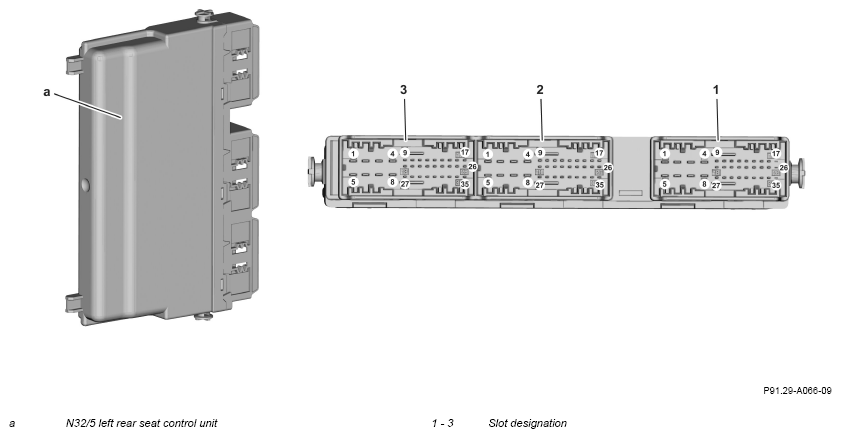

G16232805Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

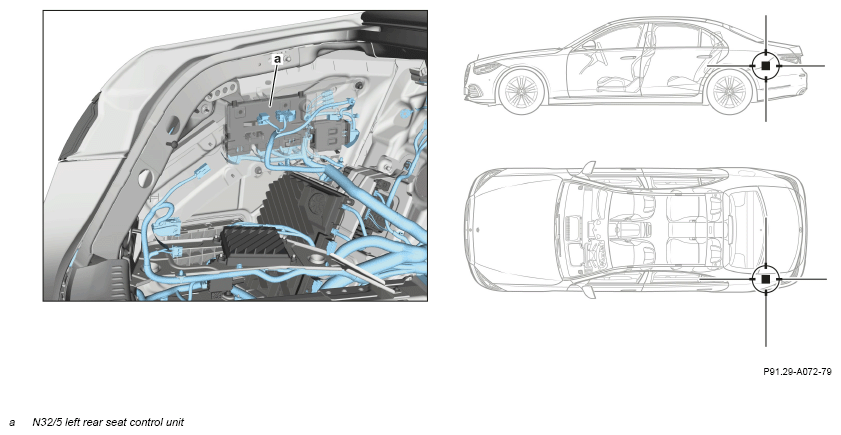

Fig 1: Left Rear Seat Control Unit Components Location - Model 223
G16232806Courtesy of MERCEDES-BENZ USA

Location on left
