Component Description For Weight Sensing System (WSS) Control Unit - GF91.60-P-4046A

Model 223

with code U10 (Front passenger seat with weight sensor)

Courtesy of MERCEDES-BENZ USA

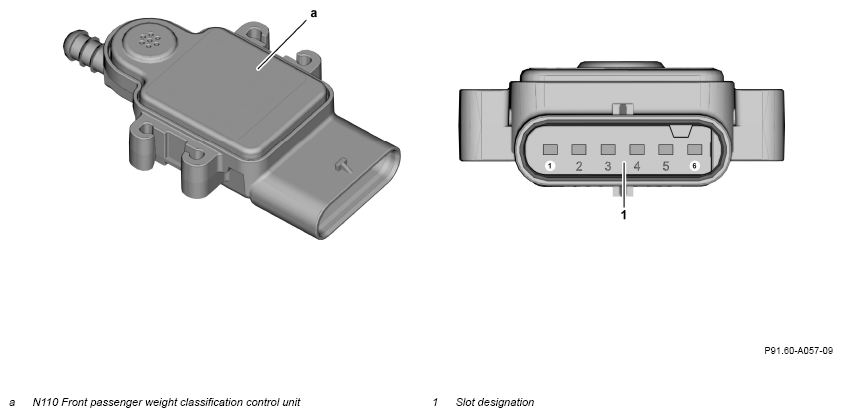

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Weight Sensing System (WSS) Control Unit Components Location - Model 223 With Code U10 And Code L

Courtesy of MERCEDES-BENZ USA

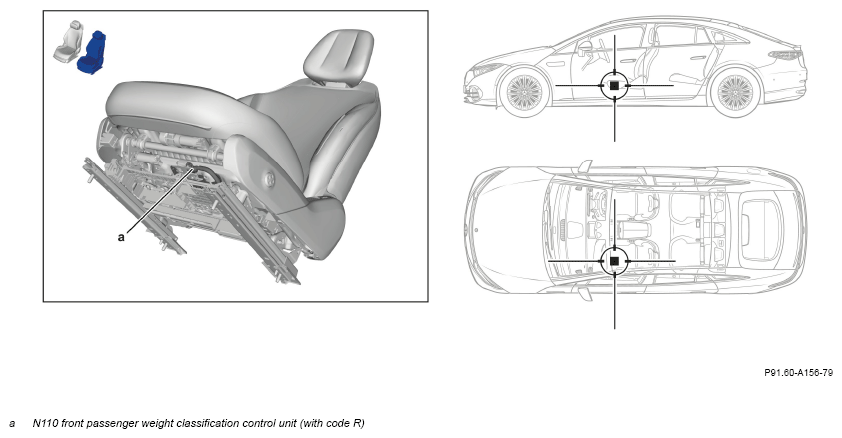

Location for model 223

Courtesy of MERCEDES-BENZ USA

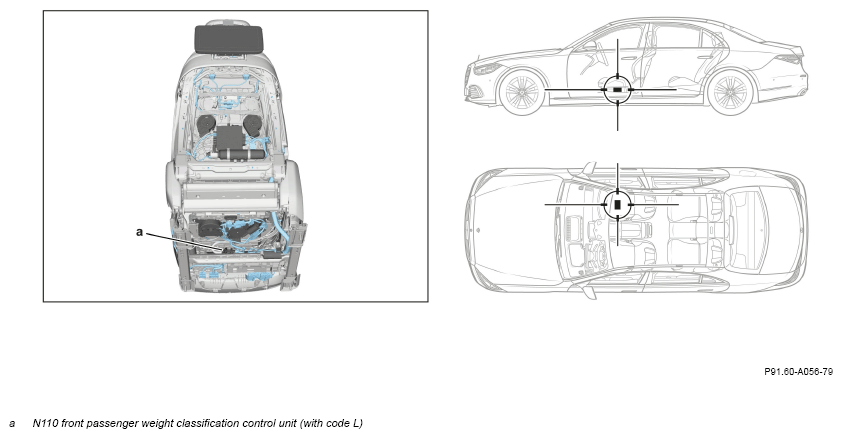

Location for model 223
