Belt Extender, Component Description - GF91.45-P-4000A
Model 223
with code 223 (Electric backrest adjustment and head restraints)
with code U07 (Seat belt extender in rear passenger compartment)
 Courtesy of MERCEDES-BENZ USA
|

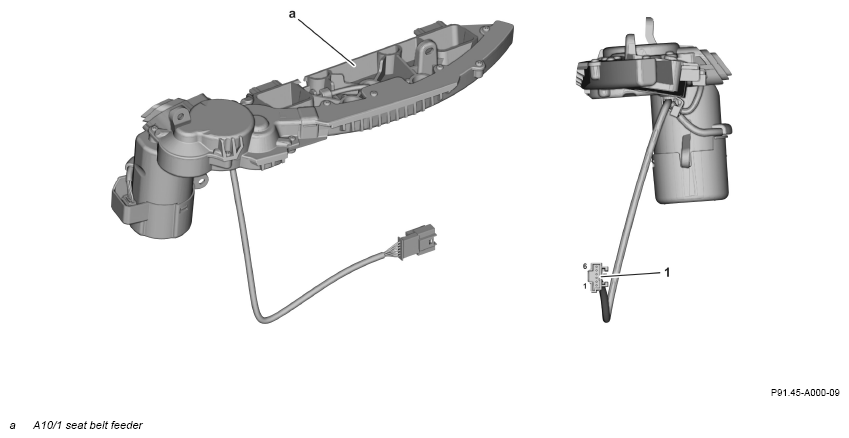

The numbers on the pins indicate the pin numbering of the slots
 Courtesy of MERCEDES-BENZ USA
|
The numbers on the pins indicate the pin numbering of the slots
Courtesy of MERCEDES-BENZ USA
Location on left rear
 Courtesy of MERCEDES-BENZ USA
|
Location on right rear
