Model 223
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223

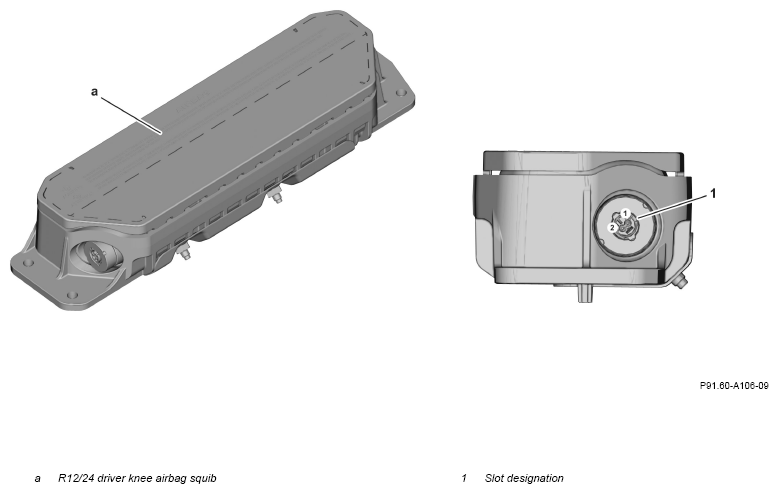

The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223

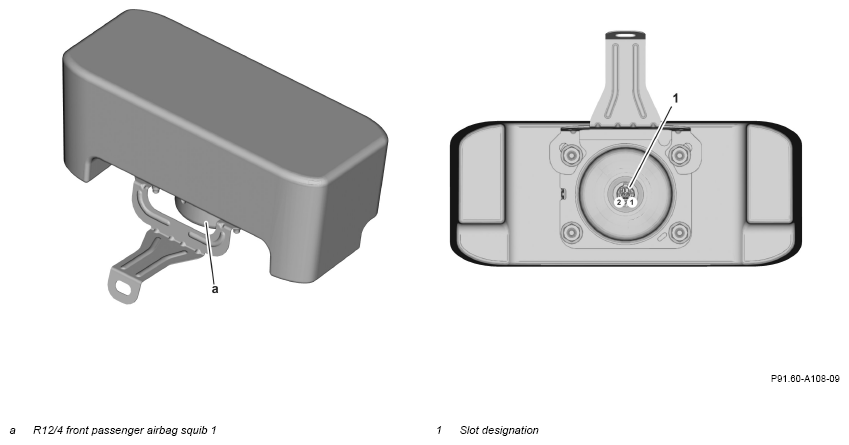

The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223 except code 494

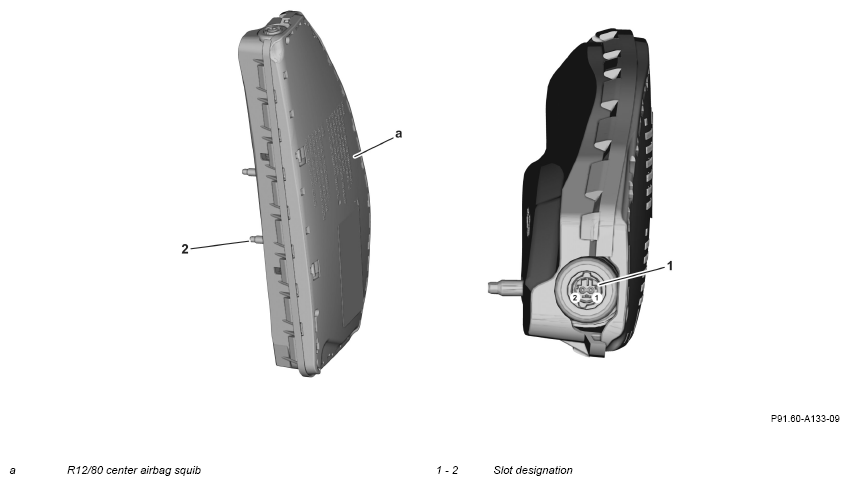

The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223 except code 460

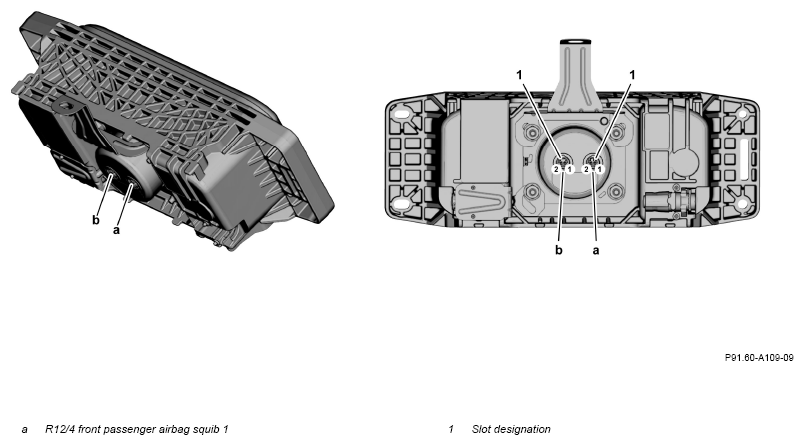

The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Diagram valid for model 223 with code 494
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Diagram valid for model 223 with code 460
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

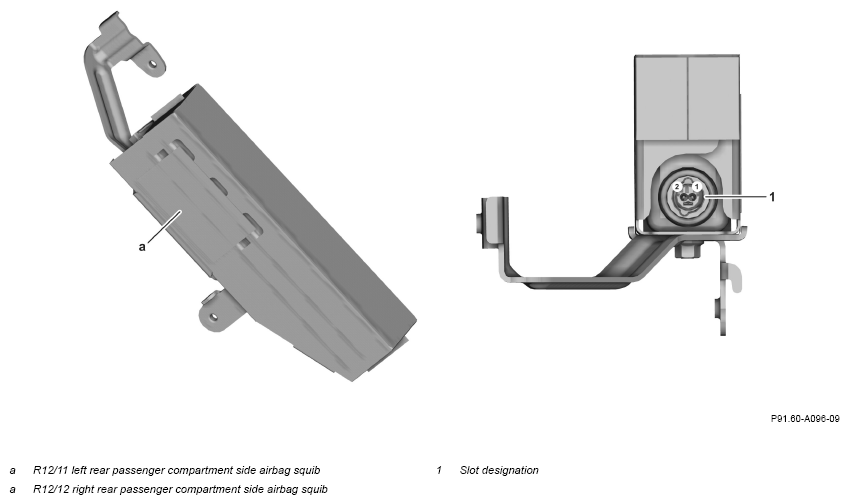

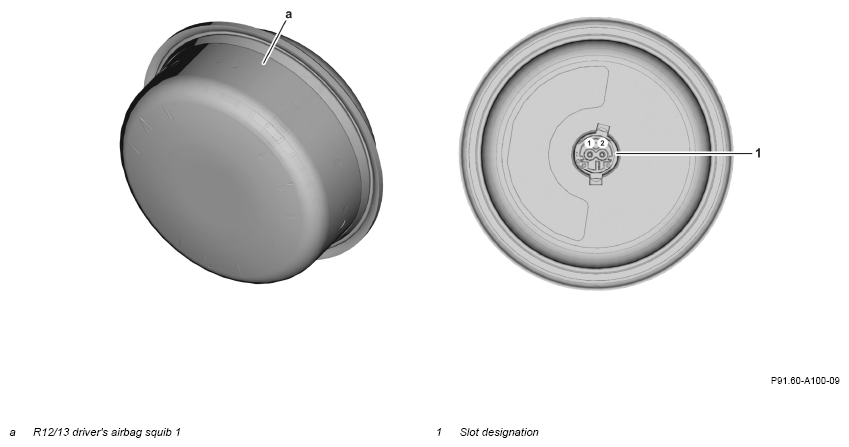

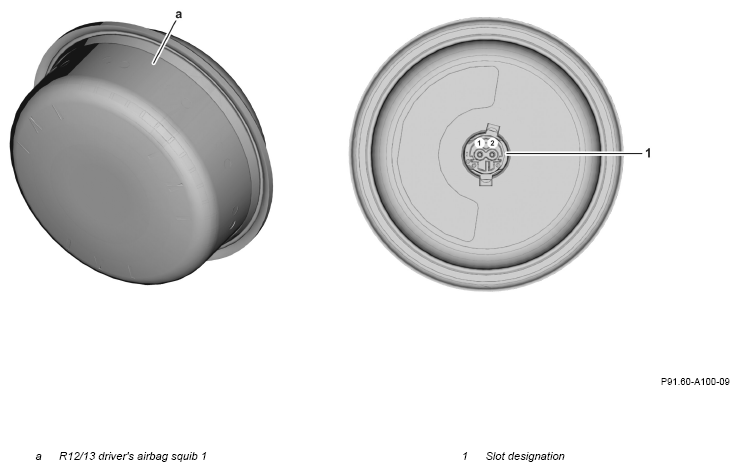

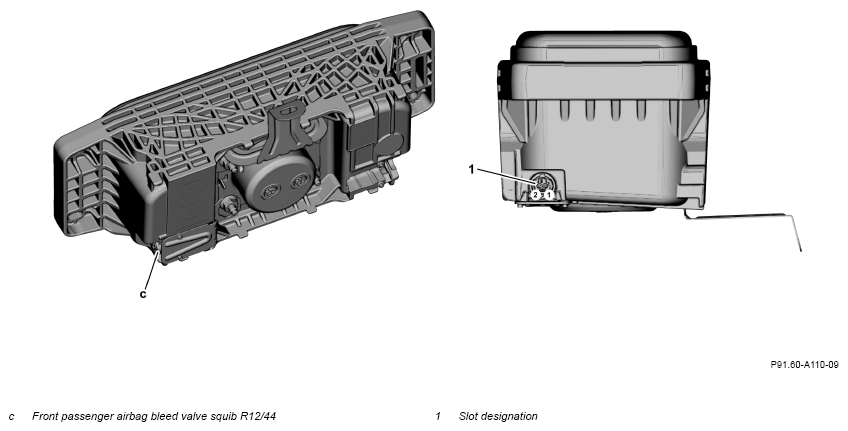

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

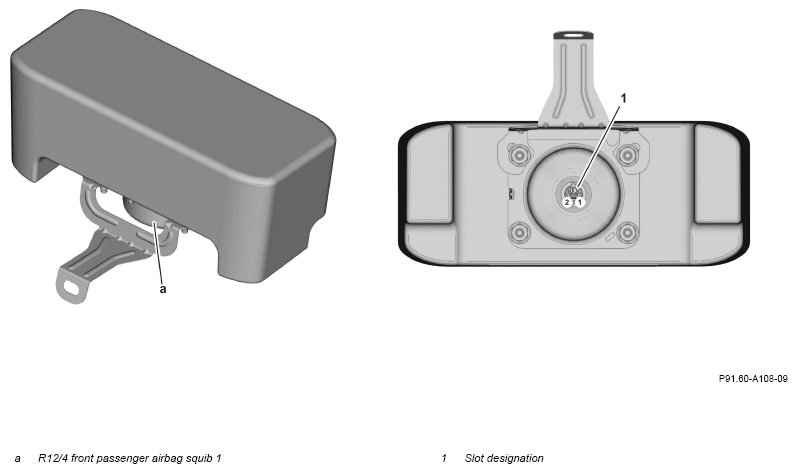

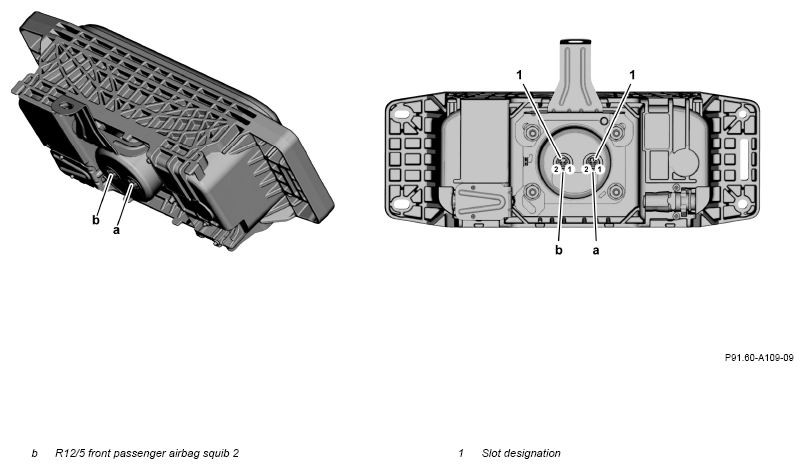

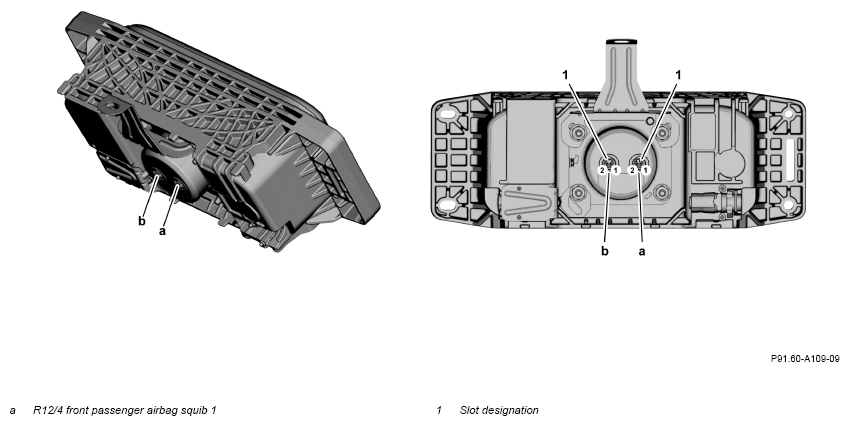

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

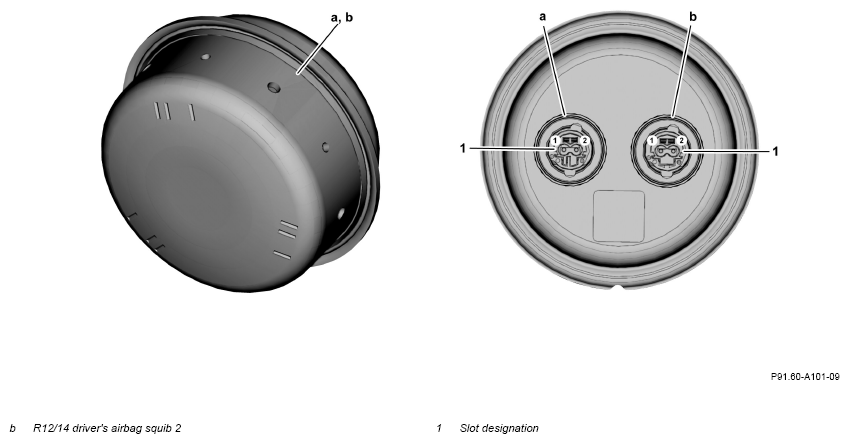

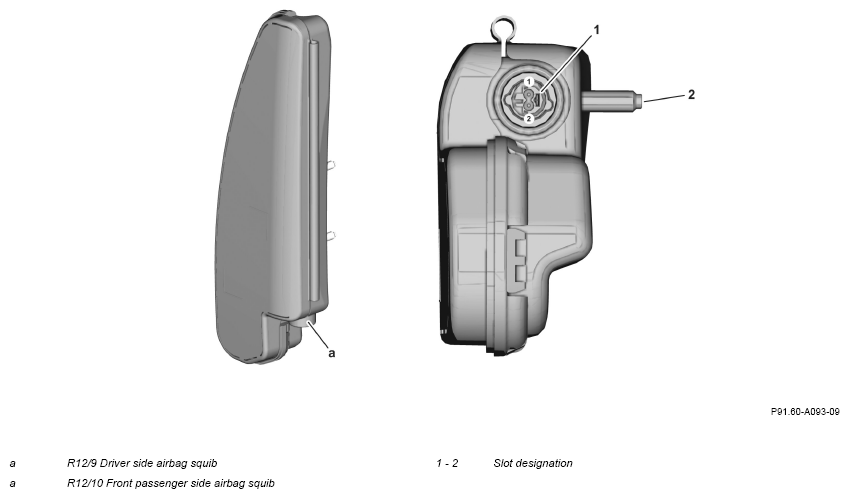

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223 except code 494
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223 except code 460
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223 except code 498
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223 except code 835
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Diagram valid for model 223 with code 494
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Diagram valid for model 223 with code 460
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

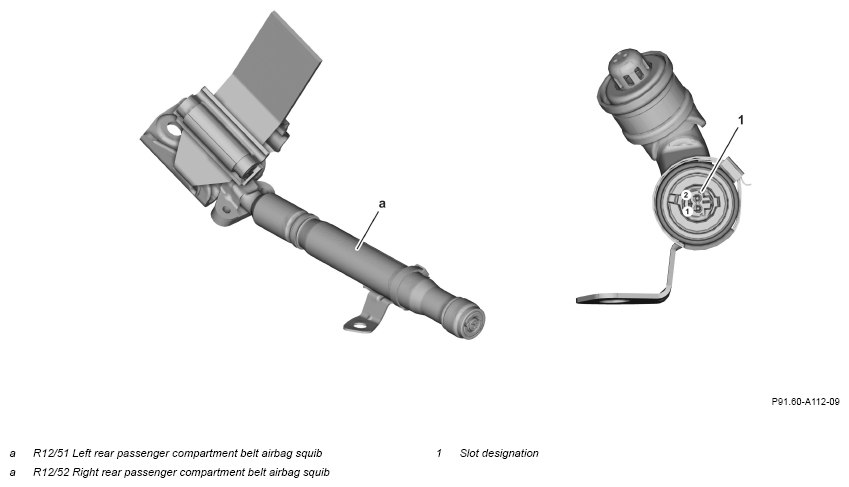

Illustration valid for model 223 with code 498
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

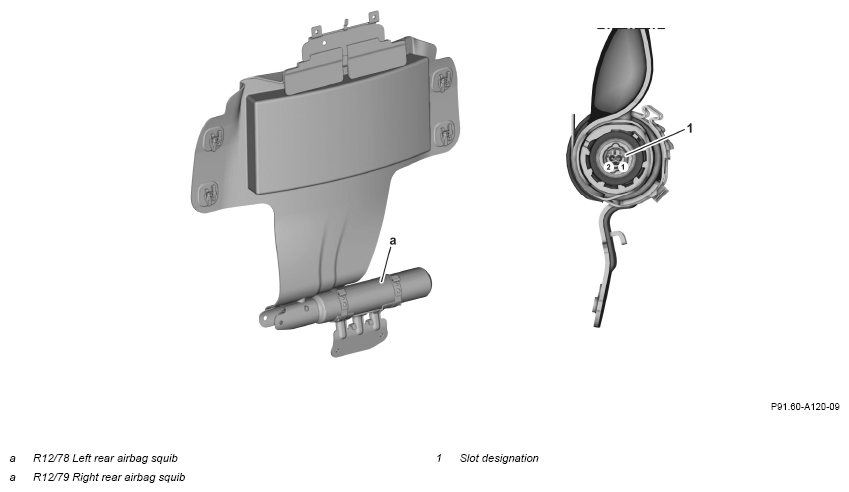

Diagram valid for model 223 with code 835
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

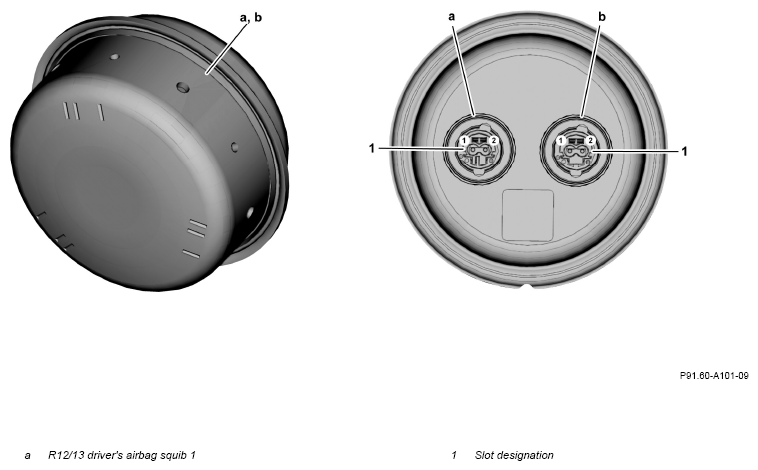

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

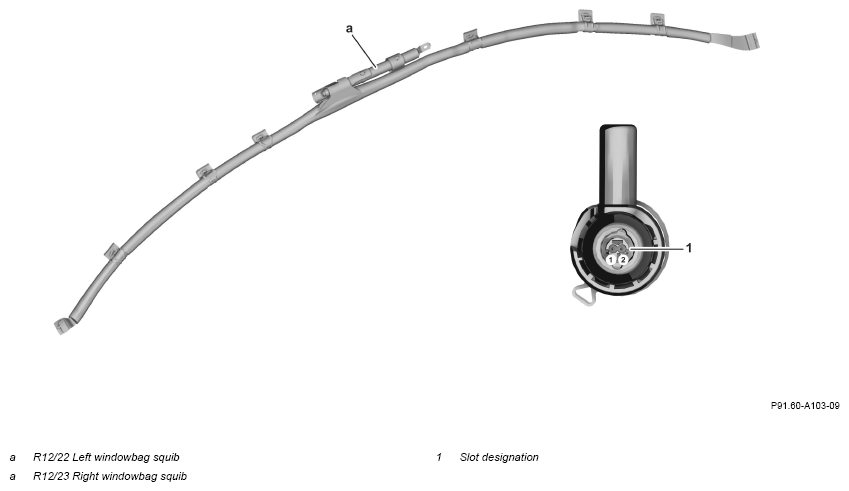

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

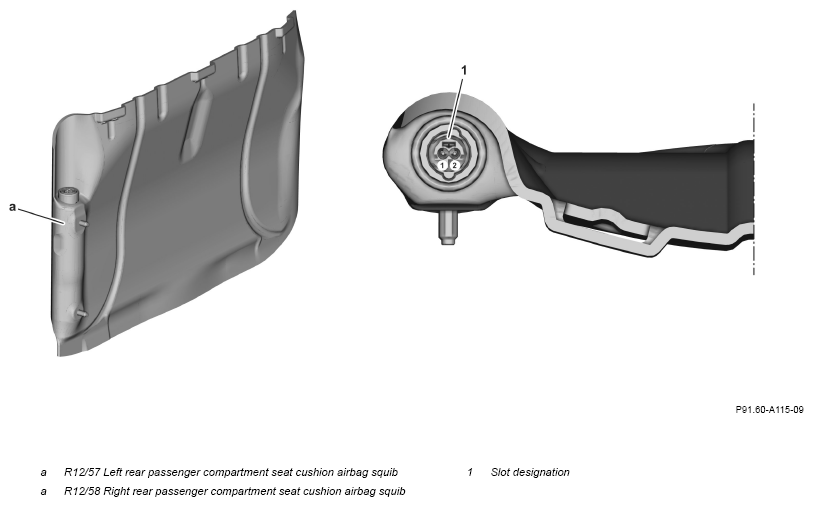

Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Illustration valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

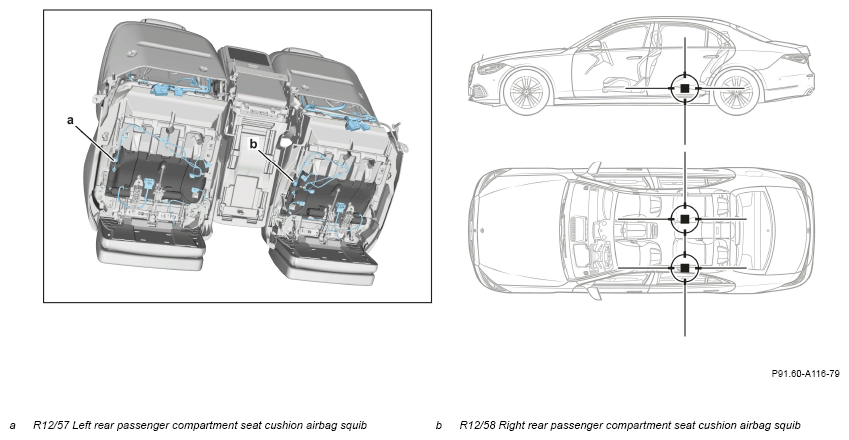

Location on model 223
 Courtesy of MERCEDES-BENZ USA
|

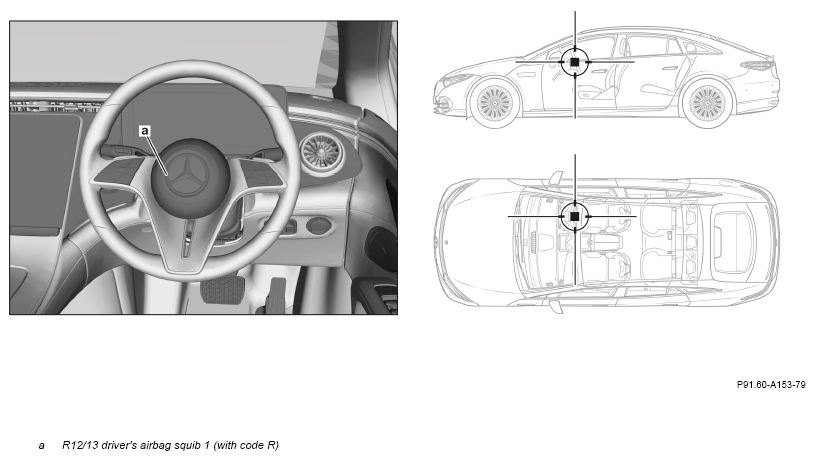

Location on model 223
 Courtesy of MERCEDES-BENZ USA
|

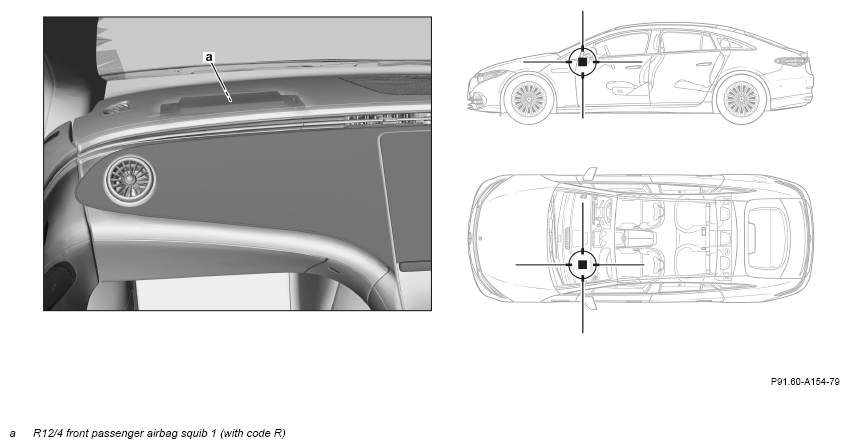

Location on left
 Courtesy of MERCEDES-BENZ USA
|

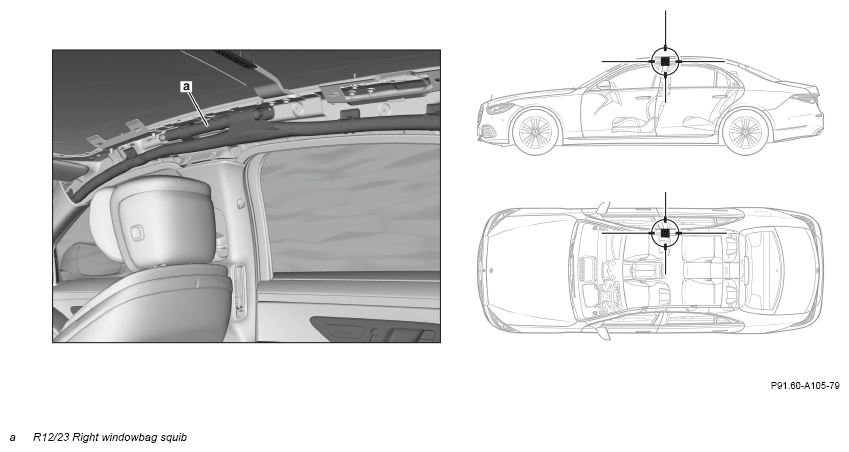

Location on right
 Courtesy of MERCEDES-BENZ USA
|

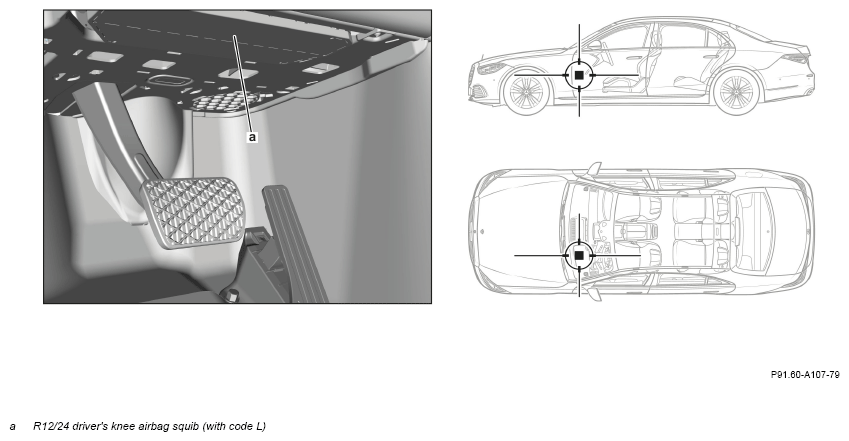

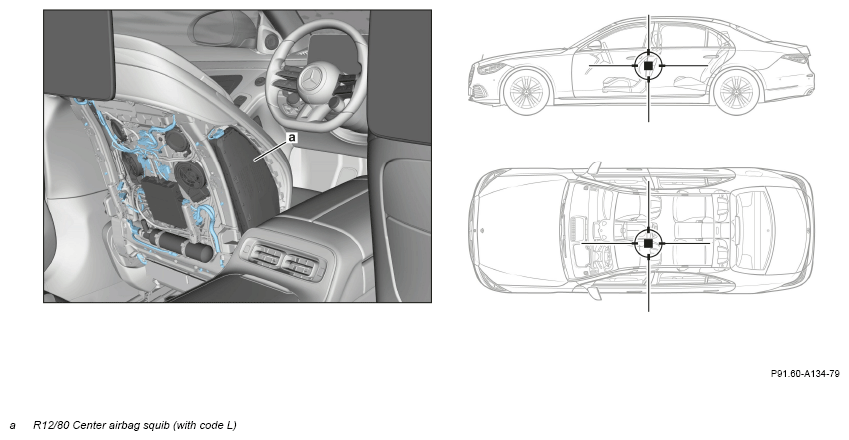

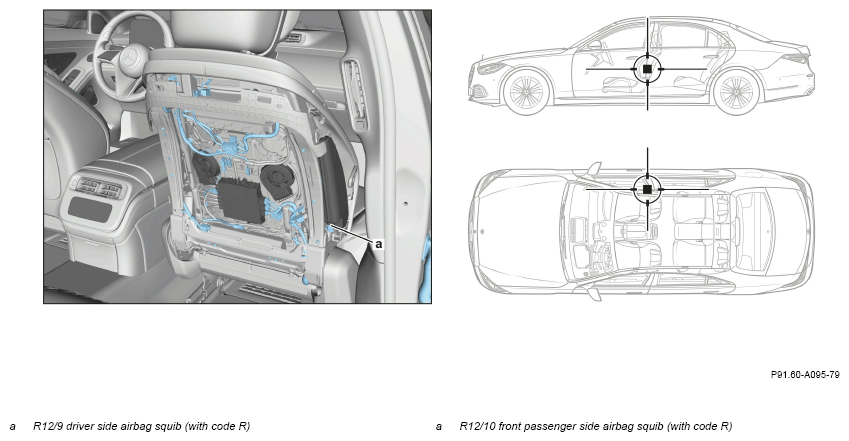

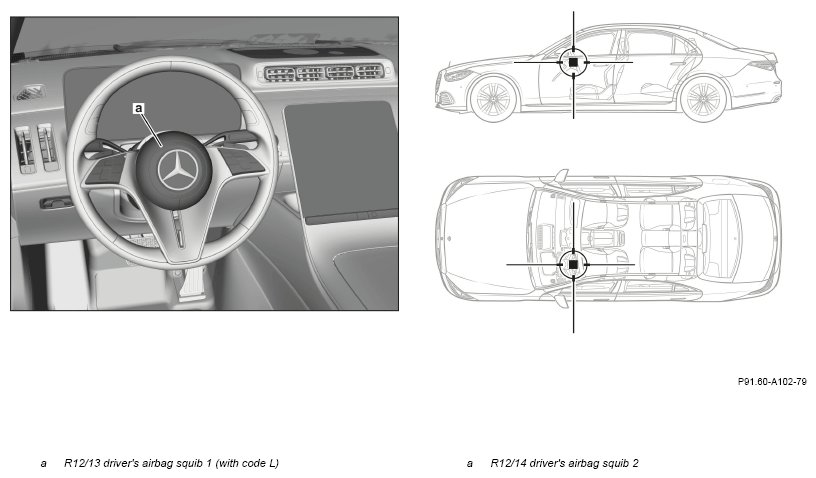

Location on model 223
 Courtesy of MERCEDES-BENZ USA
|

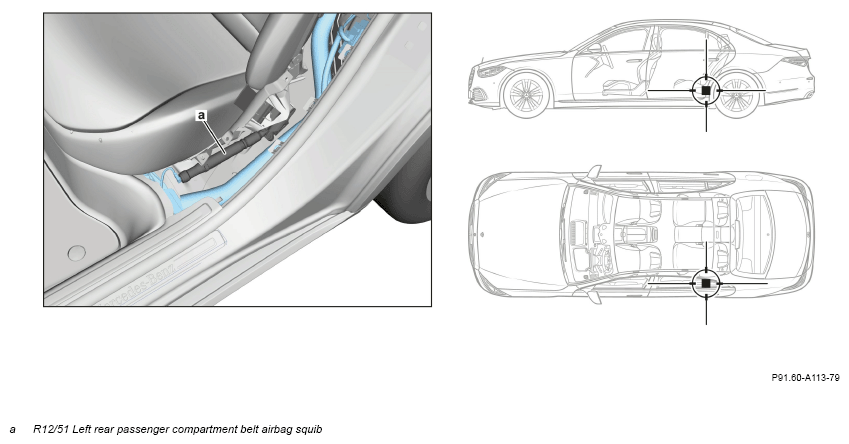

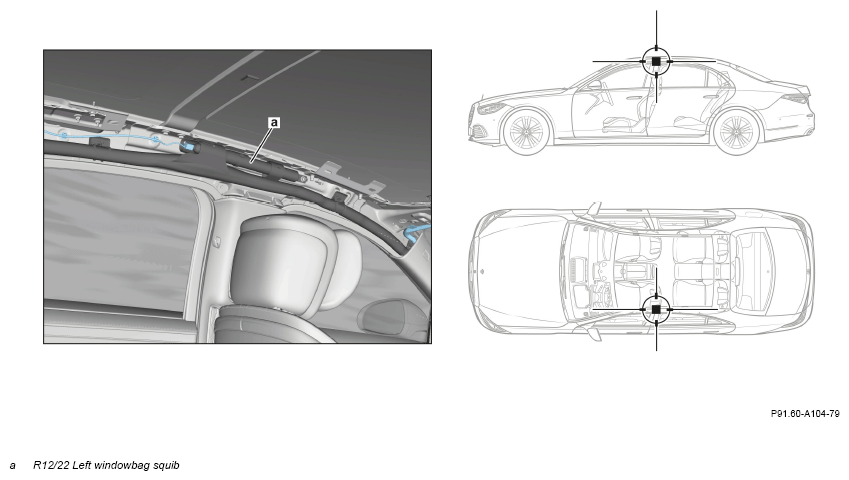

Location on left
 Courtesy of MERCEDES-BENZ USA
|

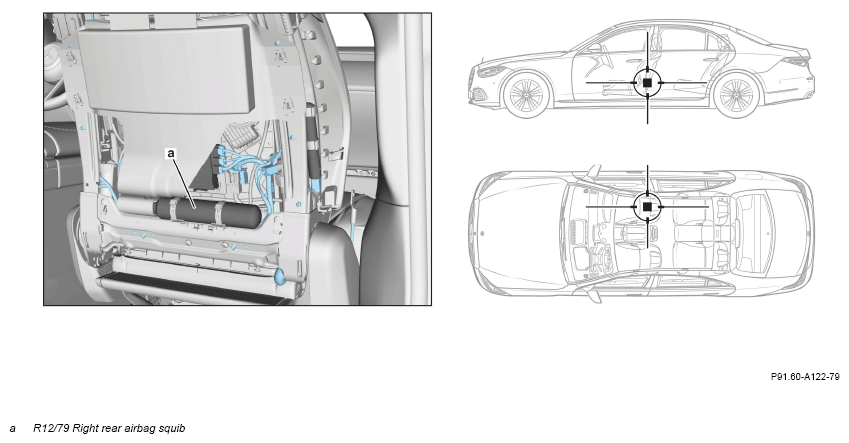

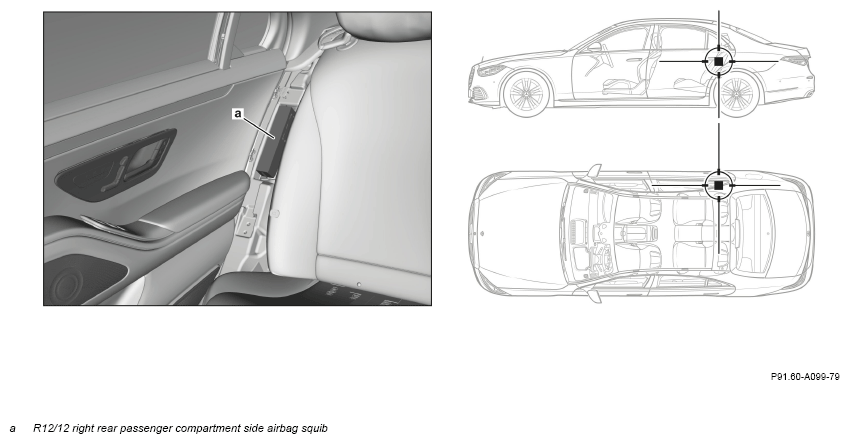

Location on right
 Courtesy of MERCEDES-BENZ USA
|

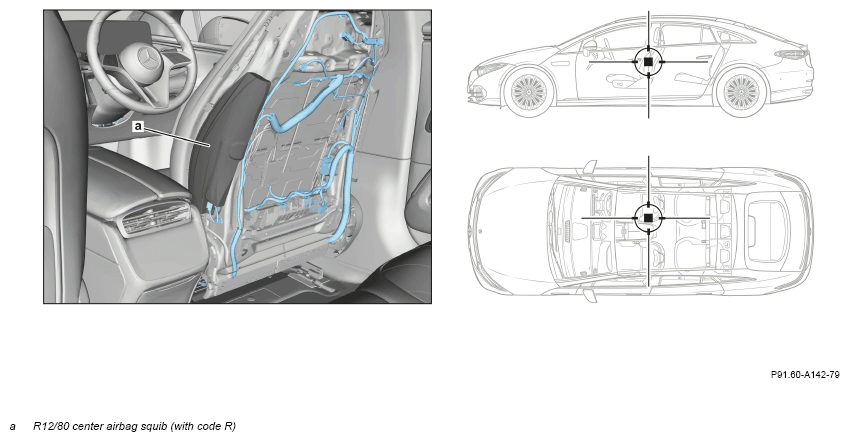

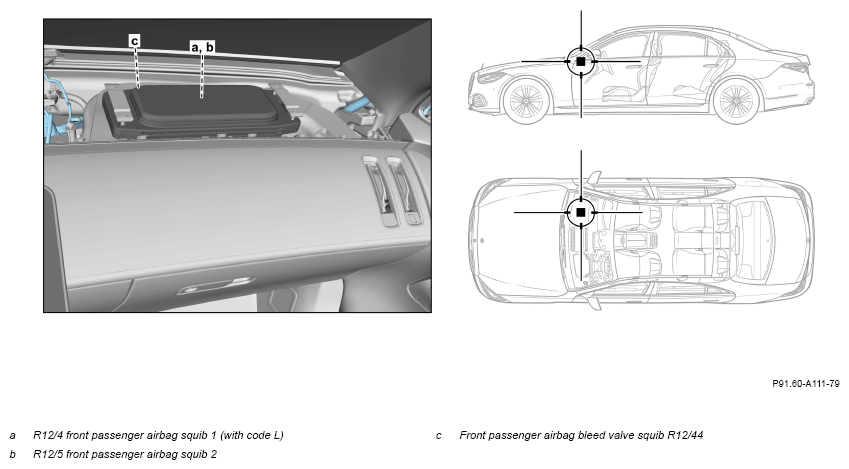

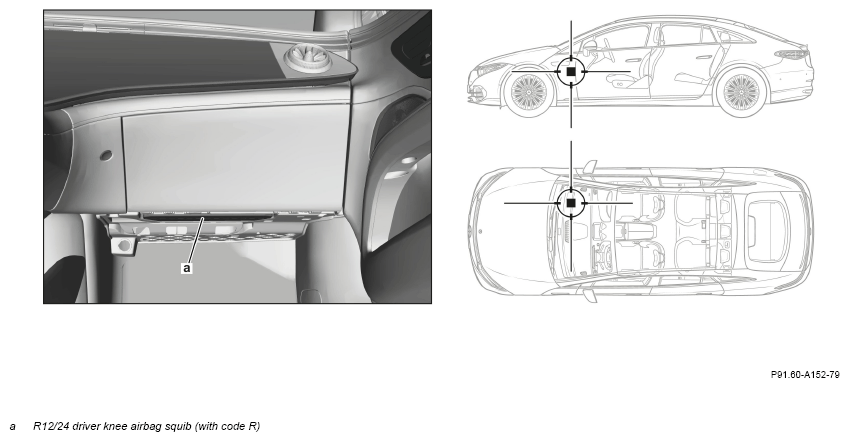

Location on model 223
 Courtesy of MERCEDES-BENZ USA
|
Location on model 223
 Courtesy of MERCEDES-BENZ USA
|

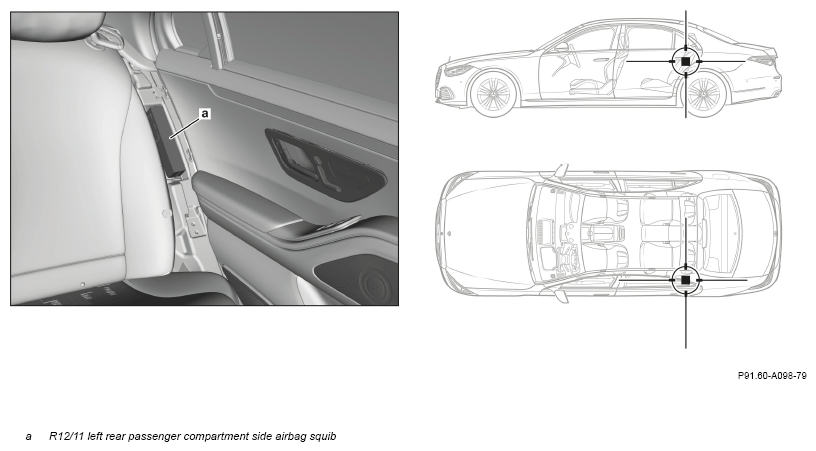

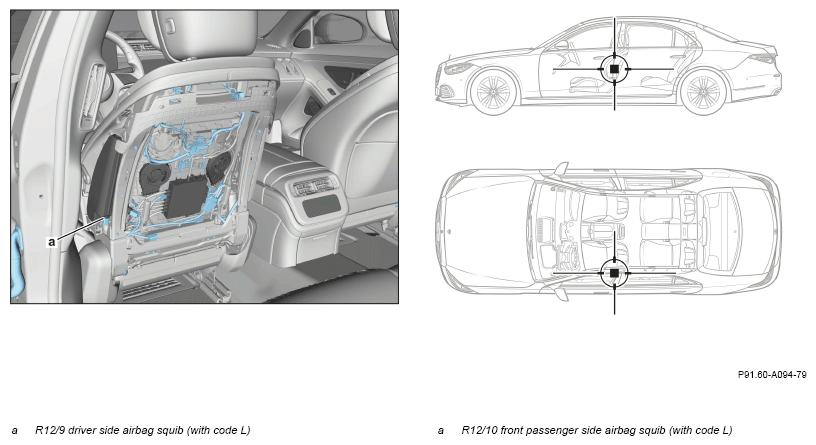

Location on left
 Courtesy of MERCEDES-BENZ USA
|
Location on right
 Courtesy of MERCEDES-BENZ USA
|
Location on model 223
 Courtesy of MERCEDES-BENZ USA
|

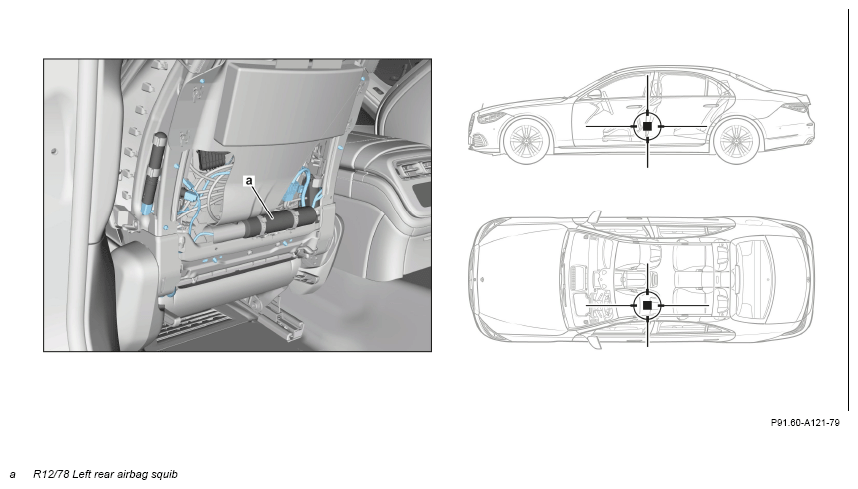

Location on left
 Courtesy of MERCEDES-BENZ USA
|

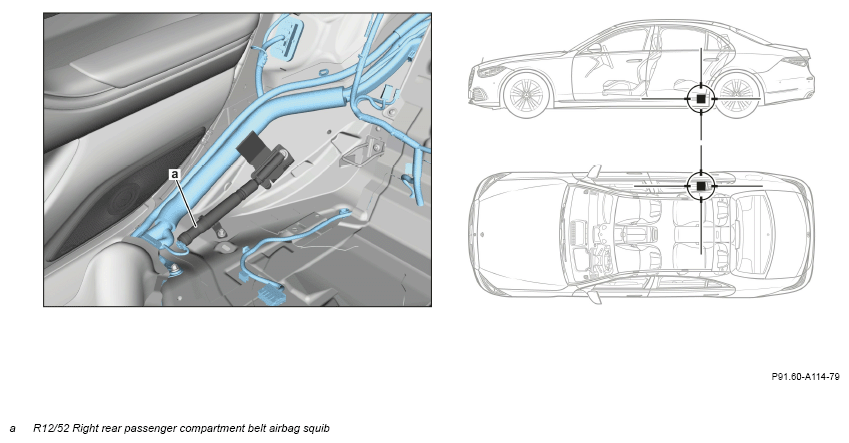

Location on right
 Courtesy of MERCEDES-BENZ USA
|
Location on model 223
 Courtesy of MERCEDES-BENZ USA
|
Location on model 223
 Courtesy of MERCEDES-BENZ USA
|
Location on model 223
 Courtesy of MERCEDES-BENZ USA
|
Location on model 223
 Courtesy of MERCEDES-BENZ USA
|
Location on model 223
