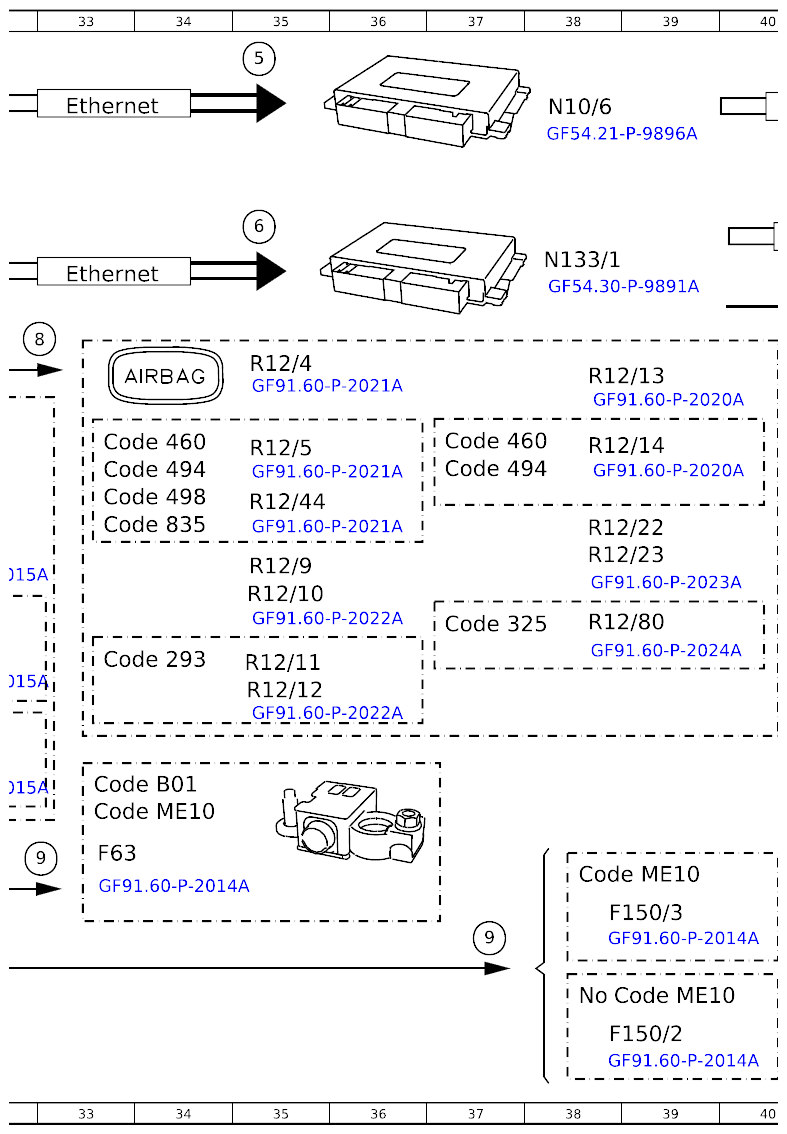

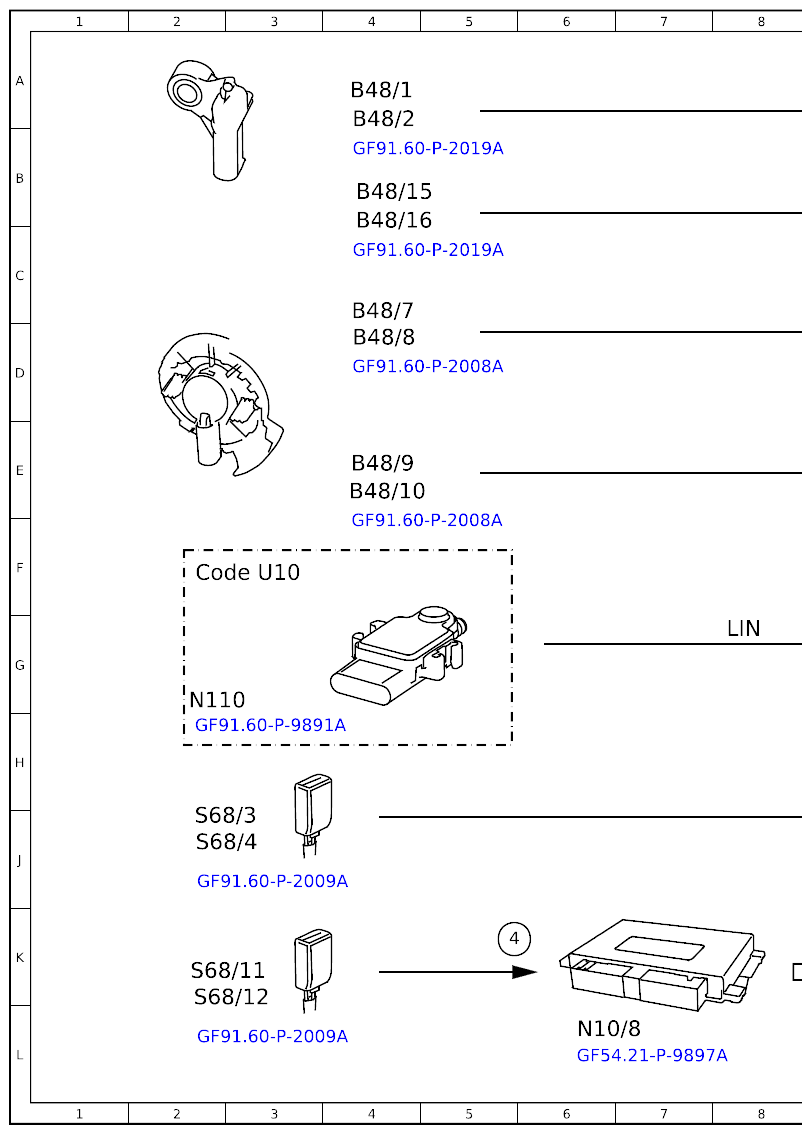

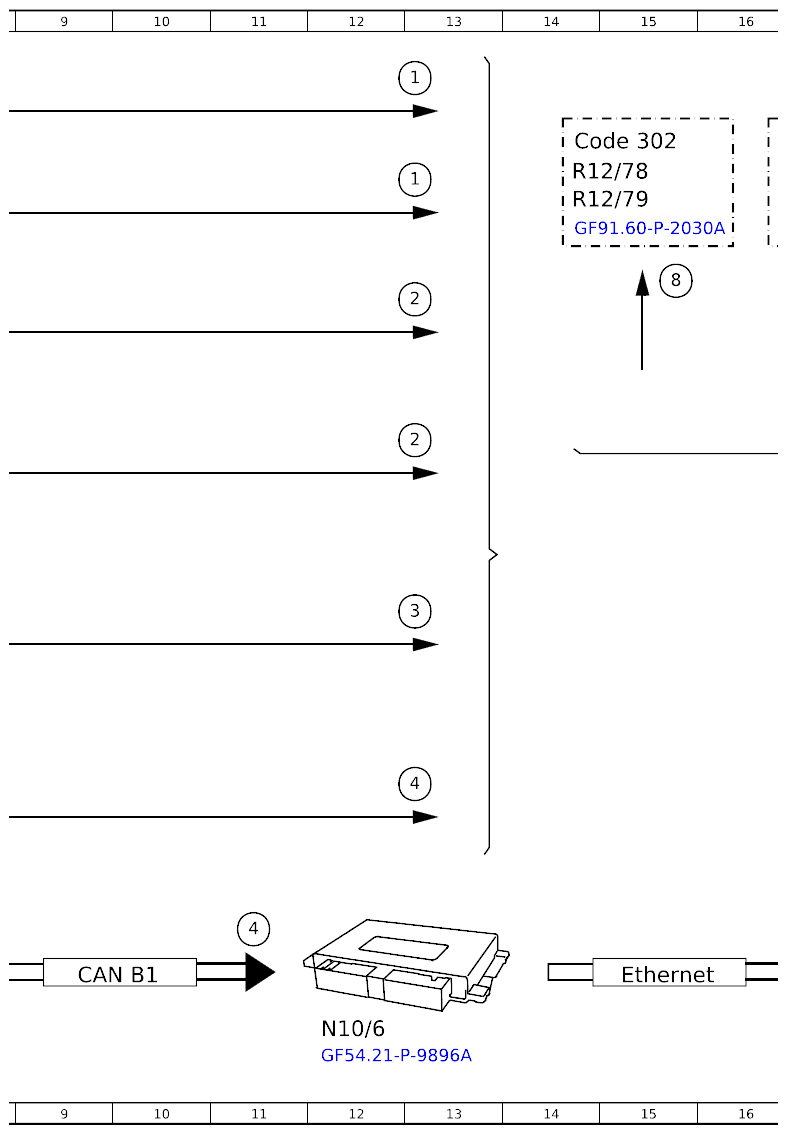

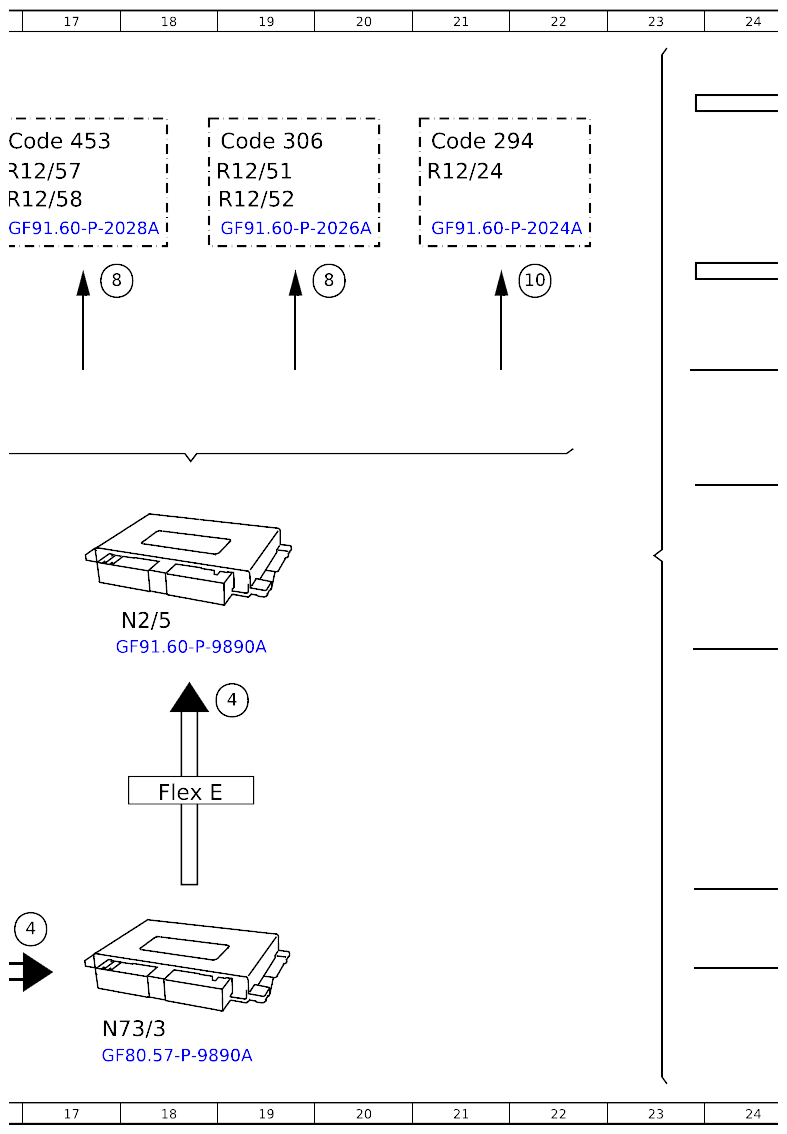

Function Schematic, Trigger Supplemental Restraint System - PE91.60-P-2501-97C
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Body acceleration sensor, signal | 13A |
| 10 | Squib, actuation | 22C |
| 11 | Instrument cluster warning message, actuation | 42B |
| 12 | Image data, signal | 42C |
| 2 | Pressure sensor, signal | 13C |
| 2 | Pressure sensor, signal | 12D |
| 3 | Front passenger seat occupied recognition, status | 13F |
| 4 | Seat belt buckle switch, status | 13H |
| 4 | Seat belt buckle switch, status | 5K |
| 4 | Seat belt buckle switch, status | 11J |
| 4 | Seat belt buckle switch, status | 17J |
| 4 | Seat belt buckle switch, status | 19G |
| 5 | Front passenger airbag indicator lamp, request | 27A |
| 5 | Front passenger airbag indicator lamp, request | 35A |
| 5 | Front passenger airbag indicator lamp, request | 42A |
| 6 | Instrument cluster message, request | 27C |
| 6 | Instrument cluster message, request | 35C |
| 8 | Squib, actuation | 25G |
| 8 | Squib, actuation | 15C |
| 8 | Squib, actuation | 17C |
| 8 | Squib, actuation | 20C |
| 8 | Squib, actuation | 32D |
| 8 | Squib, actuation | 29E |
| 9 | Pyrofuse, actuation | 33J |
| 9 | Pyrofuse, actuation | 37K |
| A40/18 | Instrument cluster display | 46C |
| B48/1 | Left frontal acceleration sensor | 4A |
| B48/10 | Right rear door pressure sensor | 4E |
| B48/15 | Left B-pillar acceleration sensor | 4B |
| B48/16 | Right B-pillar acceleration sensor | 4C |
| B48/2 | Right frontal acceleration sensor | 4A |
| B48/7 | Left front door pressure sensor | 4C |
| B48/8 | Right front door pressure sensor | 4D |
| B48/9 | Left rear door pressure sensor | 4E |
| CAN A1 | CAN 1 for telematics | 41C |
| CAN B1 | CAN 1 for vehicle interior | 40A |
| CAN B1 | CAN 1 for vehicle interior | 9K |
| Code 293 | Left and right rear side airbag | 33G |
| Code 294 | Knee airbag | 21B |
| Code 302 | Tubular airbag for rear-seat occupants | 14B |
| Code 306 | Belt airbag | 19B |
| Code 325 | Center airbag | 37G |
| Code 453 | Rear reclining seats | 16B |
| Code 460 | Canada version | 29G |
| Code 460 | Canada version | 29H |
| Code 460 | Canada version | 33E |
| Code 460 | Canada version | 37E |
| Code 494 | USA version | 29H |
| Code 494 | USA version | 29G |
| Code 494 | USA version | 33E |
| Code 494 | USA version | 37E |
| Code 498 | Japan version | 33E |
| Code 562 | Driver seat belt buckle with integrated tensioning function | 29H |
| Code 835 | South Korea version | 33F |
| Code B01 | 48V technology | 33H |
| Code ME10 | Hybrid vehicle | 38K |
| Code ME10 | Hybrid vehicle | 33J |
| Code ME10 | Hybrid vehicle | 38J |
| Code U10 | Front passenger seat with weight detection | 2F |
| Ethernet | Ethernet | 33C |
| Ethernet | Ethernet | 33A |
| Ethernet | Ethernet | 15K |
| F150/2 | Pre-fuse box | 39L |
| F150/3 | Pre-fuse box | 39K |
| F63 | Pyrofuse | 33J |
| Flex E | Chassis FlexRay | 25C |
| Flex E | Chassis FlexRay | 25A |
| Flex E | Chassis FlexRay | 18H |
| HSVL | High-speed video link | 41C |
| LIN | Local Interconnect Network | 8G |
| N10/6 | Front signal acquisition and actuation module control unit | 38A |
| N10/6 | Front signal acquisition and actuation module control unit | 12L |
| N10/8 | Rear signal acquisition and actuation module control unit | 6L |
| N110 | Front passenger weight classification control unit | 2G |
| N133/1 | Instrument cluster control unit | 38C |
| N2/5 | Supplemental restraint system control unit | 18G |
| N70 | Overhead control panel control unit | 45A |
| N73/3 | Electronic ignition switch control unit | 30C |
| N73/3 | Electronic ignition switch control unit | 30A |
| N73/3 | Electronic ignition switch control unit | 17L |
| R12/1 | Driver ETR [GUS] squib | 31E |
| R12/10 | Front passenger side airbag squib | 35F |
| R12/11 | Left rear side airbag squib | 35G |
| R12/12 | Right rear side airbag squib | 35G |
| R12/13 | Driver airbag squib 1 | 38D |
| R12/14 | Driver airbag squib 2 | 38E |
| R12/2 | Front passenger ETR [GUS] squib | 31E |
| R12/22 | Left window airbag squib | 38F |
| R12/23 | Right window airbag squib | 38F |
| R12/24 | Driver knee airbag squib | 21B |
| R12/26 | Driver belt force limiter | 31G |
| R12/27 | Front passenger belt force limiter | 31G |
| R12/4 | Front passenger airbag squib 1 | 35D |
| R12/44 | Front passenger airbag vent valve squib | 35E |
| R12/5 | Front passenger airbag squib 2 | 35E |
| R12/51 | Left rear belt airbag squib | 19B |
| R12/52 | Right rear belt airbag squib | 19B |
| R12/57 | Left rear seat cushion airbag squib | 17B |
| R12/58 | Right rear seat cushion airbag squib | 17B |
| R12/6 | Left rear emergency tensioning retractor squib | 31F |
| R12/69 | Refrigerant inerting squib | 26G |
| R12/7 | Right rear emergency tensioning retractor squib | 31F |
| R12/78 | Left rear airbag squib | 14B |
| R12/79 | Right rear airbag squib | 14B |
| R12/80 | Center airbag squib | 38G |
| R12/9 | Driver side airbag squib | 35F |
| R46 | Driver seat belt buckle/seat belt end-fitting tensioner squib | 31H |
| R46/1 | Front passenger seat belt buckle/seat belt end-fitting tensioner squib | 31H |
| S68/11 | Left rear seat belt buckle switch | 2K |
| S68/12 | Right rear seat belt buckle switch | 2K |
| S68/3 | Driver seat belt buckle switch | 2J |
| S68/4 | Front passenger seat belt buckle switch | 2J |
