Remove/Install Heat Mat On Backrest In Rear - AR91.30-P-0022S
Model 223
with code 872 (Left and right rear seat heating)
Model 223
with code 903 (Rear comfort seat heating)

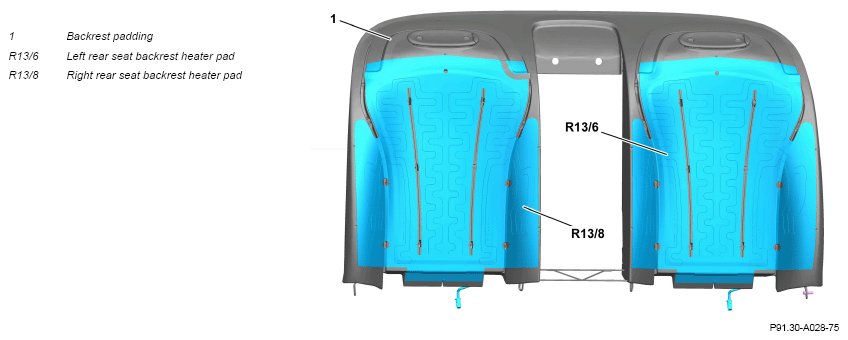

Shown with code 872 (Rear seat heating, left and right)
| Remove/install | |||
| 1 | Remove cover from seat backrest. | Model 223 with code 872 (Left and right rear seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) |
AR91.18-P-1870S |
| Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 903 (Rear comfort seat heating) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 903 (Rear comfort seat heating) except code 224 (Individual rear seats) |
AR91.18-P-1870SA | ||
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 2 | Heat rear seat backrest heat mat (R13/6, R13/8) and carefully detach from seat backrest padding (1). | ||
| 000 588 15 84 00 Heat gun | Do not exceed temperatures of 60°C. Otherwise the structure of the seat backrest padding (1) changes. |
WS54.00-P-0125B | |
| 3 | Guide electrical wiring harness of rear seat backrest heat mat (R13/6, R13/8) through seat backrest padding (1). | ||
| 4 | Install in the reverse order. |
