Remove/Install Frontal Acceleration Sensor - AR91.60-P-0750S

Model 223

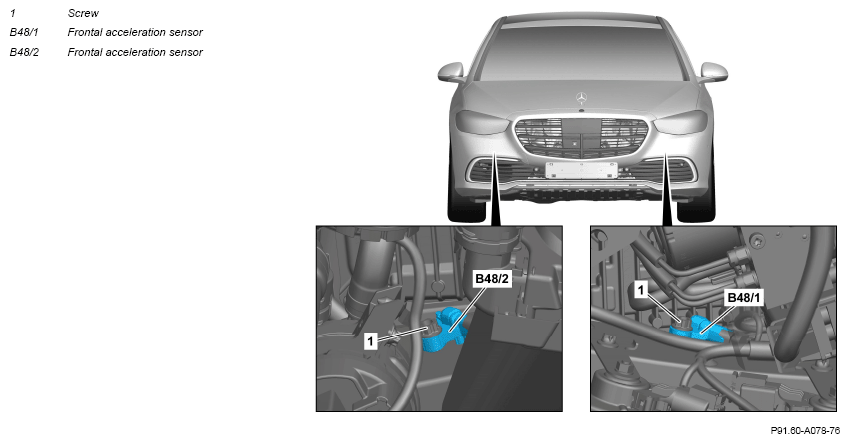

Fig 1: Frontal Acceleration Sensor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Disconnect ground line of battery of 12 V on-board electrical system.		AR54.10-P-0051S
2	Remove front engine compartment lining.		AR61.20-P-1105S
3	Disconnect electrical connector from frontal acceleration sensor (B48/1, B48/2).
4	Remove screw (1) and remove frontal acceleration sensor (B48/1, B48/2).	Screw/bolt, frontal acceleration sensor to bumper crossmember	*BA91.60-P-1007-01I
5	Install in the reverse order.

AIRBAG

Number	Designation		Model 223
BA91.60-P-1007-01I	Screw/bolt, frontal acceleration sensor to bumper crossmember	Nm	10
