Remove/Install Front Seat Control Unit - AR91.29-P-1550S
Model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Connect diagnostic system and perform commissioning on driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | When replacing driver seat control unit (N32/1) or front passenger seat control unit (N32/2). | |

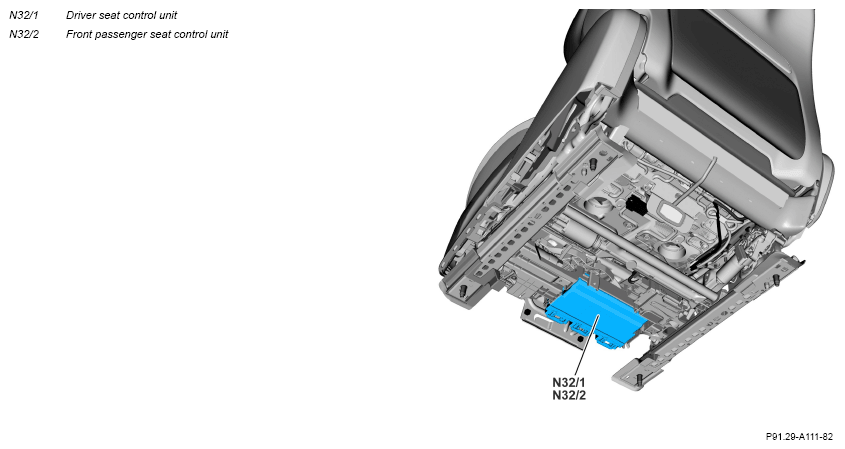

| AD00.00-P-2000-06FR | |||
| 2 | Move front seat all the way up and to the rear. | ||
| 3 | Disconnect ground line of battery of 12 V onboard electrical system. | AR54.10-P-0051S | |
| 4 | Remove fabric cover from seat adjustment unit. | ||
| 5 | Disconnect electrical connectors from driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | ||
| 6 | Release and remove driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | ||
| 7 | Install in the reverse order. |
