Remove/Install Backrest In Rear - AR91.12-P-1713S

Model 223

except code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

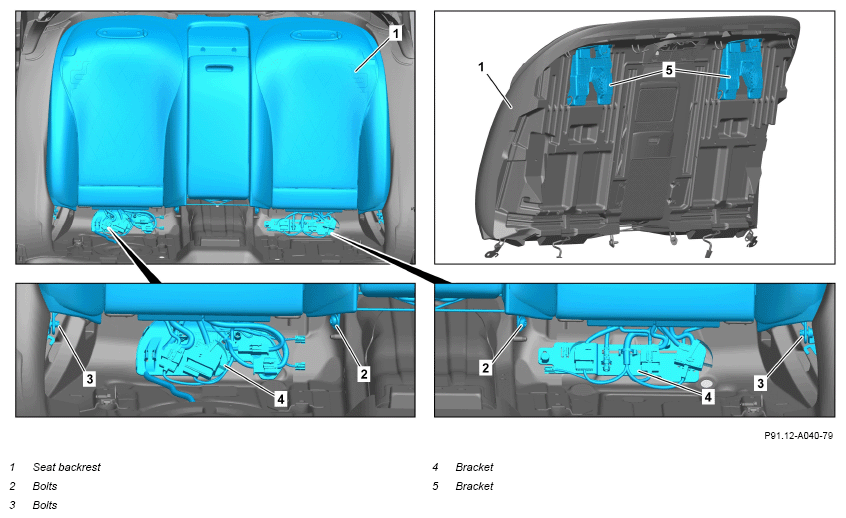

G16192733

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove head restraints in rear passenger compartment.		AR91.16-P-1770S
2	Remove rear seat cushion padding.		AR91.12-P-1022S
3	Remove screw/bolts (2).	Bolt, backrest to body	*BA91.12-P-1003-03L
4	Remove screw/bolts (3).	Bolt, backrest to body	*BA91.12-P-1003-03L
5	Unclip holders (4) with electric lines.
6	Disconnect electrical connectors from holders (4).	The number of electrical connectors can vary depending on the equipment variant.
7	Extend holders (5) on seat backrest (1) upwards.	Ensure that the holders (5) are seated correctly in the rear panel.
8	Guide right and left seat belts behind backrest (1).
9	Pull out center seat belt and remove seat backrest (1).	Carefully remove backrest (1) from vehicle. Otherwise components of the vehicle may be damaged.
		Helper required.
10	Install in the reverse order.

REAR SEATS

Number	Designation		Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BA91.12-P-1003-03L	Bolt, backrest to body	Nm	35	35
