Remove/Install Backrest - AR91.10-P-1061S
Model 223
| Remove/install | |||
| 1 | Remove respective front seat. | AR91.10-P-1000S | |
| 2 | Remove seat backrest trim. | AR91.10-P-1912SA | |
| Model 223 except code 735 (Additional scope of trim elements) | |||
| Model 223 with code 735 (Additional scope of trim elements) | AR91.10-P-1912S | ||
| 3 | Remove rear outer trim from seat frame. | AR91.10-P-1201S | |
| 4 | Remove rear inner trim from seat frame. | AR91.10-P-1202S | |

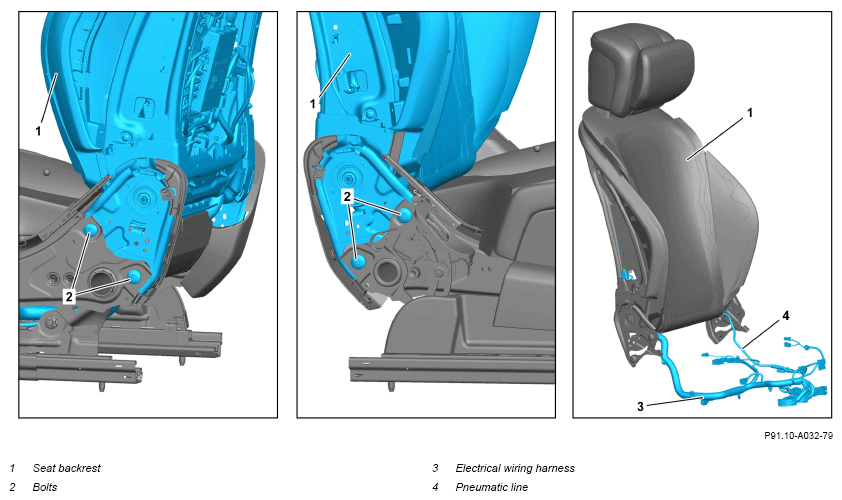

| 5 | Remove screw/bolts (2). | *BA91.10-P-1002-01S | |
| 6 | Remove seat backrest (1). | Place seat backrest (1) on a clean surface. Otherwise, the seat backrest (1) will be damaged. |
|
| 7 | Disconnect electrical connectors from electrical wiring harness (3). | ||
| 8 | Expose electrical wiring harness (3) in seat adjustment unit and guide out of seat adjustment unit. | Ensure that electrical wiring harness (3) is routed and secured without any chafing. Otherwise damage may occur. |
|
| 9 | Disconnect and expose pneumatic line (4) at connecting point on underside of seat cushion padding. | Model 223 with code 432 (Dynamic seats left and right) | |
Check for chafe-free routing and attachment of pneumatic line (4). Otherwise damage may occur. |
|||
| 10 | Install in the reverse order. |
FRONT SEATS
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA91.10-P-1002-01S | Bolt, backrest to seat frame | Nm | 50 |
