Remove/Install Pilot Bushing Of Drive Unit - AR08.10-P-0026-01EWO

Transmission 725.1

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation				Transmission 725.1
BA27.10-P-1034-04H	Screw, pilot bushing to rotor	M10	Stage 1	Nm	55
BA27.10-P-1034-04H	Screw, pilot bushing to rotor	M10	Stage 2	∠°	90

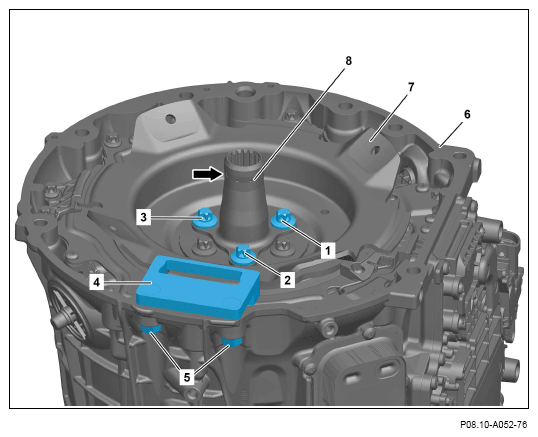

Fig 1: Identifying Counterholder (725 589 03 40 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51 11

Remove

Position counterholder (4) on drive unit (6) as shown.
Attach counterholder (4) with nuts (5).
Remove screws (1, 2, 3) of centering flange (8) from rotor (7).
Remove centering flange (8) from rotor (7).
Replace centering flange (8) every time the engine and the transmission are disconnected from each other.

Install
Attach centering flange (8) to rotor (7) and tighten screws (1, 2, 3) slightly by hand.
Replace centering flange (8).
Tighten screws (1, 2, 3) in numerical order to torque stage 1.
Tighten screws (1, 2, 3) in numerical order to tightening angle stage 2.

Courtesy of MERCEDES-BENZ USA
Remove nuts (5) from counterholder (4).
Remove counterholder (4) from drive unit (6).
Grease pilot bushing (8) on plastic (arrow).
