Detach/Attach Rotor On Drive Plate - AR08.10-P-0023-01EWO
Transmission 725.1
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A |
TORQUE CONVERTER
| Number | Designation | Transmission 725.0/1 | |||
|---|---|---|---|---|---|
| BA27.20-P-1001-01D | Screw, torque converter/rotor to drive plate/star-shaped drive plate | Angled threaded connection | Stage 1 | Nm | 3 |
| Stage 2 | Nm | 30 | |||
| Stage 3 | ∠° | 90 | |||
Remove

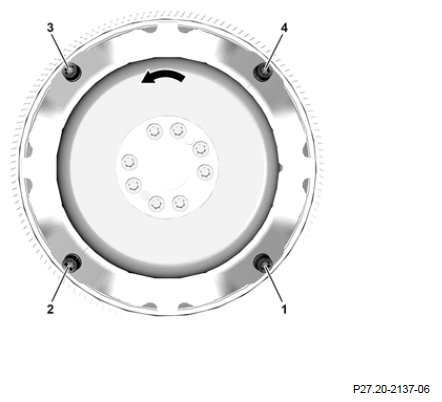

- Unscrew screws/bolts (1 to 4) opposite direction of engine rotation (arrow) through opening in housing.
Aid of helper required.
Turn engine further in direction of engine rotation at center bolt of crankshaft using
box wrench.
Transmission 725.1 with engine 254
Transmission 725.1 with engine 256
Transmission 725.1 with engine 654
Turn engine further in direction of engine rotation at vibration damper of crankshaft using
If center bolt or vibration damper is not accessible,
↓
turn engine further at rotor using a wide screwdriver.
- Pry rotor off drive plate using
- Check threaded inserts in drive plate for loose fitting and damage; replace drive plate if necessary.
- Check whether rotor is lying flat against drive plate.
If necessary, press rotor onto drive plate using
- Tighten bolts (1 to 4) in numerical sequence
.
Check
Install
