Electrical Machine, Component Description - GF08.10-P-2001A

Model 223

Courtesy of MERCEDES-BENZ USA

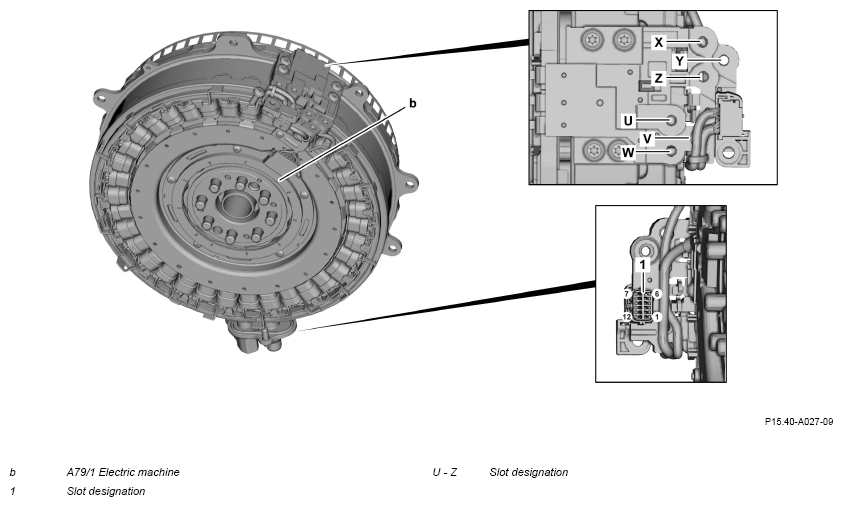

Depiction valid for model 223 with engine M176 48V with transmission D725.1

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

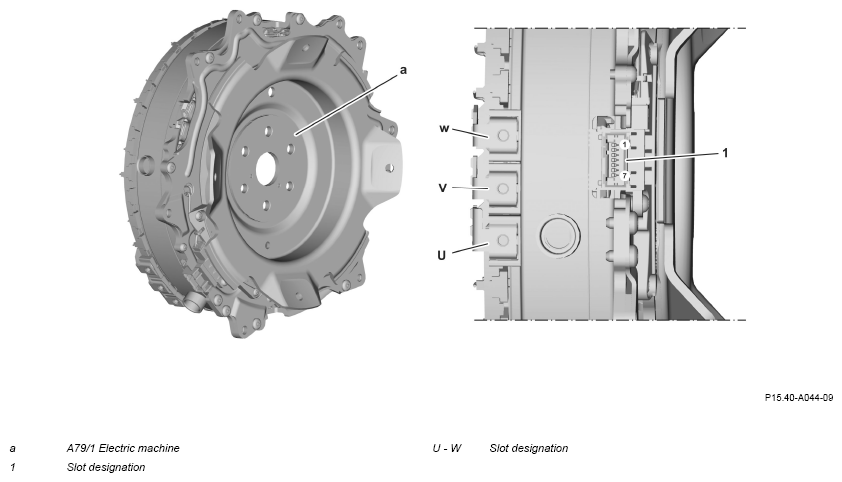

Depiction valid for model 223 with engine M256.9 48V

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

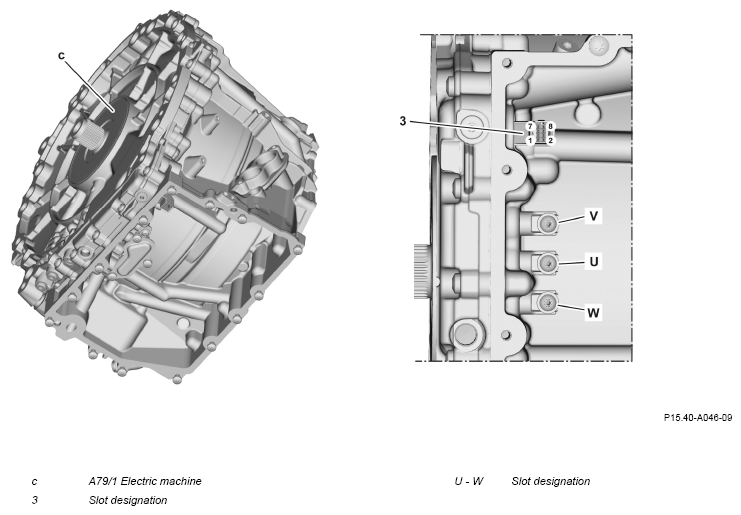

Depiction valid for model 223 with M256 HV transmission D725.1

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

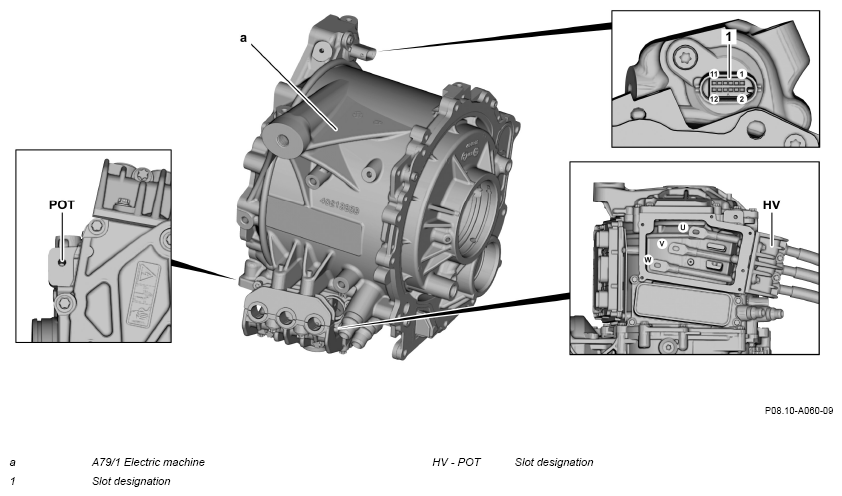

Depiction valid for model 223 with engine M177, code ME10

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

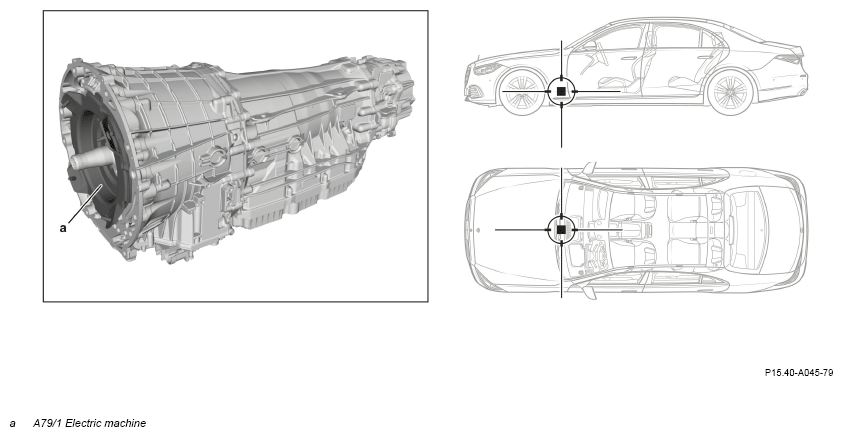

Arrangement in model 223 with engine M176 48V, transmission D725.1

Courtesy of MERCEDES-BENZ USA

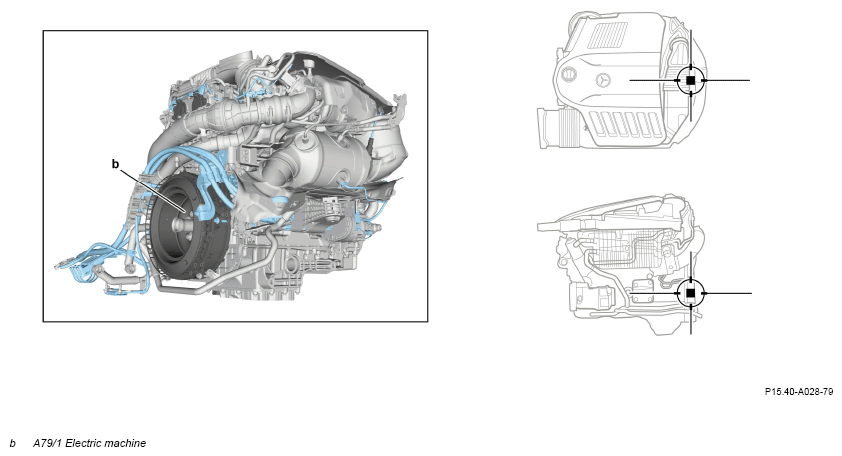

Arrangement in model 223 with engine M256.9 48V

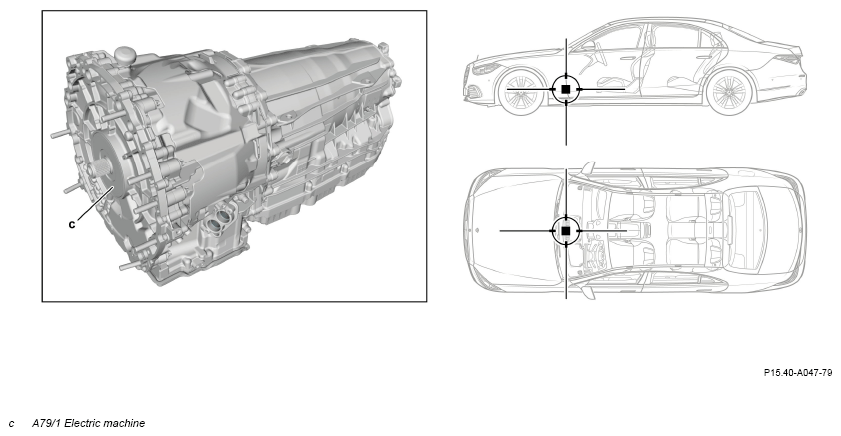

Arrangement in model 223 with engine M256, HV transmission D725.1

Courtesy of MERCEDES-BENZ USA

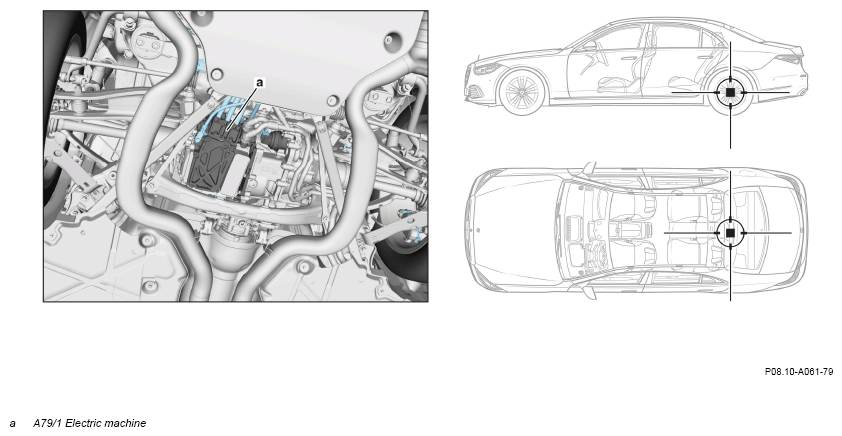

Arrangement in model 223 with engine M177 with code ME10
