Coolant Switchover Valve, Component Description - GF08.50-P-0008A
Model 223
 Courtesy of MERCEDES-BENZ USA
|

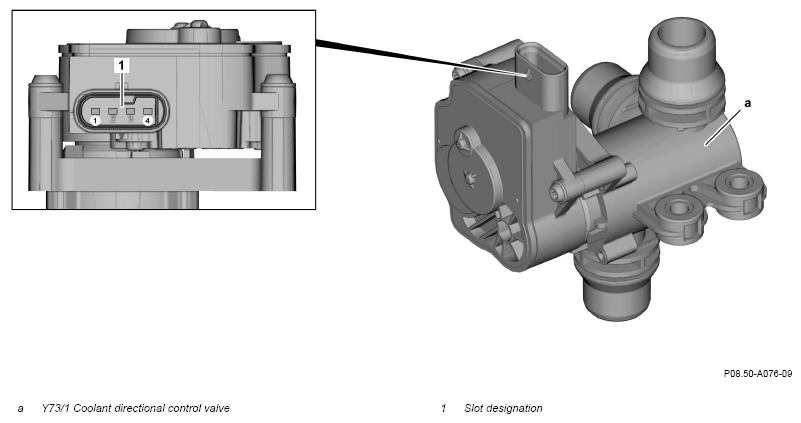

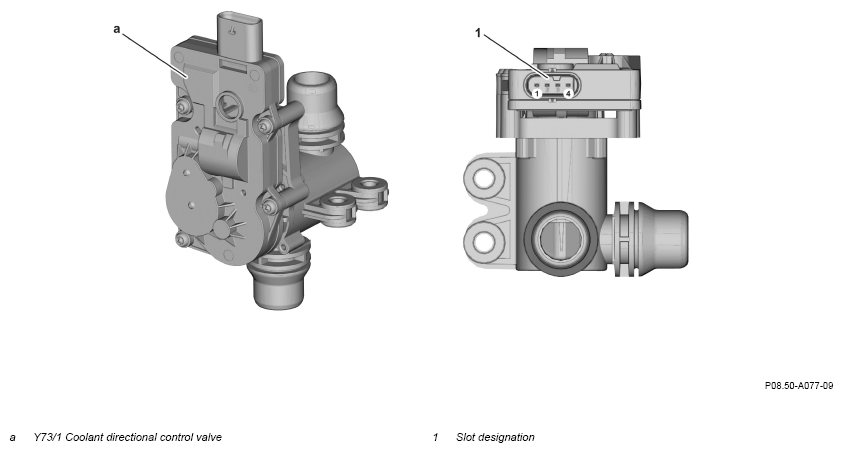

Depiction valid for model 223 with engine M176
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

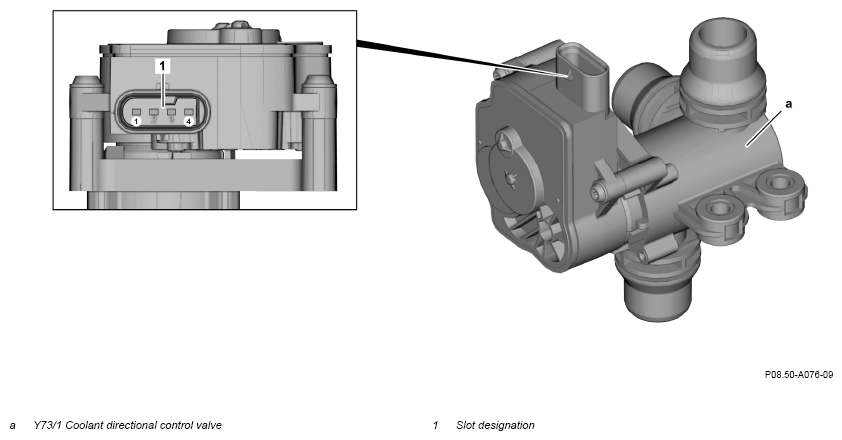

Depiction valid for model 223 with engine M256
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

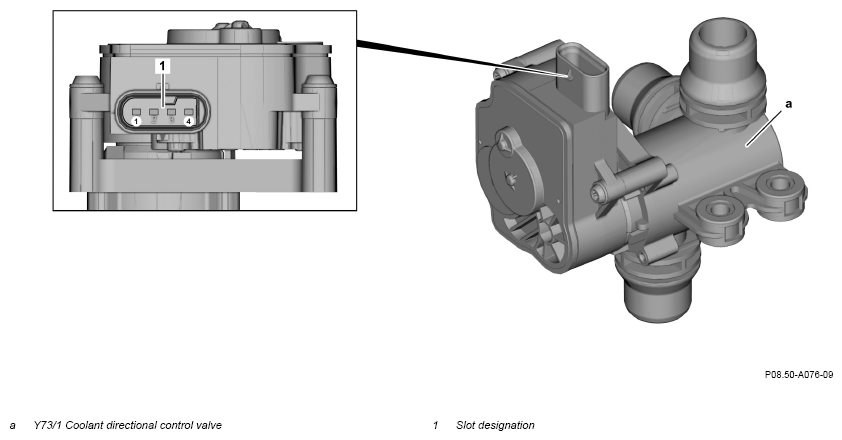

Depiction valid for model 223 with engine M656
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Depiction valid for model 223 with engine M279
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Depiction valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

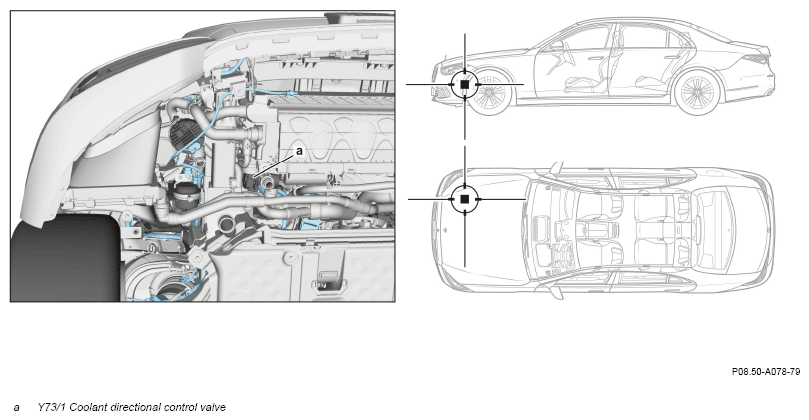

Arrangement in model 223 with engine M176
 Courtesy of MERCEDES-BENZ USA
|

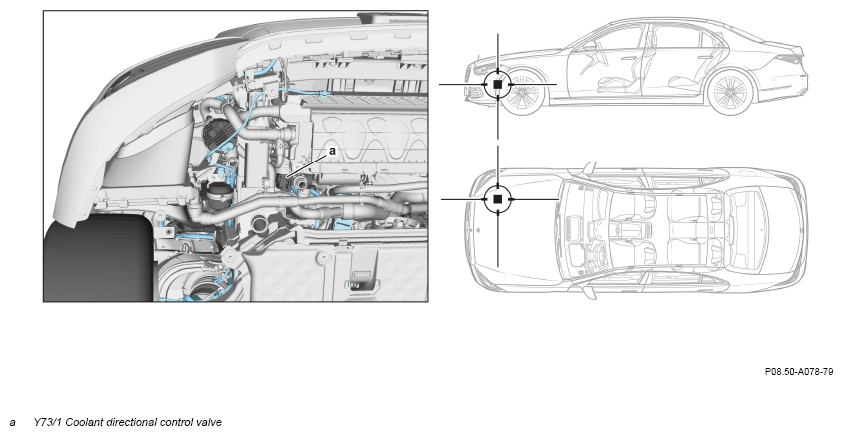

Arrangement in model 223 with engine M279
 Courtesy of MERCEDES-BENZ USA
|

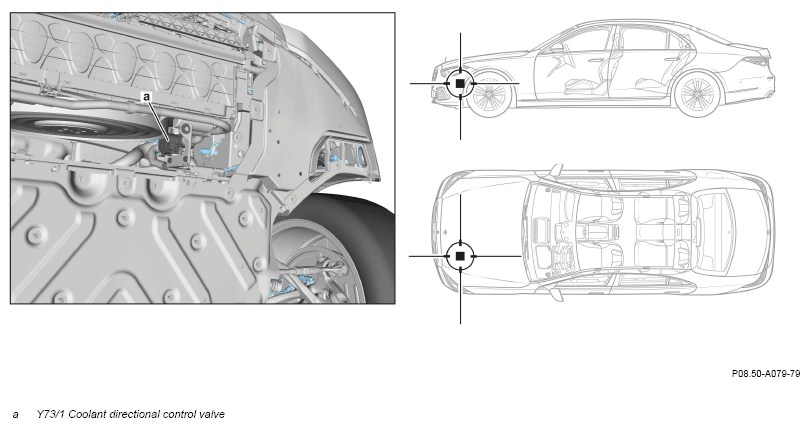

Arrangement in model 223 with engine M256
 Courtesy of MERCEDES-BENZ USA
|

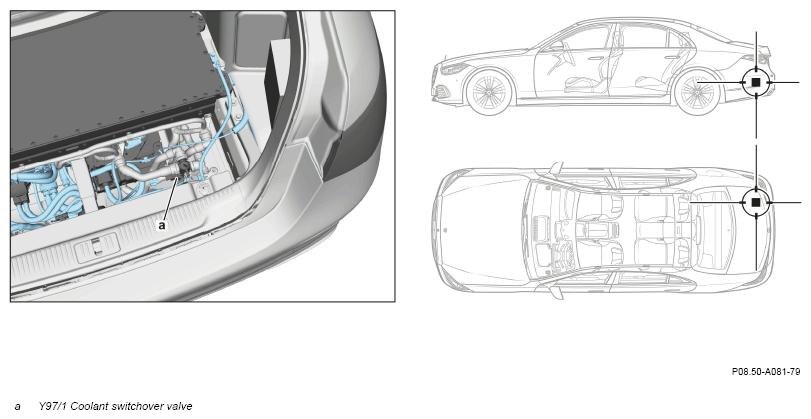

Arrangement in model 223 with engine M656
Courtesy of MERCEDES-BENZ USA

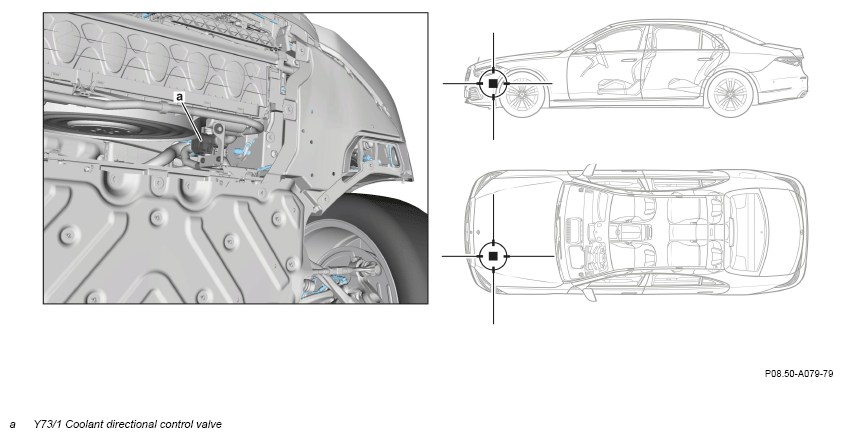

Arrangement in model 223 with engine M256
