Component Description For Power Electronics Control Unit - GF08.20-P-1001A

Model 223

Courtesy of MERCEDES-BENZ USA

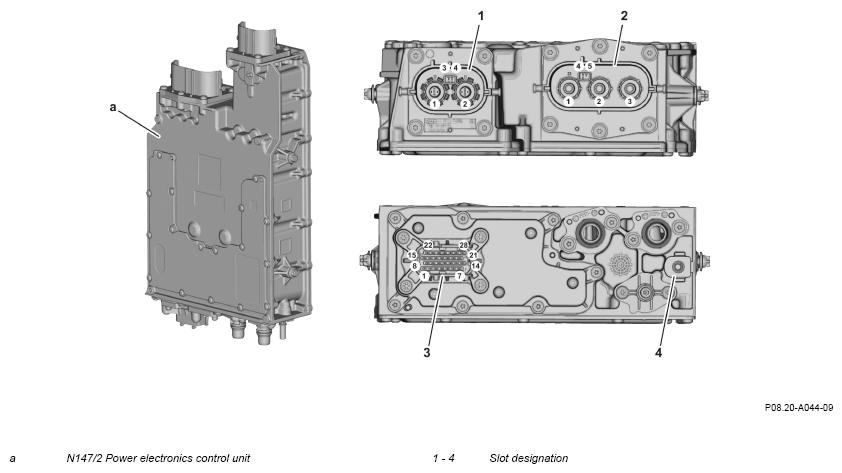

Depiction valid for model 223 with code ME10

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

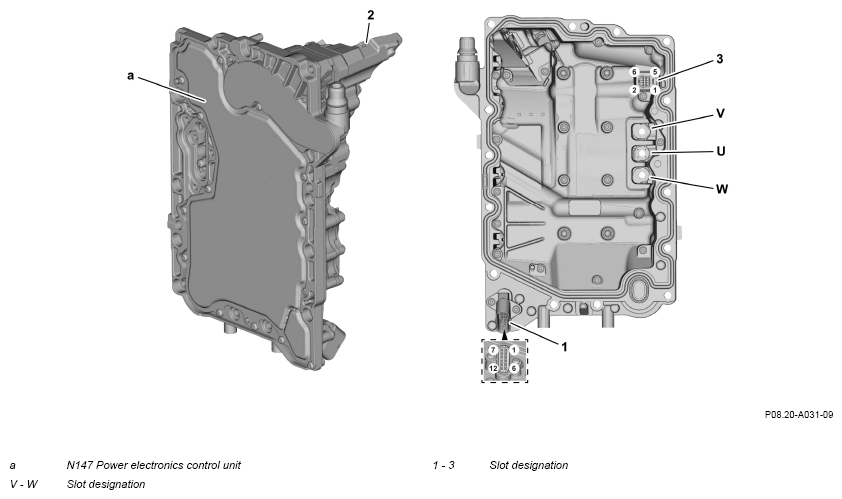

Depiction valid for model 223 with engine M177, code ME10

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

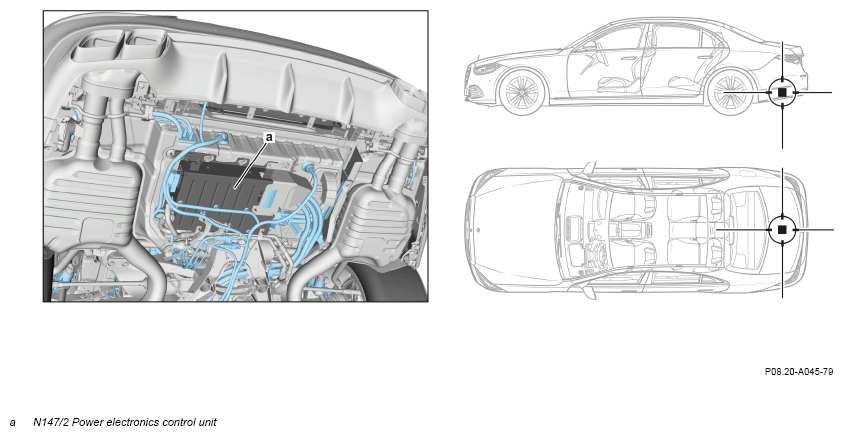

Arrangement in model 223 with code ME10

Courtesy of MERCEDES-BENZ USA

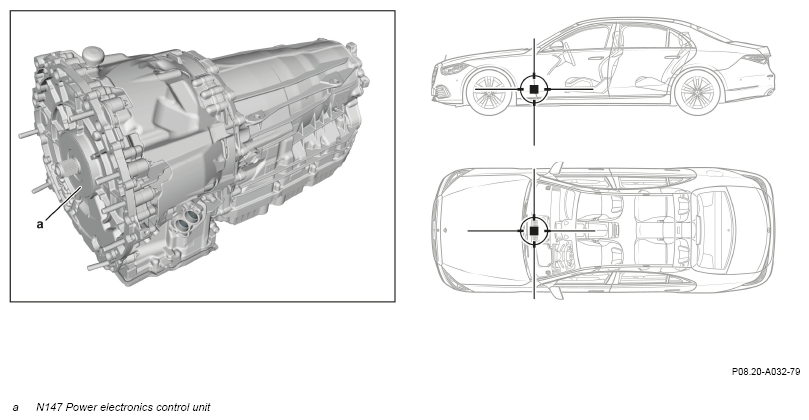

Arrangement in model 223 with engine M177, code ME10
