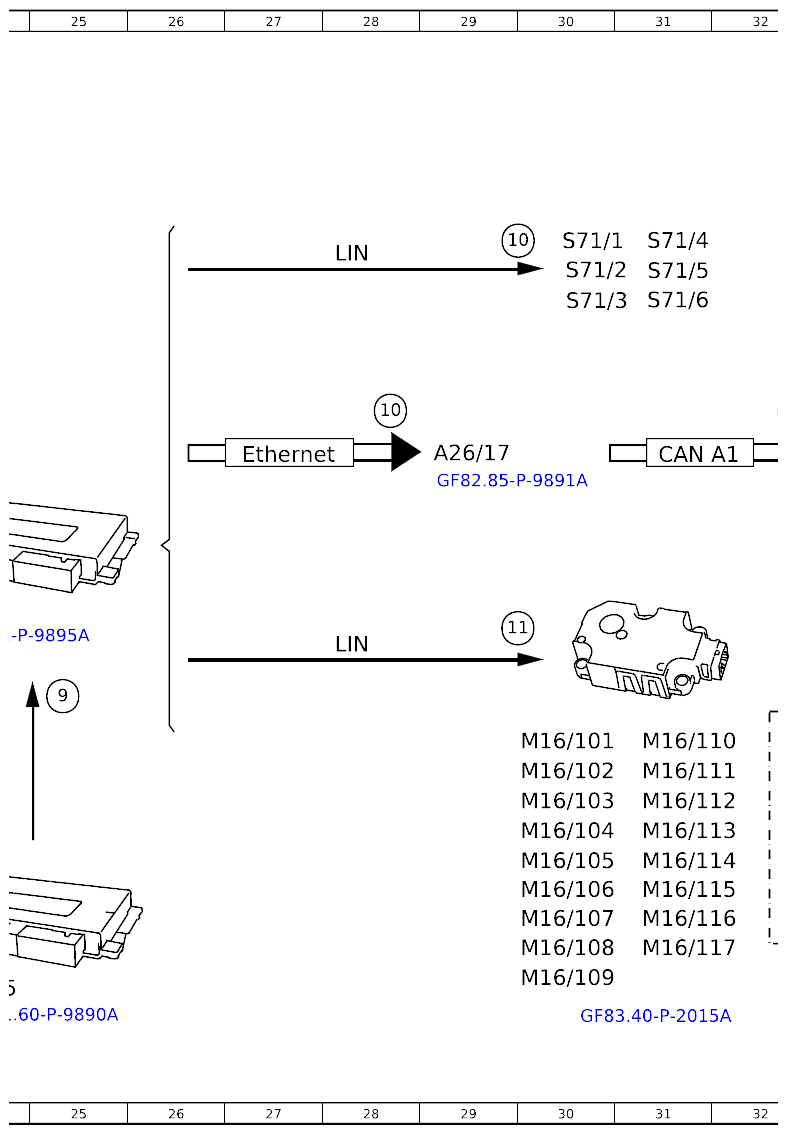

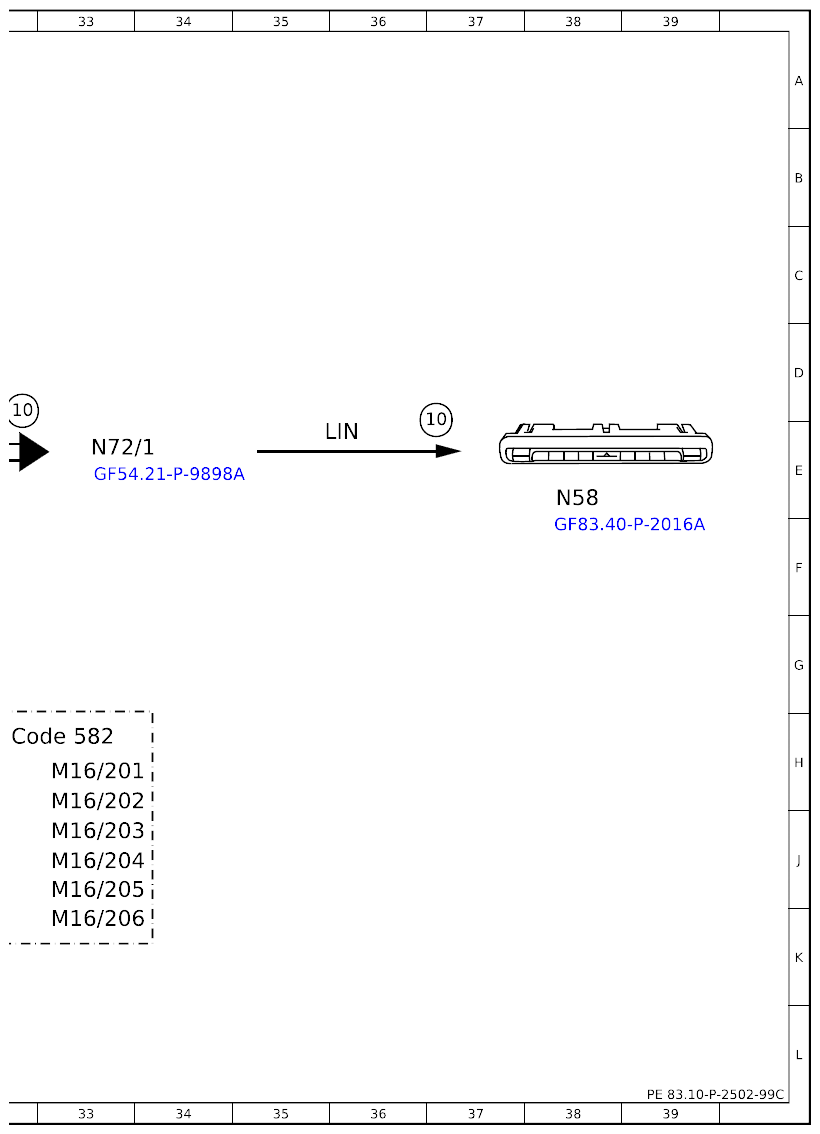

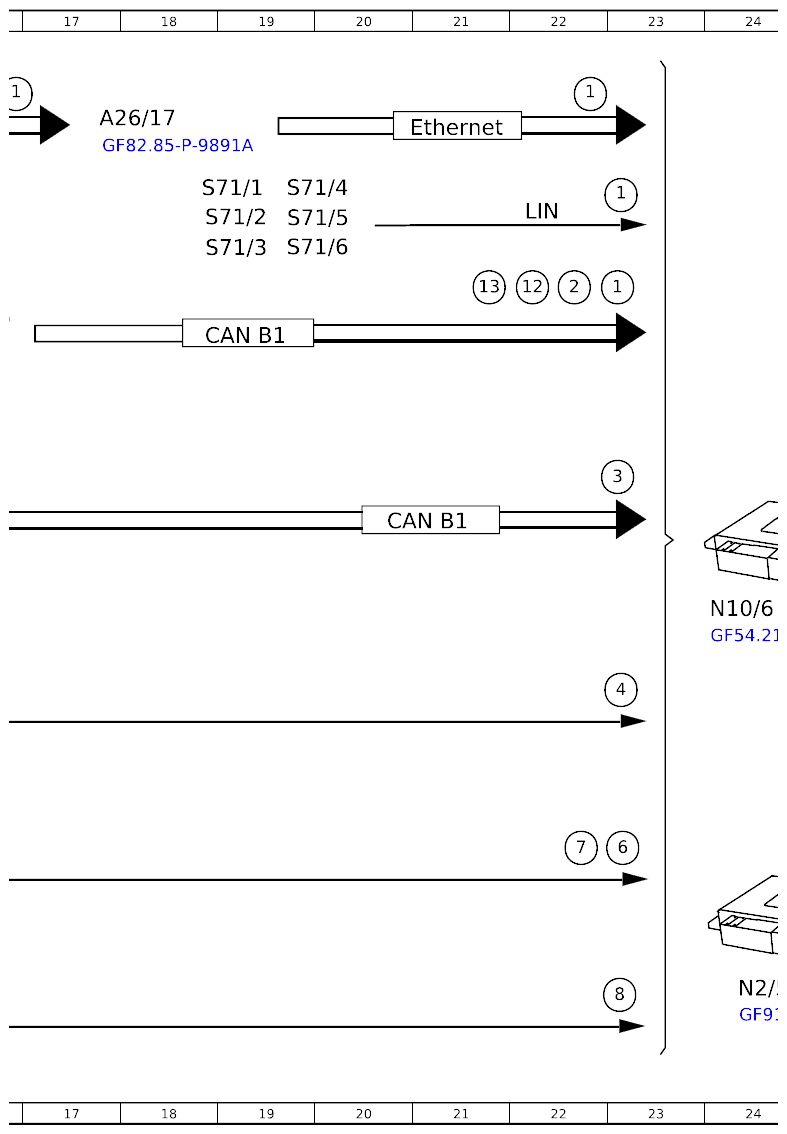

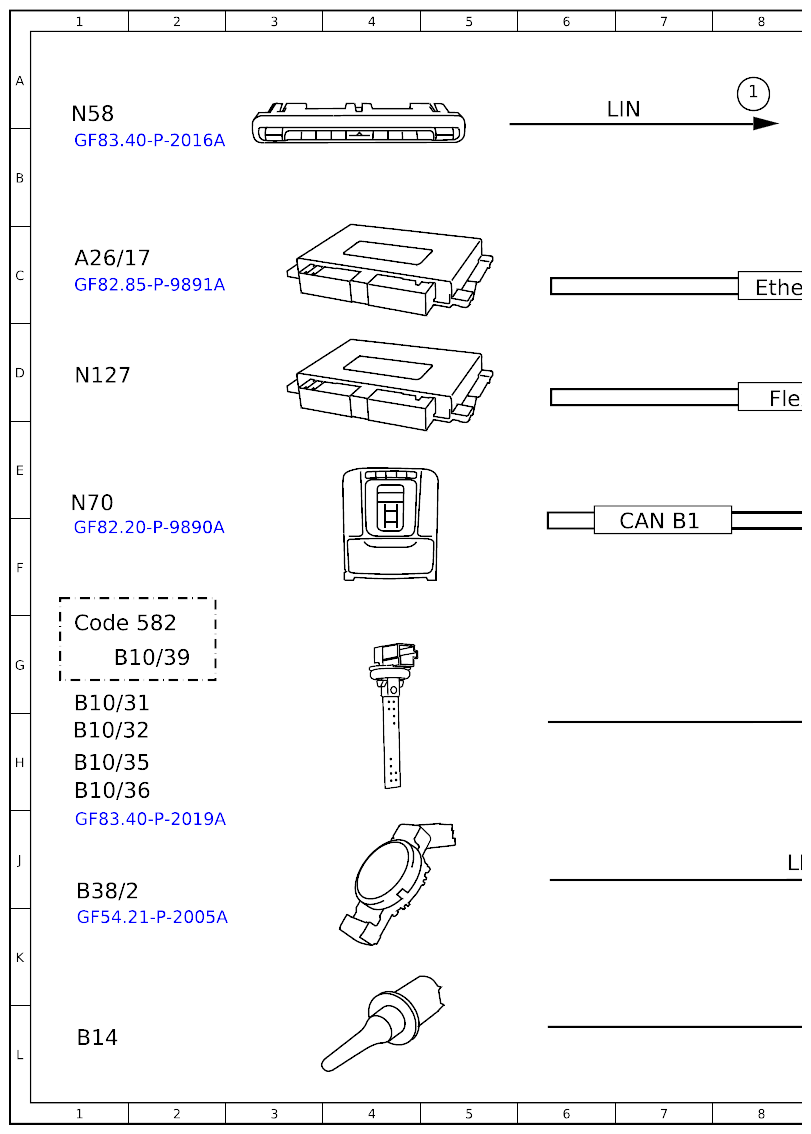

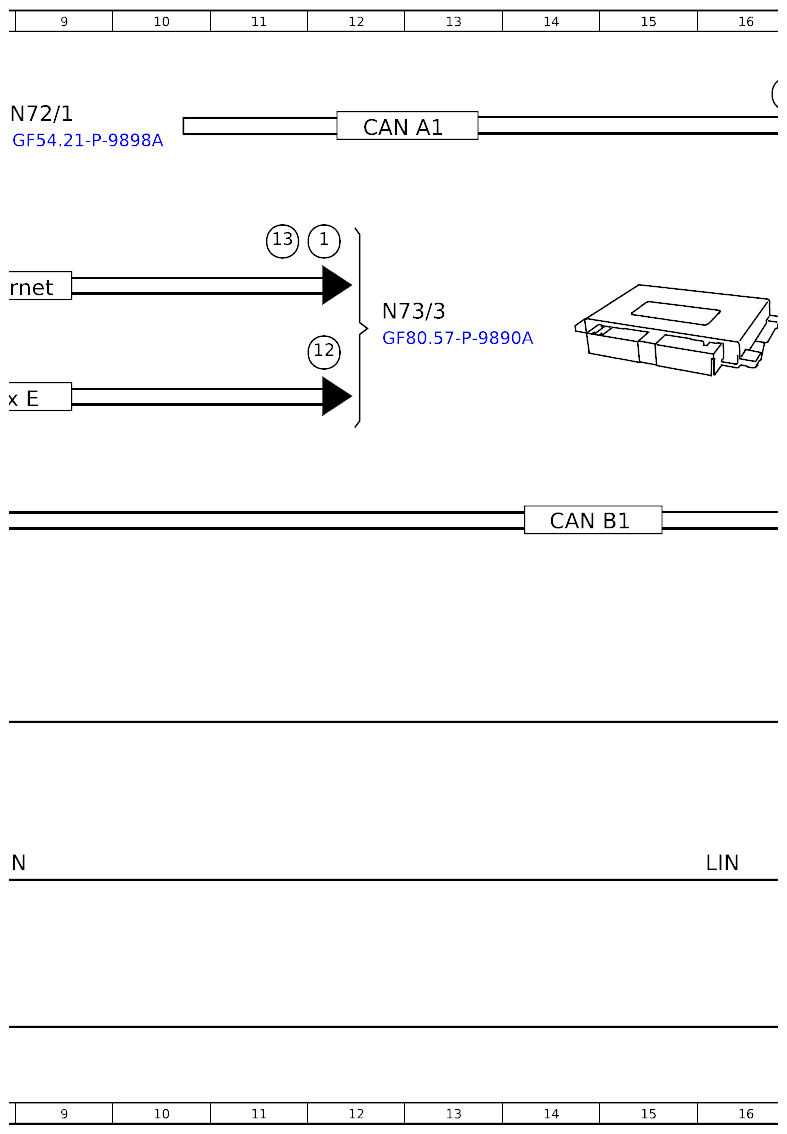

Function Schematic For Actuating Air Distribution Flaps - PE83.10-P-2501-97C
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 22C |
| 1 | Operation, signal | 22A |
| 1 | Operation, signal | 8A |
| 1 | Operation, signal | 16A |
| 1 | Operation, signal | 23B |
| 1 | Operation, signal | 12C |
| 10 | Air conditioning, status | 36D |
| 10 | Air conditioning, status | 32D |
| 10 | Air conditioning, status | 28D |
| 10 | Air conditioning, status | 29C |
| 11 | Actuator motors, actuation | 30G |
| 2 | Circuit 15, status | 22C |
| 3 | Interior temperature, signal | 22E |
| 4 | Air outlet temperature sensor, signal | 23G |
| 6 | Dew point temperature, signal | 23J |
| 7 | Solar radiation, signal | 22J |
| 8 | Outside temperature, signal | 23K |
| 9 | Crash, signal | 25G |
| A26/17 | Head unit | 1C |
| A26/17 | Head unit | 18A |
| A26/17 | Head unit | 29E |
| B10/31 | Left side air vent air outlet temperature sensor | 1G |
| B10/32 | Right side air vent air outlet temperature sensor | 1H |
| B10/35 | Left footwell vent air outlet temperature sensor | 1H |
| B10/36 | Right footwell vent air outlet temperature sensor | 1H |
| B10/39 | Left rear air vent air outlet temperature sensor | 1G |
| B14 | Outside temperature sensor | 1L |
| B38/2 | Rain/light sensor with additional functions | 1J |
| CAN A1 | CAN 1 for telematics | 12B |
| CAN A1 | CAN 1 for telematics | 31E |
| CAN B1 | CAN 1 for vehicle interior | 19D |
| CAN B1 | CAN 1 for vehicle interior | 7F |
| CAN B1 | CAN 1 for vehicle interior | 14F |
| CAN B1 | CAN 1 for vehicle interior | 20F |
| Code 582 | Air conditioning in rear | 32H |
| Code 582 | Air conditioning in rear | 1G |
| Ethernet | Ethernet | 8C |
| Ethernet | Ethernet | 21B |
| Ethernet | Ethernet | 27E |
| Flex E | Chassis FlexRay | 8D |
| LIN | Local Interconnect Network | 7A |
| LIN | Local Interconnect Network | 22B |
| LIN | Local Interconnect Network | 8J |
| LIN | Local Interconnect Network | 16J |
| LIN | Local Interconnect Network | 36E |
| LIN | Local Interconnect Network | 28G |
| LIN | Local Interconnect Network | 28C |
| M16/101 | Right defroster vent flap actuator motor | 30H |
| M16/102 | Upper right blending air flap actuator motor | 30H |
| M16/103 | Right center air outlet flap actuator motor | 30H |
| M16/104 | Lower right blending air flap actuator motor | 30J |
| M16/105 | Right footwell flap actuator motor | 30J |
| M16/106 | Rear passenger compartment air vent flaps actuator motor | 30J |
| M16/107 | Rear passenger compartment footwell flaps actuator motor | 30K |
| M16/108 | Right side outlet flap actuator motor | 30K |
| M16/109 | Upper left blending air flap actuator motor | 30K |
| M16/110 | Left defroster vent flap actuator motor | 31H |
| M16/111 | Left side outlet flap actuator motor | 31H |
| M16/112 | Left center air outlet flap actuator motor | 31H |
| M16/113 | Left footwell flap actuator motor | 31J |
| M16/114 | Lower left blending air flap actuator motor | 31J |
| M16/115 | Rear blend air flap actuator motor | 31J |
| M16/116 | Ram air flap actuator motor | 31K |
| M16/117 | Fresh air/air recirculation flap actuator motor | 31K |
| M16/201 | Left side air vent flap rear climate control actuator motor | 33H |
| M16/202 | Right side air vent flap rear climate control actuator motor | 33H |
| M16/203 | Left rear air vent rear climate control actuator motor | 33J |
| M16/204 | Right rear air vent rear climate control actuator motor | 33J |
| M16/205 | Left footwell flap rear climate control actuator motor | 33J |
| M16/206 | Right footwell flap rear climate control actuator motor | 33K |
| N10/6 | Front signal acquisition and actuation module control unit | 24G |
| N127 | Drivetrain control unit | 1D |
| N2/5 | Supplemental restraint system control unit | 24K |
| N58 | Rear air conditioning operating unit | 1A |
| N58 | Rear air conditioning operating unit | 38E |
| N70 | Overhead control panel control unit | 1E |
| N72/1 | Upper control panel control unit | 9A |
| N72/1 | Upper control panel control unit | 33E |
| N73/3 | Electronic ignition switch control unit | 12C |
| S71/1 | Left front center air vent button | 19B |
| S71/1 | Left front center air vent button | 30C |
| S71/2 | Right front center air vent button | 19B |
| S71/2 | Right front center air vent button | 30C |
| S71/3 | Left center rear air vent button | 19C |
| S71/3 | Left center rear air vent button | 30C |
| S71/4 | Right center rear air vent button | 19B |
| S71/4 | Right center rear air vent button | 31C |
| S71/5 | Left front side air vent button | 19B |
| S71/5 | Left front side air vent button | 31C |
| S71/6 | Right front side air vent button | 19C |
| S71/6 | Right front side air vent button | 31C |
