Rear Air Conditioning Refrigerant Shutoff Valve, Component Description - GF83.50-P-3008A

Model 223

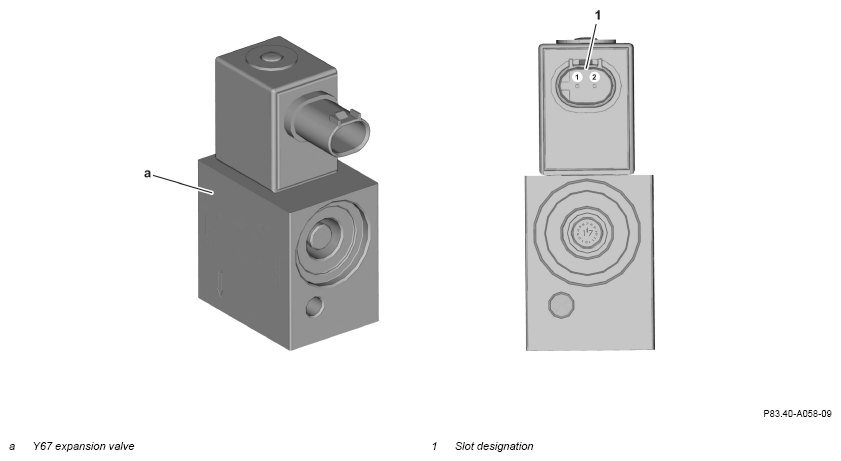

G16232634Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Rear Air Conditioning Refrigerant Shutoff Valve/Expansion Valve Components Location - Model 223

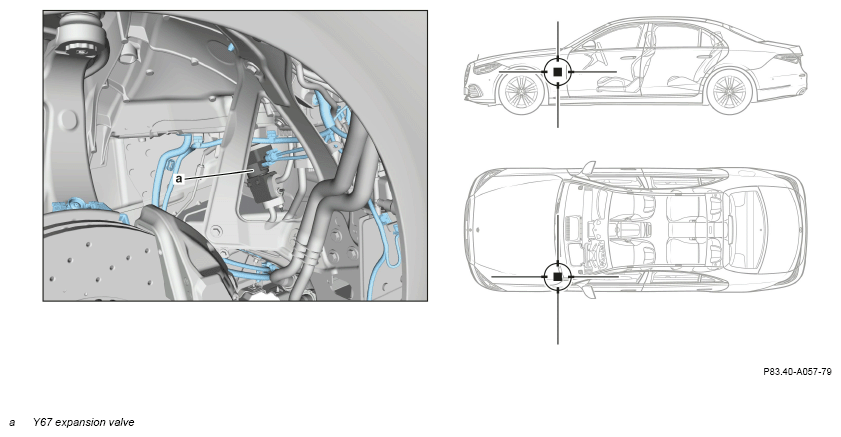

G16232635Courtesy of MERCEDES-BENZ USA

Location
