Heat Exchanger Temperature Sensor, Component Description - GF83.57-P-2134A

Model 223

Courtesy of MERCEDES-BENZ USA

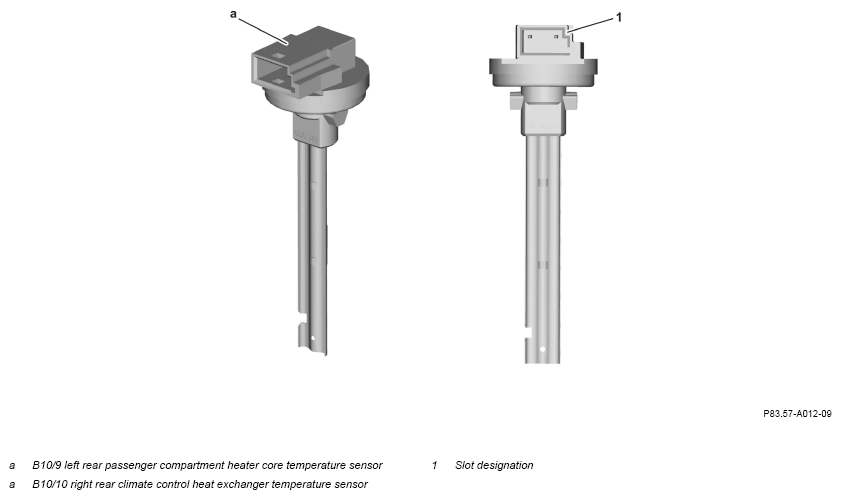

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Location on left, model 223

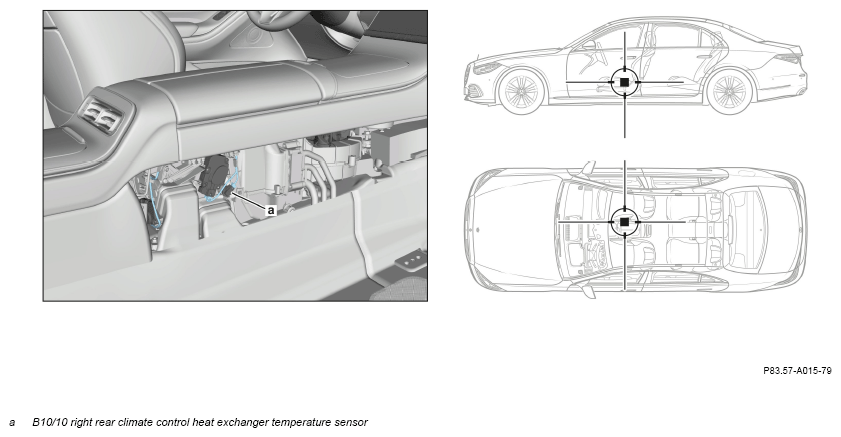

Fig 1: Heat Exchanger Temperature Sensor Components Location - Model 223 (Shown On Right Rear)

Courtesy of MERCEDES-BENZ USA

Location on right, model 223
