Fragrance System, Basic Function - GF83.80-P-9900A
Model All (CAR)
with code P21 (Air quality package)

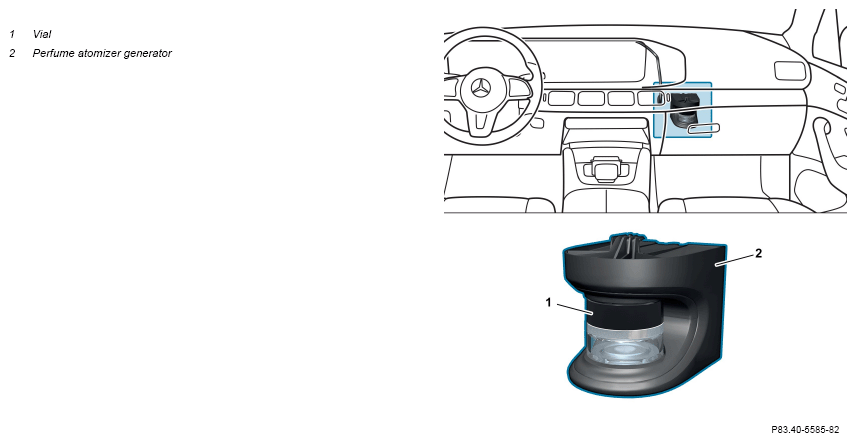

Example illustration of fragrance system
Overview
This document contains information on:
- General
- Function requirements
- Function
General
Using the fragrance system can enrich the vehicle interior air with different fragrances. The fragrance system is controlled via the climate control.
The flacon (1) with the liquid fragrance is located in a holder in the glove compartment and is stored safely in the event of shocks or accidents.
Function requirements
- Circuit 15 ON
- Climate control switched on
- Flacon (1) inserted
- Glove compartment CLOSED
- Perfume atomization activated
Function
A fan in the fragrance system generates its own air flow. This flows over the surface of the fragrance and becomes enriched with fragrance molecules. The air then flows through an opening in the vehicle interior and diffuses there.
The fragrance is timed. After approx. 5 min it switches off and on again. Due to the timing, the vehicle occupants do not get used to the fragrance and so the fragrance remains effective.
When the glove compartment is opened, the fragrance system switches off, the flacon lighting switches on and the flacon (1) changes from the operating position to the removal position.
