Defroster Flap Actuator Motor, Component Description - GF83.10-P-2195A

Model 223

Courtesy of MERCEDES-BENZ USA

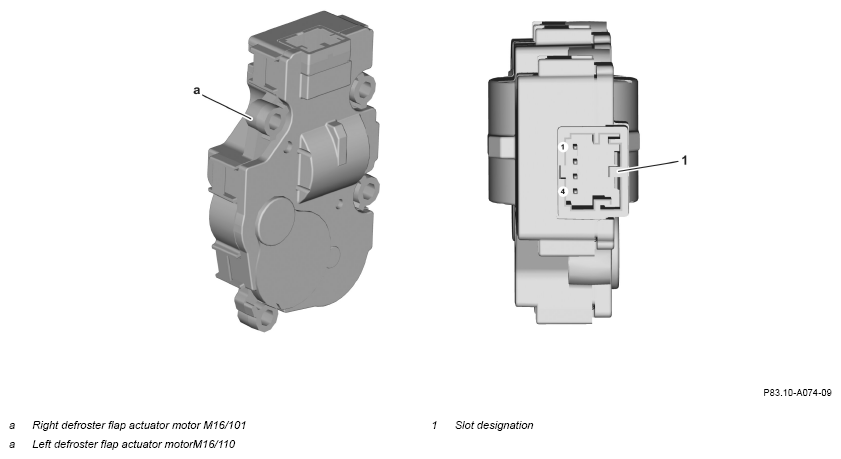

The numbers on the pins indicate the pin numbering of the slots.

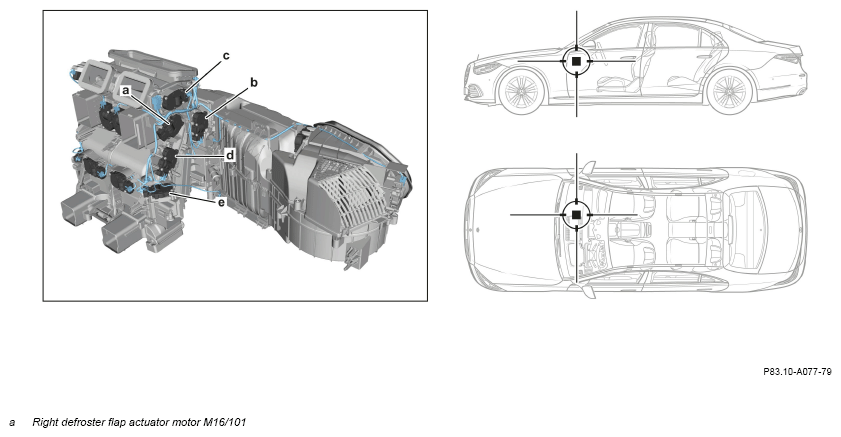

Fig 1: Right Defroster Flap Actuator Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on right

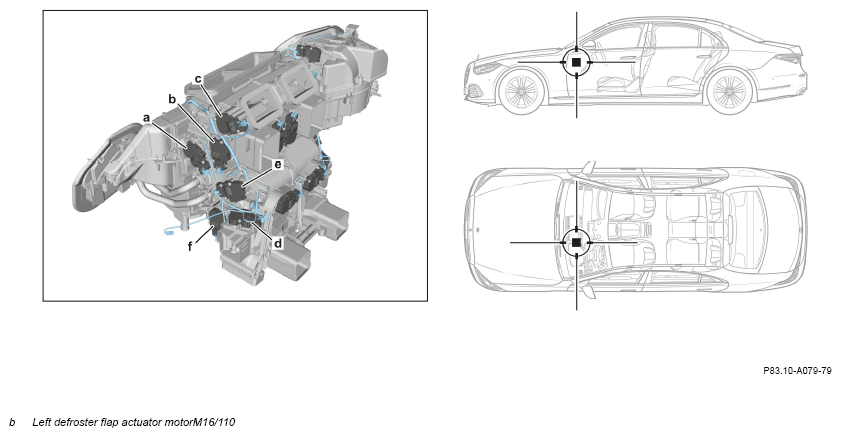

Fig 2: Left Defroster Flap Actuator Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on left
