Component Description For Electric Refrigerant Compressor - GF83.55-P-2110A

Model 223

Courtesy of MERCEDES-BENZ USA

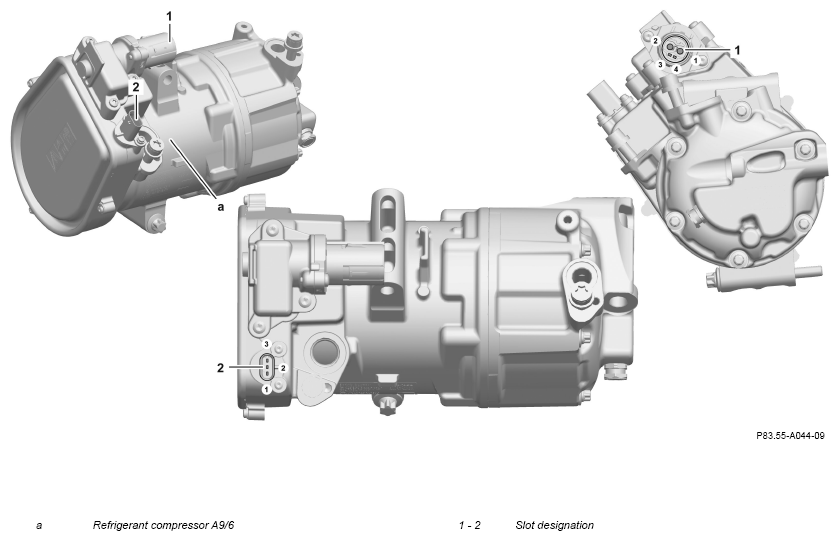

Illustration valid for model 223 with engine M256, M176

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

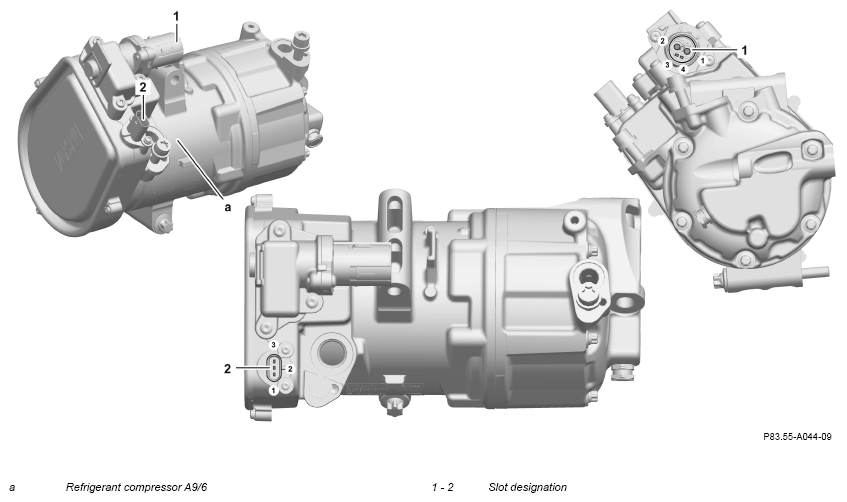

Illustration valid for model 223 with engine M177 code ME10

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

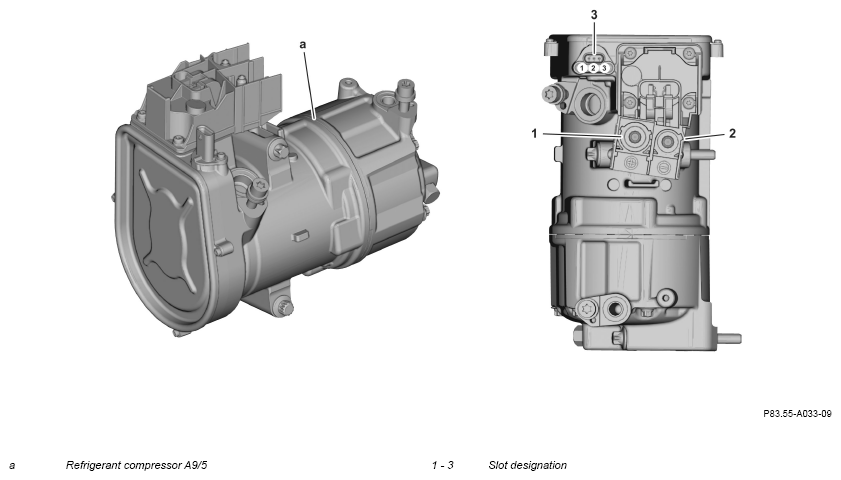

Image valid for model 223 with engine M254

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with engine M256 code ME10

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

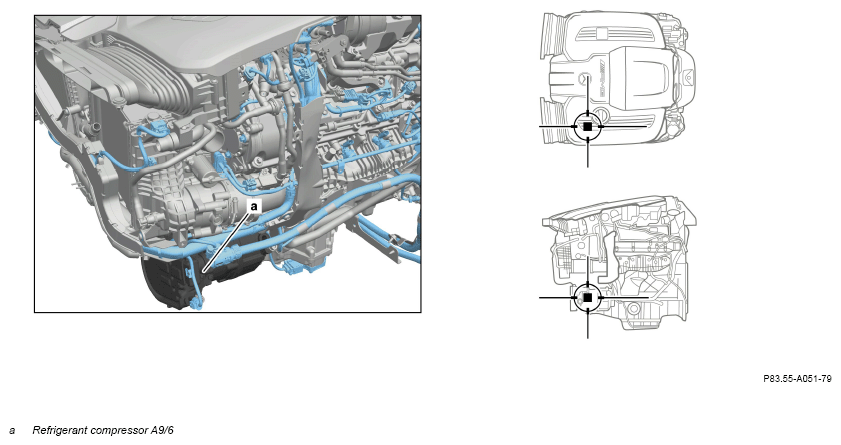

Arrangement in model 223 with engine M176

Courtesy of MERCEDES-BENZ USA

Location on model 223 with engine M177 code ME10

Courtesy of MERCEDES-BENZ USA

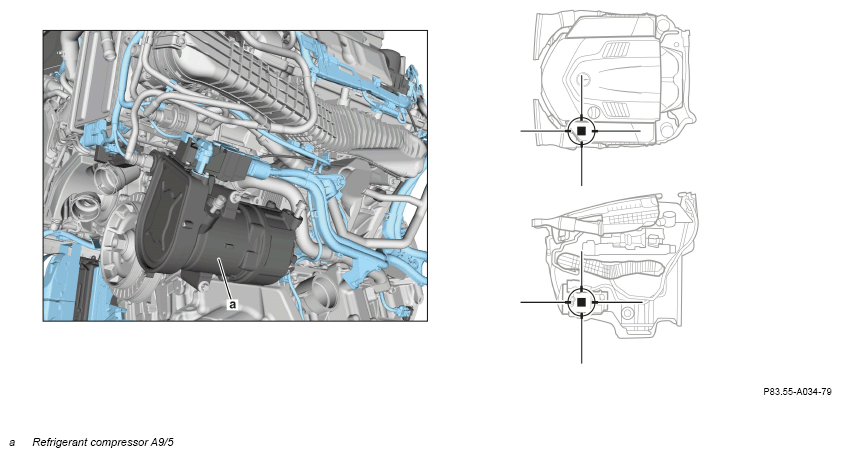

Arrangement in model 223 with engine M254

Location on model 223 with engine M256 code ME10
