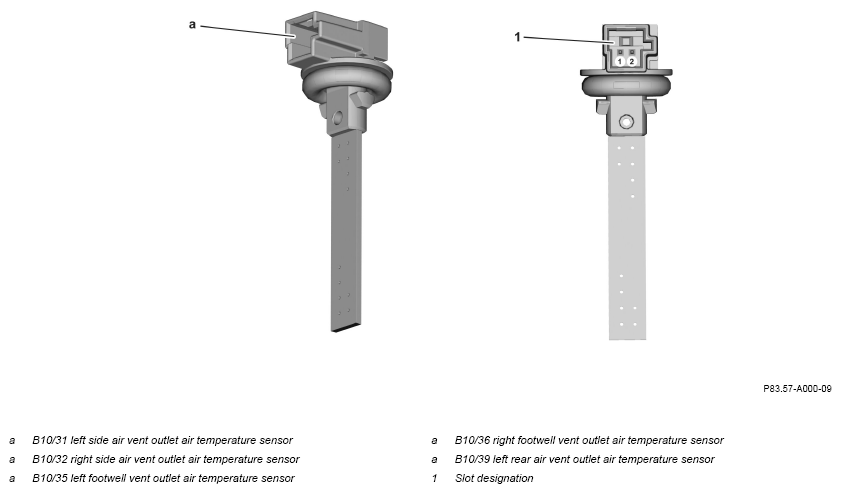

Air Outlet Temperature Sensor, Component Description - GF83.57-P-2130A

Model 223

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

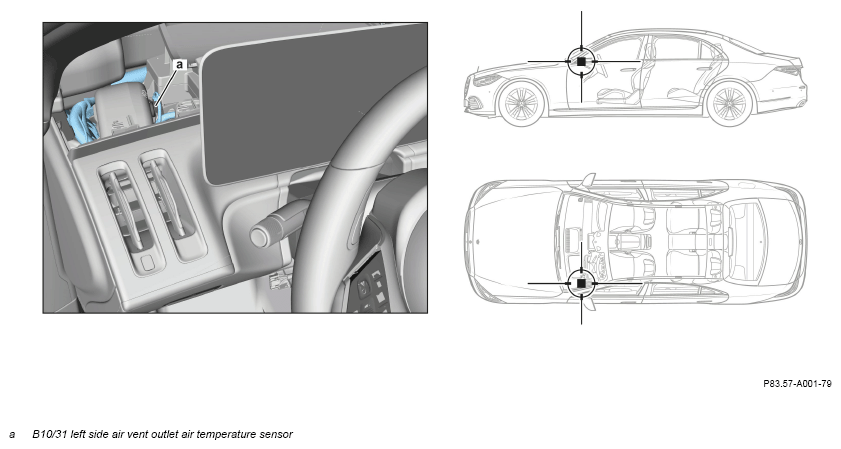

Fig 1: Left Side Air Vent Air Outlet Air Temperature Sensor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

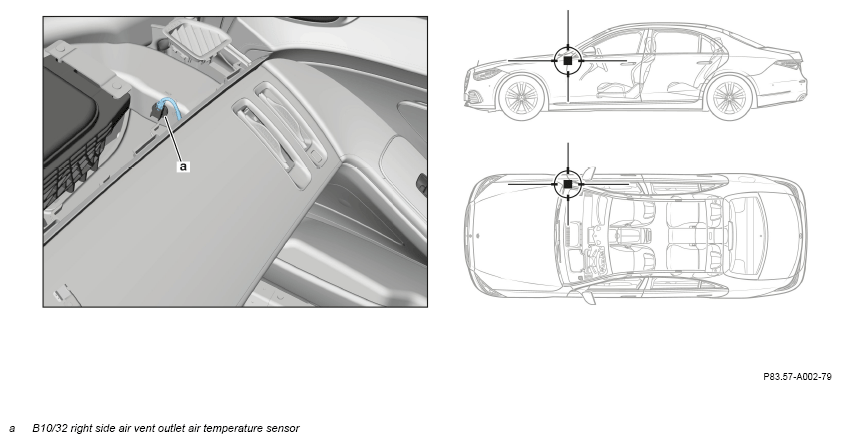

Fig 2: Right Air Outlet Temperature Sensor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

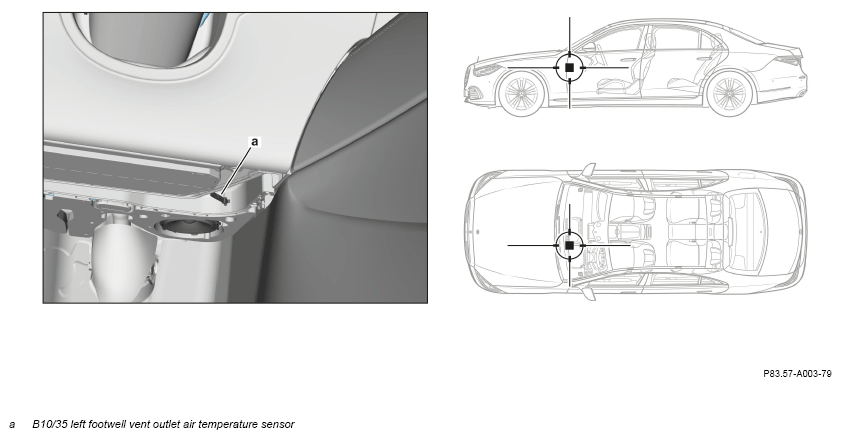

Fig 3: Left Footwell Vent Outlet Air Temperature Sensor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

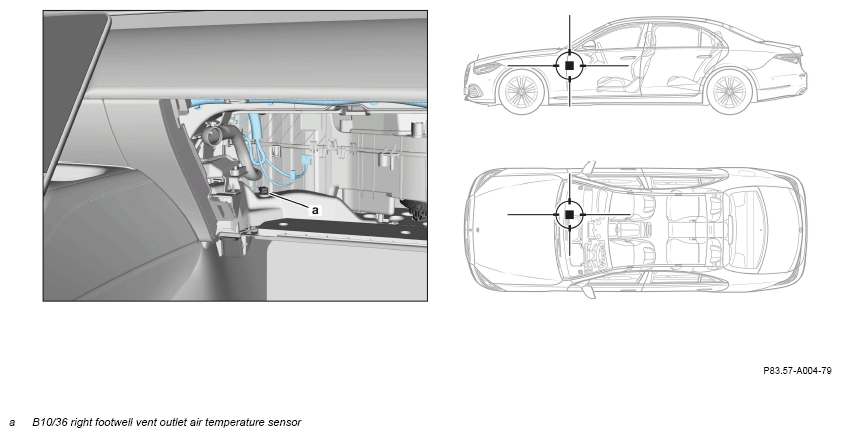

Fig 4: Right Footwell Vent Outlet Air Temperature Sensor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

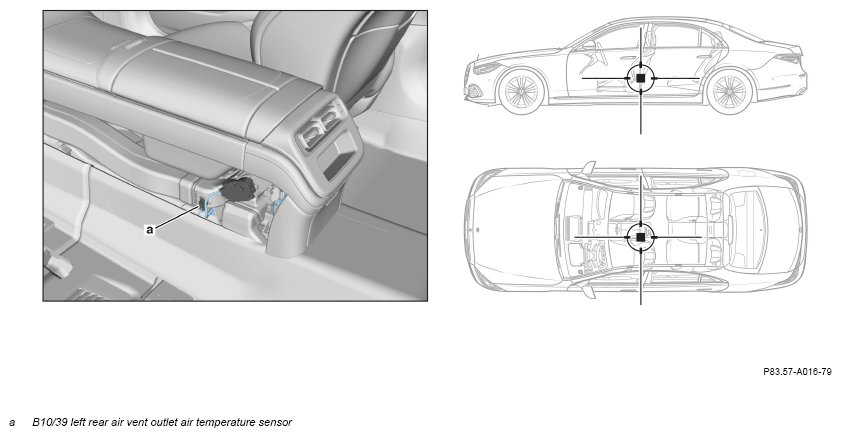

Fig 5: Rear Compartment Air Duct Outlet Air Temperature Sensor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223
