Additional Circulation Pump, Component Description - GF83.75-P-2111A

Model 223

Courtesy of MERCEDES-BENZ USA

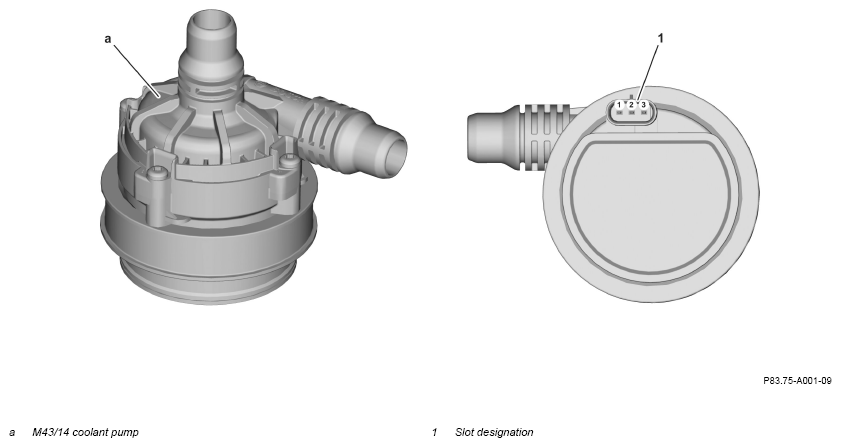

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

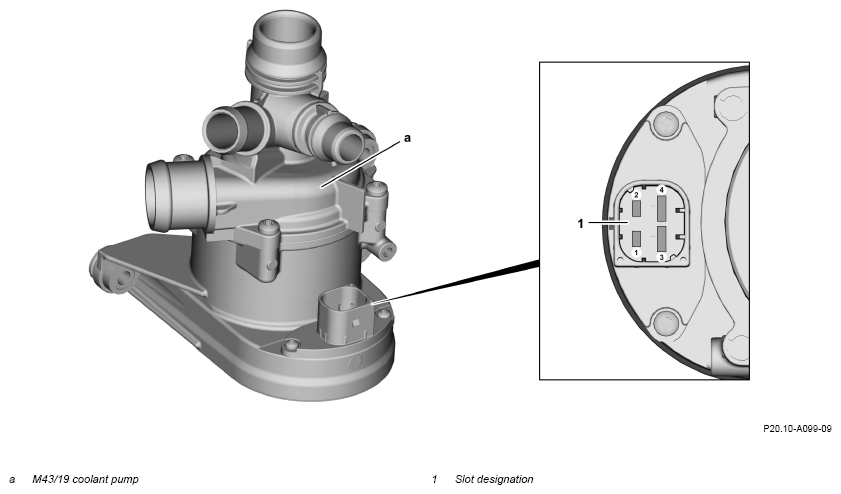

Illustration valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Additional Circulation Pump Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

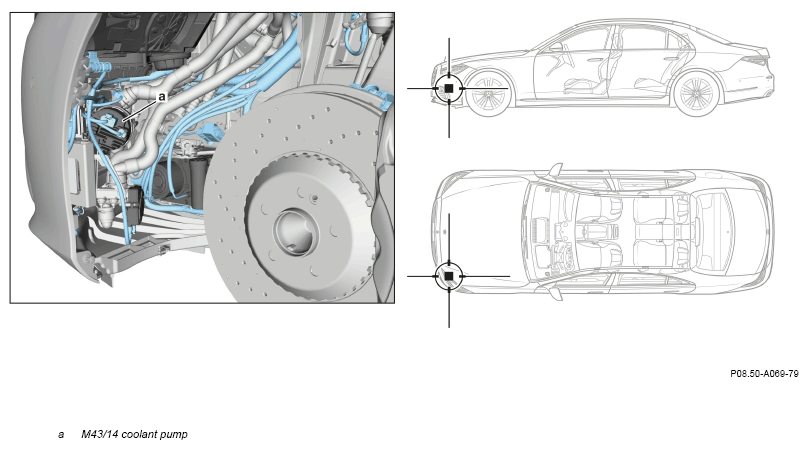

Location on model 223

Fig 2: Additional Circulation Pump Components Location - Model 223 With Engine M256

Courtesy of MERCEDES-BENZ USA

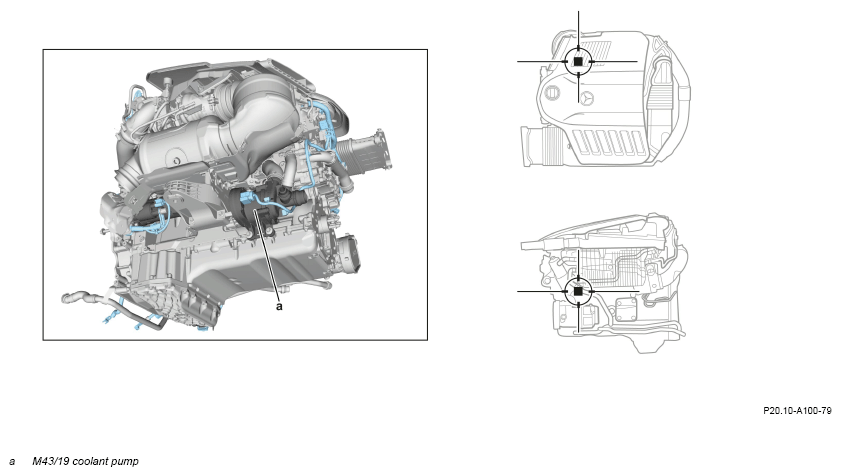

Location in model 223 with engine M256
