Remove/Install Line From Cartridge To Inerting System In Engine Compartment - AR86.10-P-0219S
Model 223
with code 2U8 (Alternative refrigerant)

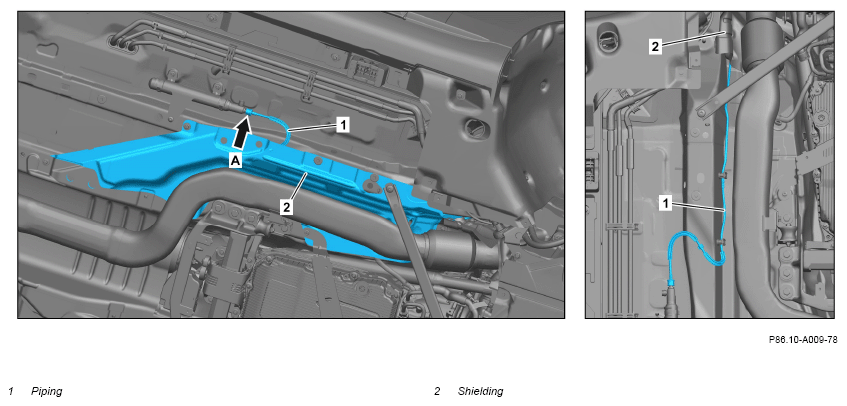

Shown on model 223 with engine 256

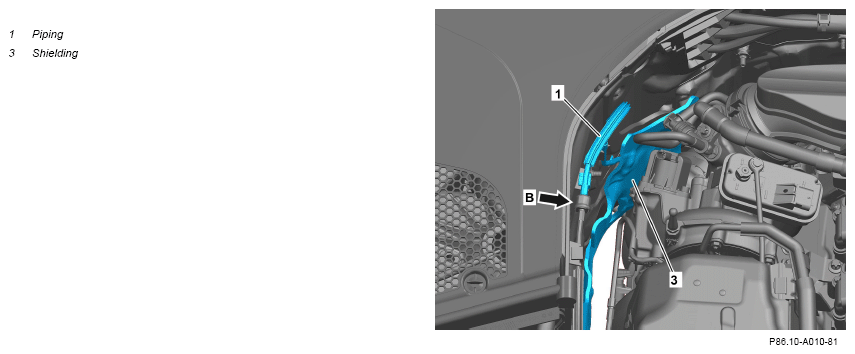

Shown on model 223 with engine 256
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1.1 | Remove center armor plate and front right armor plate. | Model 223 with code 2U8 (Alternative refrigerant) with code Z07 (B7 armoring on special protection version) |
|
| AR61.40-P-1001S | |||
| 1.2 | Remove right side underfloor paneling. | Model 223 with code 2U8 (Alternative refrigerant) except code Z07 (B7 armoring on special protection version) |
|
| AR61.30-P-1001S | |||
| 2 | Remove rear engine compartment lining. | AR61.20-P-1105S | |
| 3 | Release shieldings (2) in area of piping (1). | ||
| 4 | Unclip piping (1) at underbody. | ||
| 5 | Release clamp and remove piping (1) from cartridge (arrow A). | ||
| 6 | Lower vehicle. | ||
| 7 | Release shielding (3) in area of piping (1). | Model 223 with engine 254, 256 with code 2U8 (Alternative refrigerant) |
|
| 8 | Release clamp and remove piping (1) at separating point (arrow B). | ||
| 9 | Remove piping (1). | ||
| 10 | Install in the reverse order. |
