Remove/Install Inertization Cartridge - AR86.10-P-0106S
Model 223
with code 2U8 (Alternative refrigerant)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line of battery of 12 V onboard electrical system. | AR54.10-P-0051S | |
| 2.1 | Remove center armor plate and front right armor plate. | Model 223 with code 2U8 (Alternative refrigerant) with code Z07 (B7 armoring on special protection version) |
|
| AR61.40-P-1001S | |||
| 2.2 | Remove right side underfloor paneling. | Model 223 with code 2U8 (Alternative refrigerant) except code Z07 (B7 armoring on special protection version) |
|
| AR61.30-P-1001S | |||

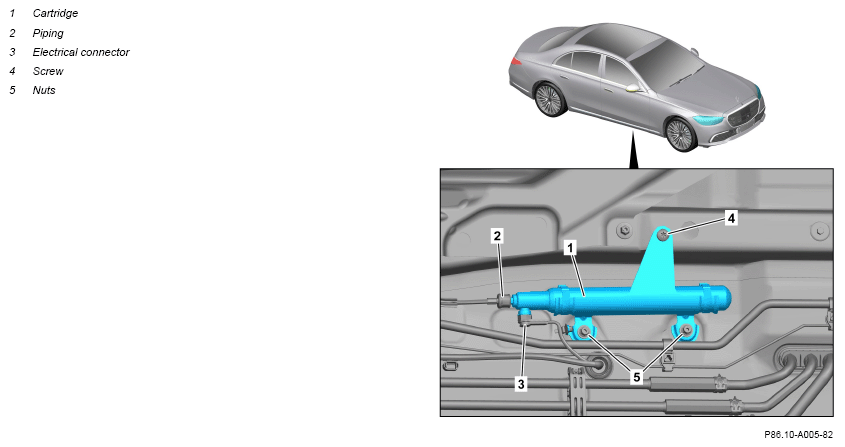

| 3 | Release and disconnect electrical connection (3). | Fig 1 | |
| 4 | Release clamp and remove piping (2). | ||
| 5 | Remove nuts (5). | *BA86.10-P-1003-03G | |
| 6 | Remove screw (4). | *BA86.10-P-1001-03G | |
| 7 | Remove cartridge (1). | ||
| 8 | Install in the reverse order. |
INERTING
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA86.10-P-1001-03G | Screw/bolt, pressure medium reservoir to body | M8 | Nm | 32 |
INERTING
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA86.10-P-1003-03G | Nut, pressure medium reservoir to body | Nm | 8 |
