Remove/Install Extinguishing Agent Line In Trunk - AR86.10-P-0128SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z21 (Fire extinguishing system)

Courtesy of MERCEDES-BENZ USA

	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Switch off ignition and remove transmitter key.
2	Remove rear panel trim.		AR68.30-P-4750SG
3	Lift vehicle with lifting platform.		AR00.60-P-1006A

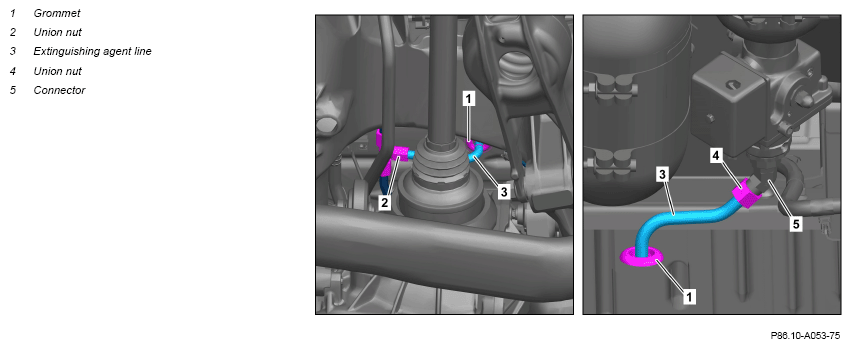

4	Press grommet (1) upward through body.
5	Remove union nut (2) for extinguishing agent line (3) and carefully remove extinguishing agent line (3) from distributor.	Threaded connections for fire extinguisher agent lines	*BA86.10-P-1018-01E
6	Lower vehicle.		AR00.60-P-1006A
7	Remove union nut (4) and carefully remove extinguishing agent line (3) from connector (5) on extinguishing agent tank.	Threaded connections for fire extinguisher agent lines	*BA86.10-P-1018-01E
8	Detach grommet (1) from body and remove extinguishing agent line (3) upward through opening.
9	Install in the reverse order.
