Remove/Install Extinguishing Agent Line Distributor Block On Underbody - AR86.10-P-0140SG
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z21 (Fire extinguishing system)
| Remove/install | |||
| 1 | Remove center armor plate and rear armor plate. | AR61.40-P-1001S | |
| 2 | Remove rear underfloor paneling. | AR61.30-P-1001S | |

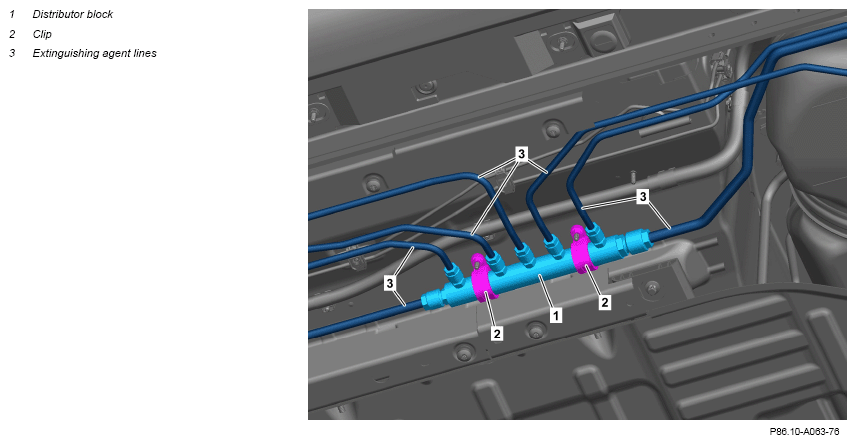

| 3 | Remove union nut for extinguishing agent lines (3) and carefully remove extinguishing agent lines (3) from distributor block (1). | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| *BA86.10-P-1018-01E | |||
| 4 | Remove clamps (2) from distributor block (1). | ||
| 5 | Remove distributor block (1) downward. | ||
| 6 | Install in the reverse order. |
FIRE EXTINGUISHING SYSTEM
| Number | Designation | Model 223 with code Z21 (Fire extinguishing system) |
|
|---|---|---|---|
| BA86.10-P-1018-01E | Threaded connections for fire extinguisher agent lines | Nm | 12 |
