Charge Refrigerant Circuit In Refrigerator Box - AR86.61-P-1001-01SG

Model 223

with code 308 (Refrigerated compartment in rear passenger compartment)

with code Z07 (B7 armoring on special protection version)

	Risk of explosion caused by welding and soldering work on refrigerant circuit of refrigerator box. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near refrigerator box or compressor. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas.	AS86.61-Z-0001-02H
Notice	Action if refrigerant circuit in refrigerator box is damaged		AH86.61-P-0002-01H
	Notes on handling components for refrigerant circuit in refrigerator box		AH86.61-P-0004-01H
	Notes on handling R134a refrigerant		AH86.61-P-0003-01H
	000 588 15 82 00 Air conditioning service unit R134a		WS83.00-P-0064B

MODIFICATION NOTES

05.04.2022

Climate control

BF86.61-P-1001-01A

REFRIGERATOR BOX

Number	Designation			Model 223 with code 308 (Refrigerated compartment in rear passenger compartment) with code Z07 (B7 armoring on special protection version)
BF86.61-P-1001-01A	Climate control	Filling capacity for refrigerant	g	26 (±1)
BF86.61-P-1001-01A	Climate control	Specifications R134a		BB00.40-P-0361-00A

Close valve (1) on auxiliary fitting (2).

Courtesy of MERCEDES-BENZ USA
Place suitable scale (5) on a level surface in vehicle.
The scale (5) should be in the vehicle. Otherwise the measurement results can be faulty.

Use a scale (5) with a precision of ± 1 g.

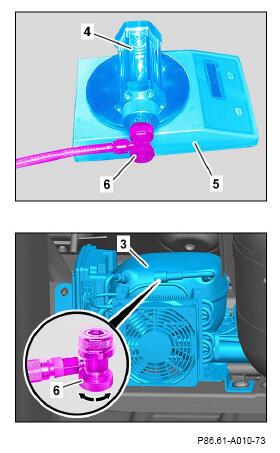

Connect glass piston (4) between air conditioning service unit and refrigerant circuit of refrigerator box and place on scale (5).
Close shutoff valves (6).
Open valve (1) on additional fitting (2).
Open shutoff valves (6) on glass piston (4).
Fill glass piston (4) with refrigerant.
As soon as the display on the scale (5) stabilizes, fills the hose and glass piston (4) completely with refrigerant.
Close valve (1) on auxiliary fitting (2).
Set display on scale (5) to "zero".
See owner's manual.
Open shutoff valve (6) at refrigerator box refrigerant compressor (3) and fill refrigerant circuit of refrigerator box with refrigerant .
Pay attention to display of scale (5).
Close shutoff valve (6) on refrigerator box refrigerant compressor (3).

Courtesy of MERCEDES-BENZ USA
Open valve (1) on additional armature (2) and suction off refrigerant in hose and glass piston (4).
