Relay For Vent Flaps, Component Description - GF86.10-P-2133A

Model 223

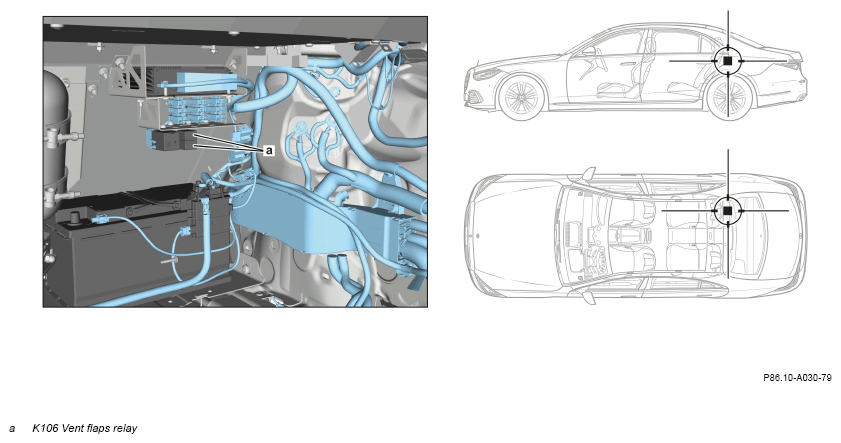

Fig 1: Vent Flap Relay Components Location - Model 223

G16232712

Courtesy of MERCEDES-BENZ USA

Location for model 223
