Refrigerant Inerting Squib, Component Description - GF86.10-P-2132A

Model 223

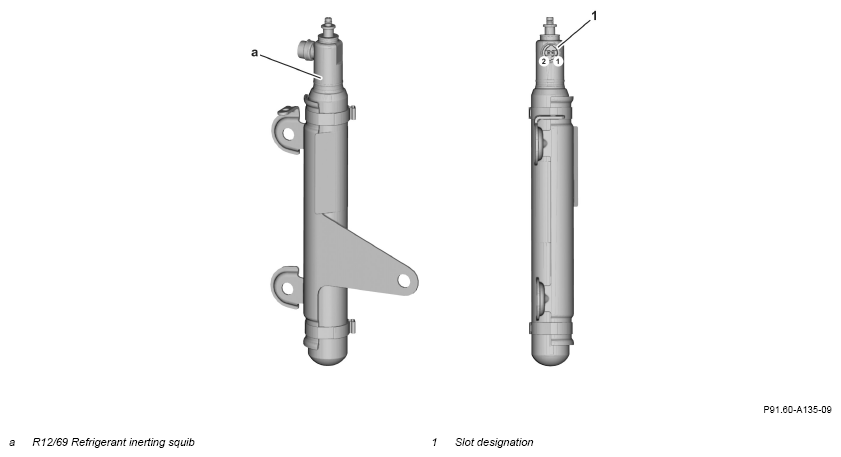

G16232710Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

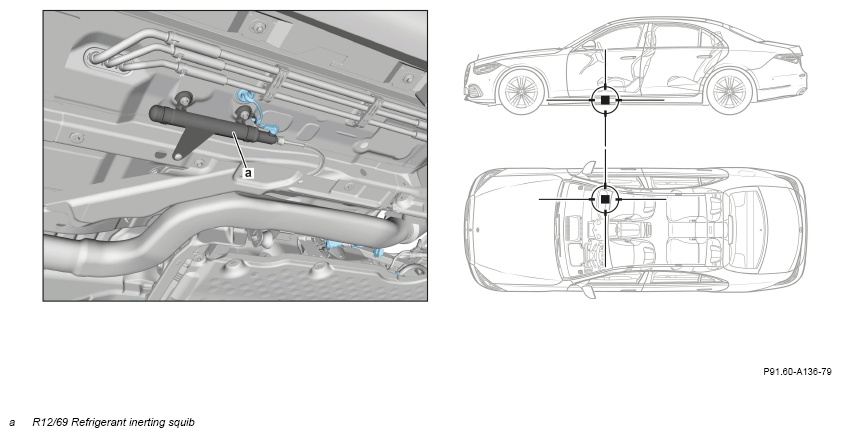

Fig 1: Refrigerant Inerting Squib Components Location - Model 223
G16232711Courtesy of MERCEDES-BENZ USA

Location
