Button For Cup Holder Cap, Component Description - GF86.60-P-4000A

Model 223

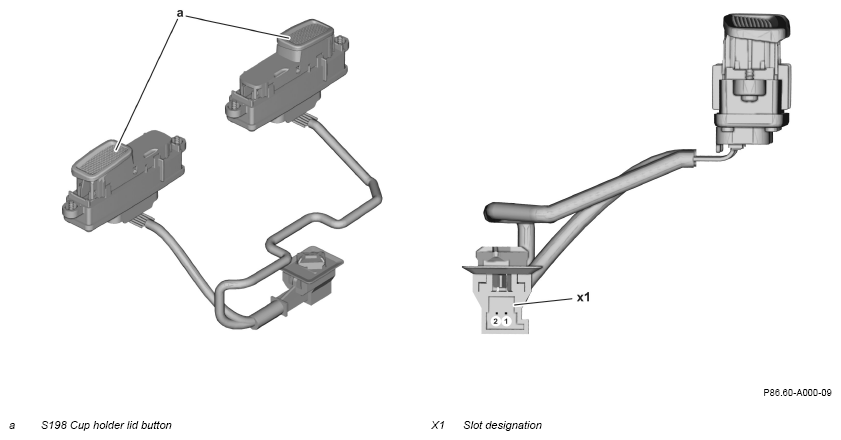

G16232715Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

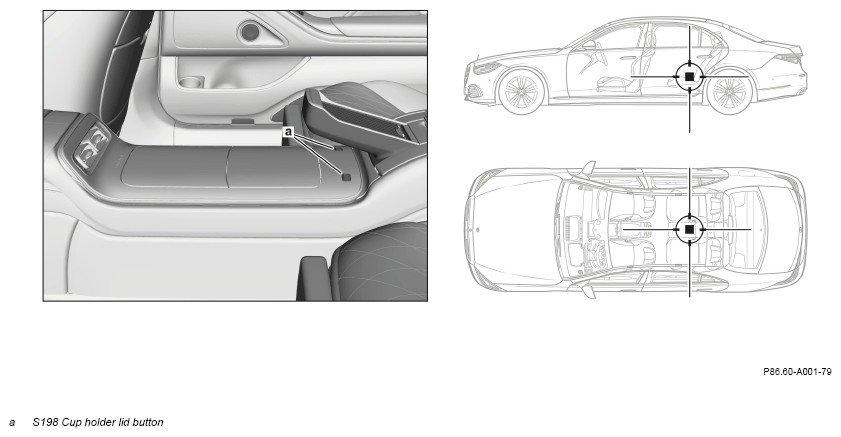

G16232716Courtesy of MERCEDES-BENZ USA

Location
