Foam-Protected Insulation In Body Notes - Ah60.00-P-0041-01S

Model 223.0/1/9, 297

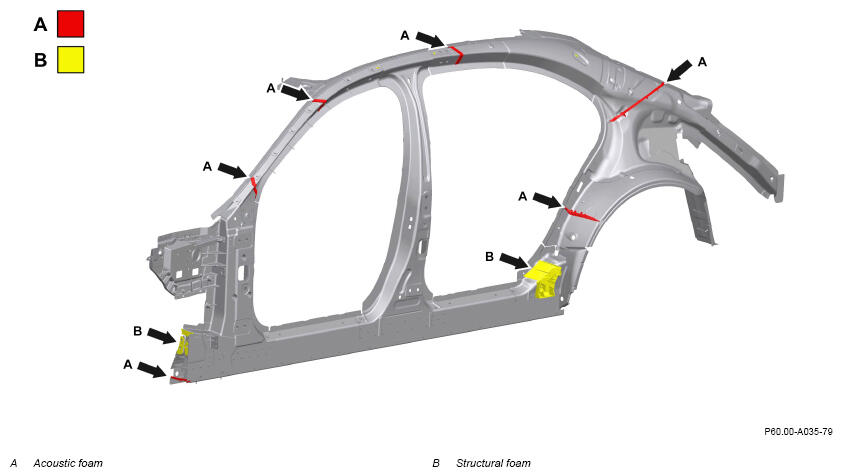

Foam items in area of side wall (shown on left side of vehicle)

Structural foam pieces must be replaced if they cannot be left in the vehicle undamaged. 2-component structural foam adhesive is used as filling foam and to fit the carrier parts.

Acoustic foam part replacements are inserted using sealant at all the cleaned body contact surfaces.
