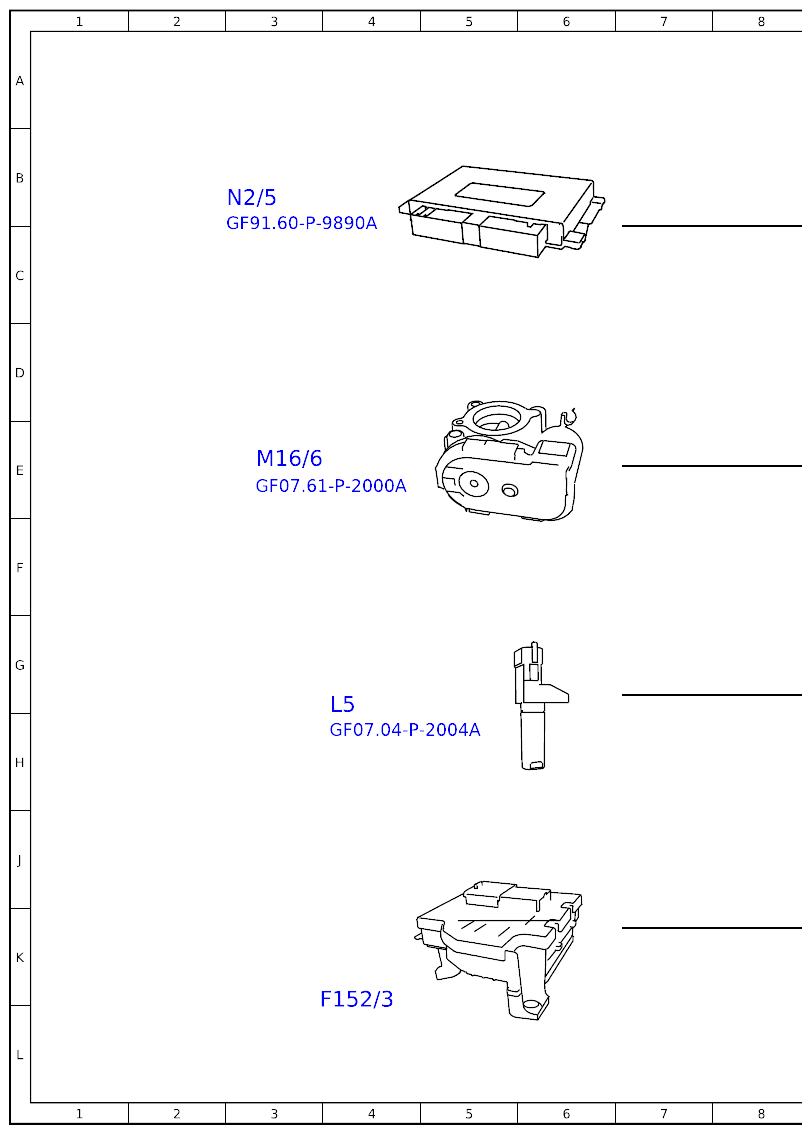

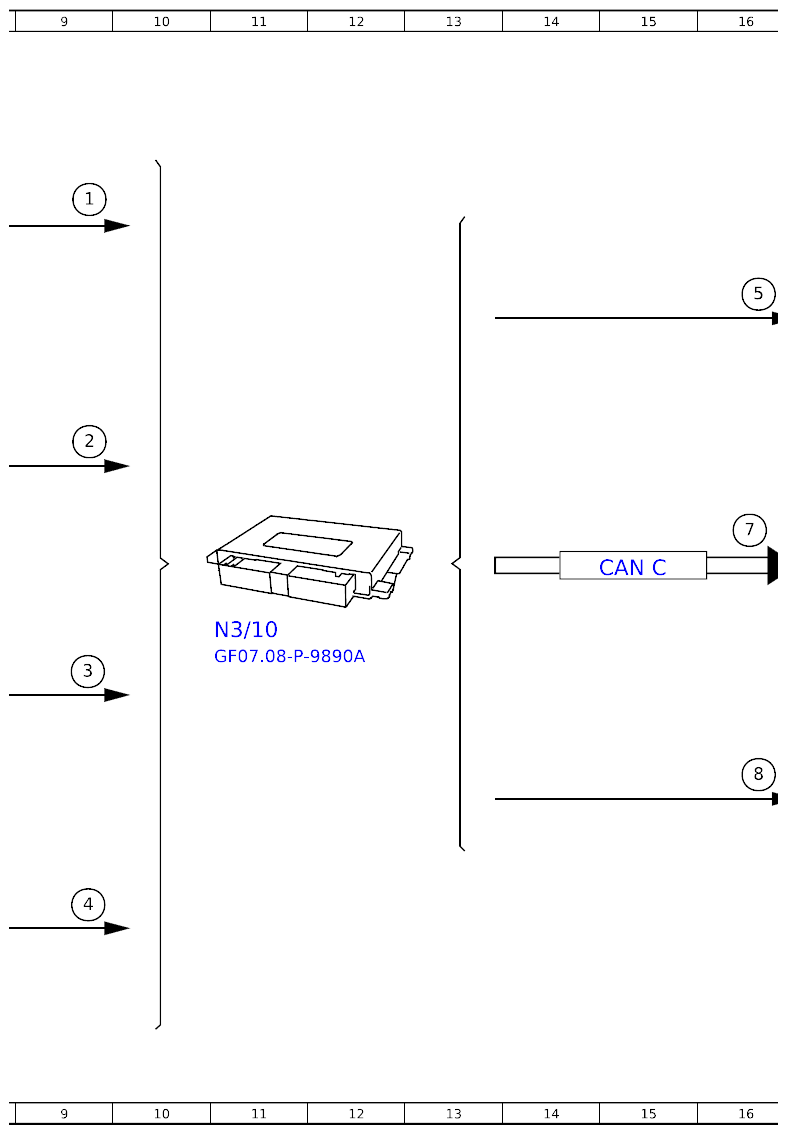

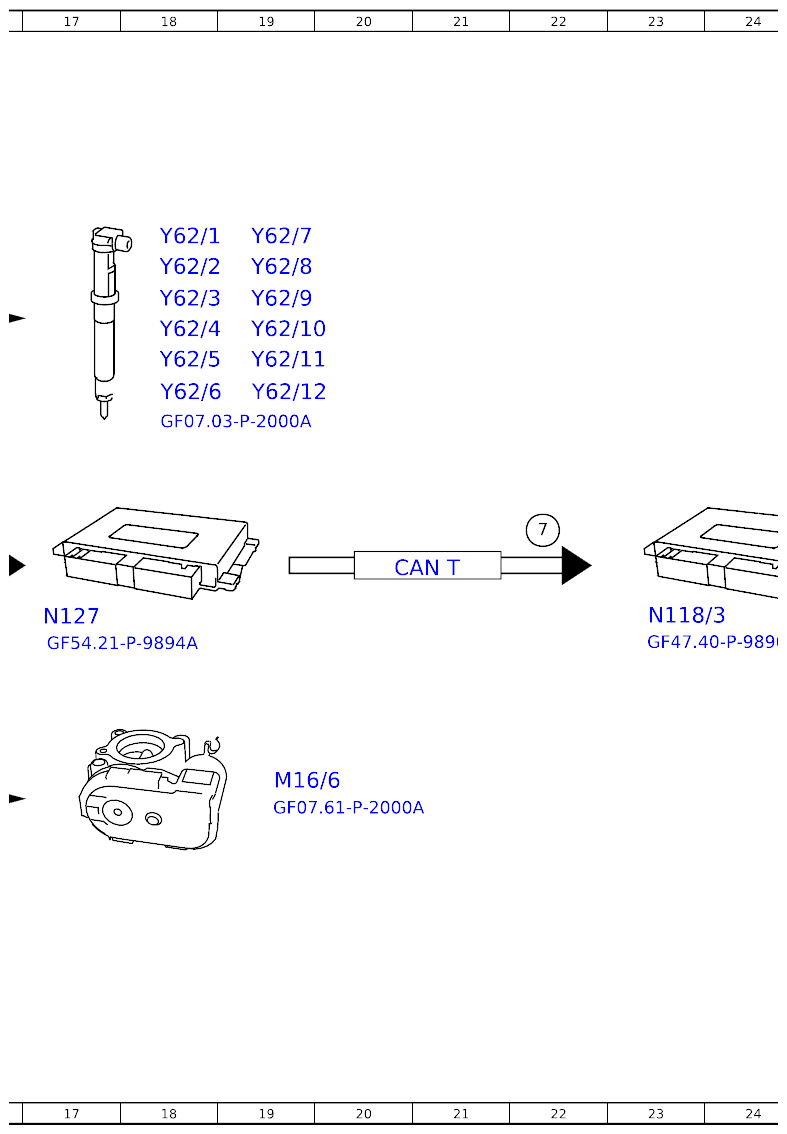

Function Schematic For Safety Fuel Shutoff - PE07.10-P-2503-97J
Engine 279 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 9B |
| 2 | Throttle valve position, signal | 9E |
| 3 | Engine speed, signal | 9G |
| 4 | Circuit 87, status | 9K |
| 5 | Fuel injectors, actuation | 16C |
| 7 | Fuel pump, request OFF | 16F |
| 7 | Fuel pump, request OFF | 22F |
| 7 | Fuel pump, request OFF | 27F |
| 8 | Actuator motor, throttle valve actuator, actuation | 16H |
| A92 | Fuel feed module | 29F |
| CAN C | CAN for engine | 15F |
| CAN T | CAN for drivetrain | 21F |
| F152/3 | Fuse and relay module | 4L |
| L5 | Crankshaft position sensor | 4G |
| M16/6 | Throttle valve actuator | 3E |
| M16/6 | Throttle valve actuator | 19H |
| N118/3 | Fuel pump control unit | 23G |
| N127 | Drivetrain control unit | 17G |
| N2/5 | Supplemental restraint system control unit | 3B |
| N3/10 | ME-SFI [ME] control unit | 11G |
| Y62/1 | Injector | 18C |
| Y62/10 | Injector | 19D |
| Y62/11 | Injector | 19D |
| Y62/12 | Injector | 19D |
| Y62/2 | Injector | 18C |
| Y62/3 | Injector | 18C |
| Y62/4 | Injector | 18D |
| Y62/5 | Injector | 18D |
| Y62/6 | Injector | 18D |
| Y62/7 | Injector | 19C |
| Y62/8 | Injector | 19C |
| Y62/9 | Injector | 19C |
