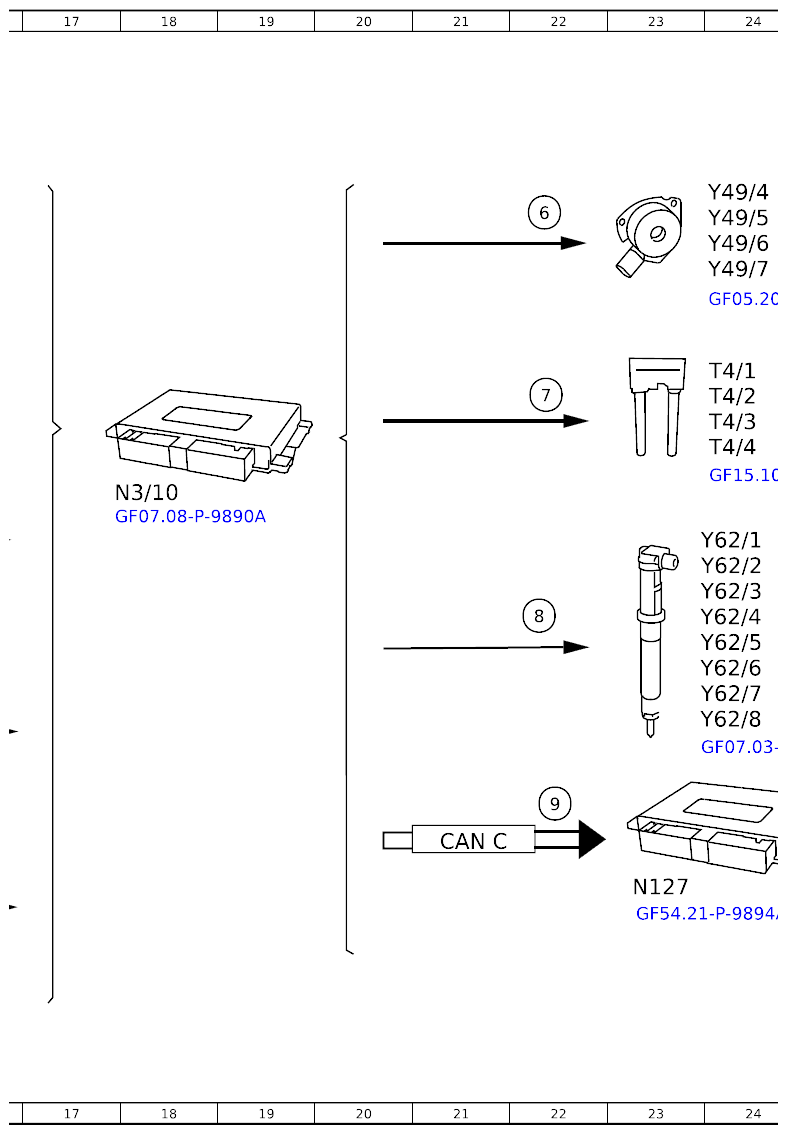

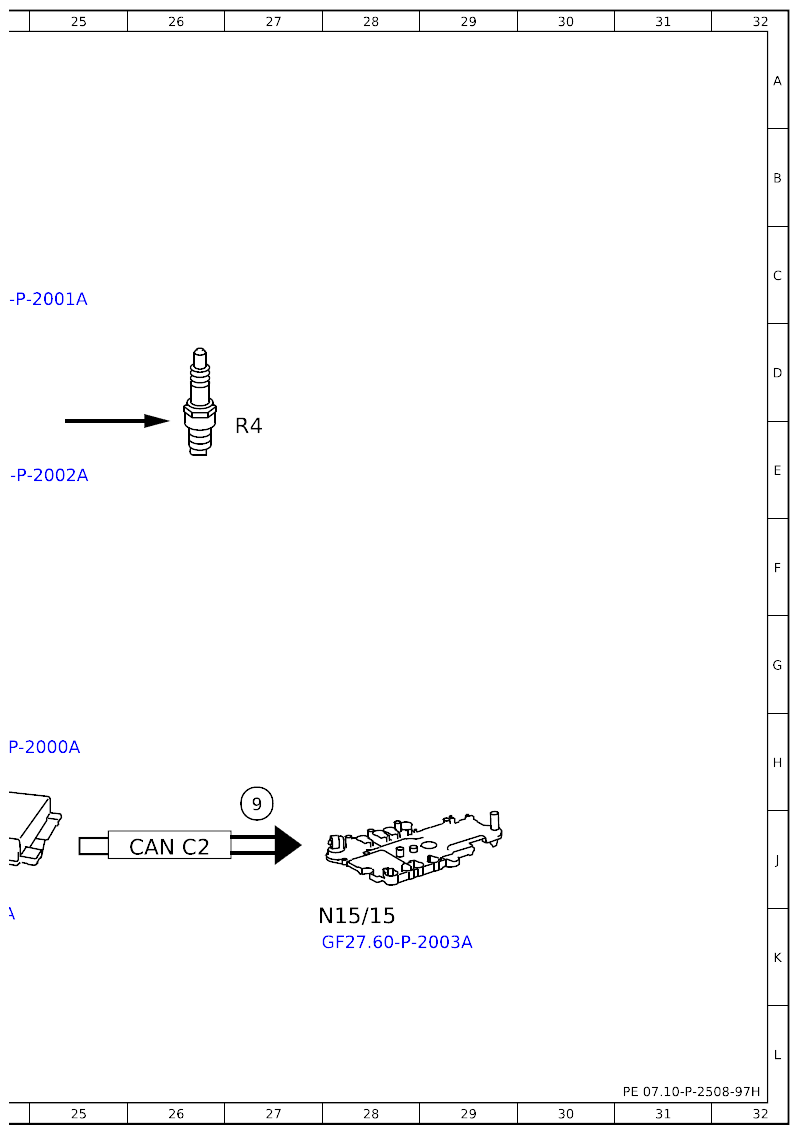

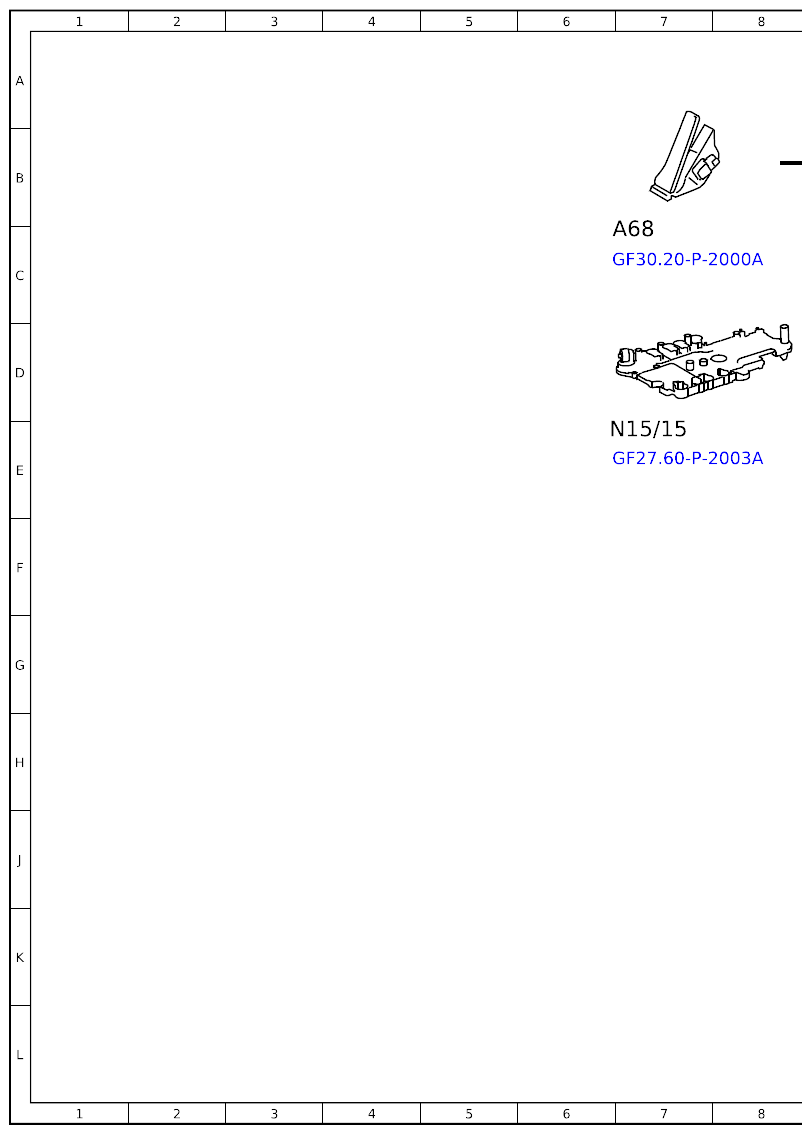

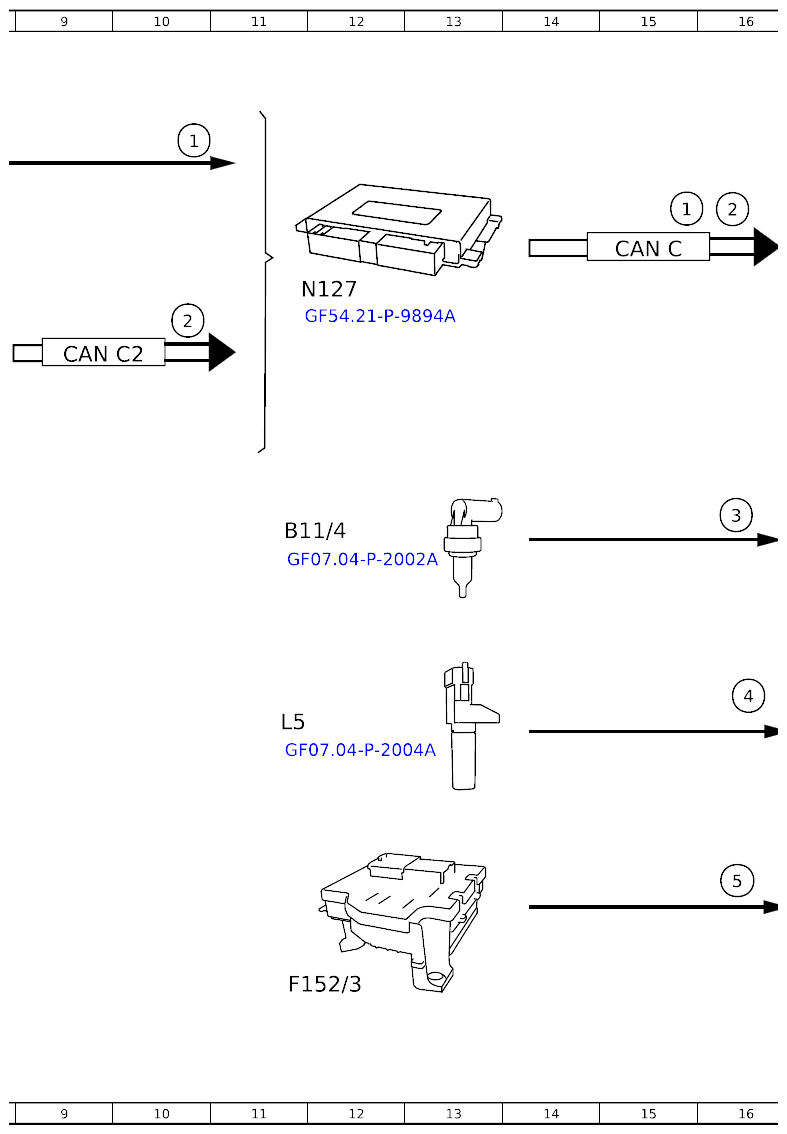

Function Schematic For Overrun Mode Fuel Shutoff - PE07.10-P-2508-97H
Engine 176 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 10B |
| 1 | Accelerator pedal sensor, signal | 15B |
| 2 | Gear range, status | 10D |
| 2 | Gear range, status | 16B |
| 3 | - | 16F |
| 4 | Engine speed, signal | 16G |
| 5 | Circuit 87, status | 16J |
| 6 | Camshaft solenoids, actuation | 22B |
| 7 | Ignition coils, actuation | 22D |
| 8 | Fuel injectors, actuation | 22G |
| 9 | Engine running, signal | 22H |
| 9 | Engine running, signal | 27H |
| A68 | Accelerator pedal module | 6C |
| B11/4 | Coolant temperature sensor | 11F |
| CAN C | CAN for engine | 15C |
| CAN C | CAN for engine | 21J |
| CAN C2 | CAN 2 for drive | 9D |
| CAN C2 | CAN 2 for drive | 26J |
| F152/3 | Fuse and relay module | 12K |
| L5 | Crankshaft Hall sensor | 11H |
| N127 | Drivetrain control unit | 12C |
| N127 | Drivetrain control unit | 23J |
| N15/15 | Fully integrated transmission control electric controller unit | 7E |
| N15/15 | Fully integrated transmission control electric controller unit | 28K |
| N3/10 | Engine management control unit | 18E |
| R4 | Spark plugs | 27E |
| T4/1 | Ignition coil | 24D |
| T4/2 | Ignition coil | 24D |
| T4/3 | Ignition coil | 24E |
| T4/4 | Ignition coil | 24E |
| Y49/4 | Camshaft adjustment solenoid | 24B |
| Y49/5 | Camshaft adjustment solenoid | 24B |
| Y49/6 | Camshaft adjustment solenoid | 24C |
| Y49/7 | Camshaft adjustment solenoid | 24C |
| Y62/1 | Injector | 23F |
| Y62/2 | Injector | 23F |
| Y62/3 | Injector | 23F |
| Y62/4 | Injector | 23G |
| Y62/5 | Injector | 23G |
| Y62/6 | Injector | 23G |
| Y62/7 | Injector | 23G |
| Y62/8 | Injector | 23H |
