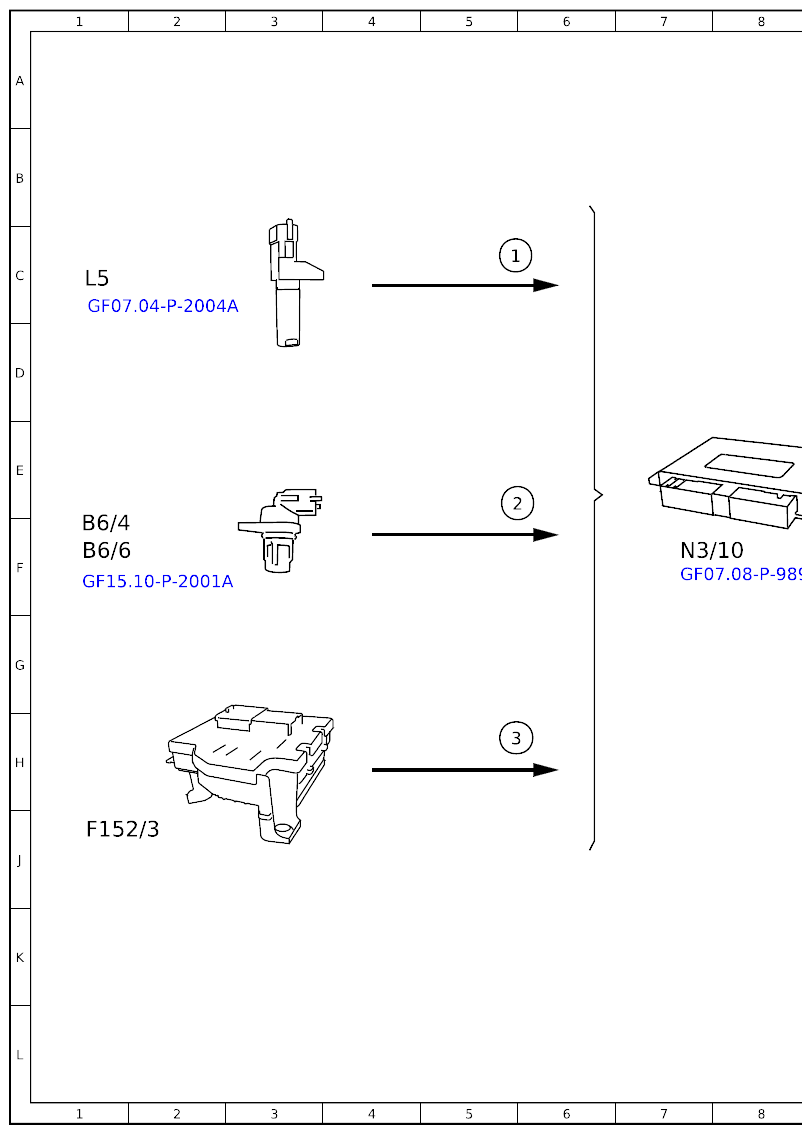

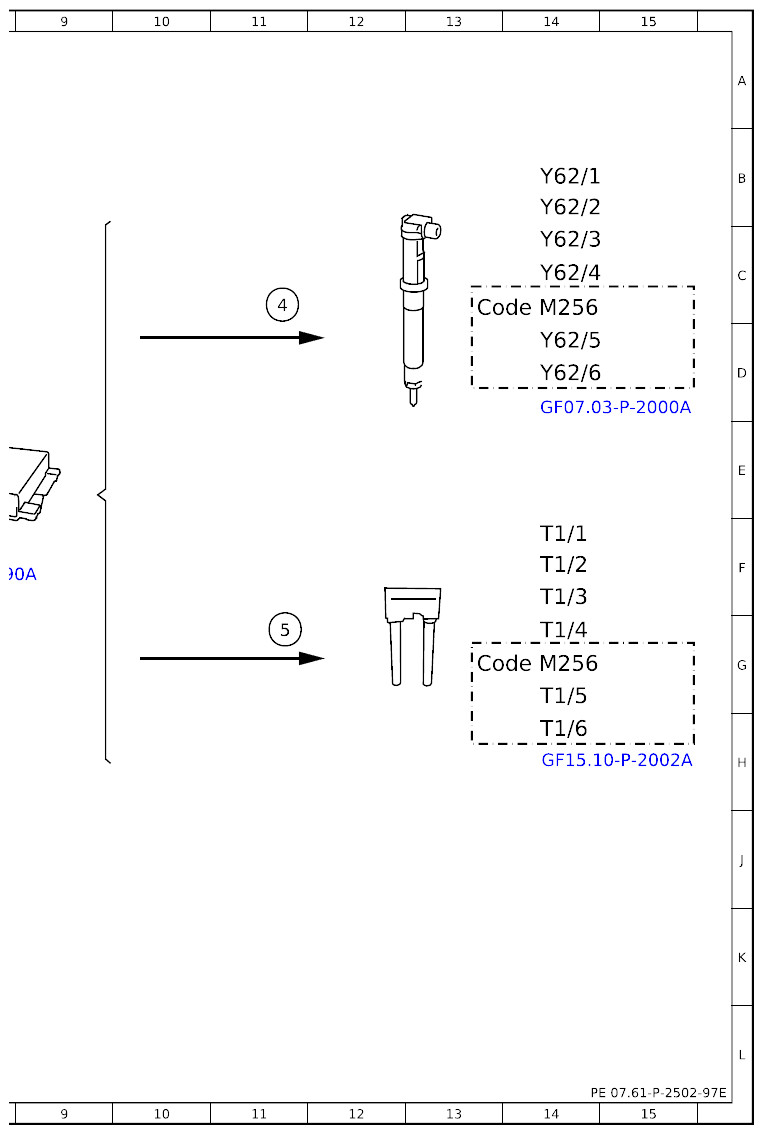

Function Schematic For ME Synchronization Of Fuel Injection And Firing Order - PE07.61-P-2502-97E
Engine 254 in model 167
as of model year 2023
Engine 254 in model 206, 214, 236, 254
Engine 256 in model 214, 223, 236
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 5C |
| 2 | Camshaft Hall sensor, signal | 5E |
| 3 | Circuit 87, status | 5H |
| 4 | Fuel injectors, actuation | 11C |
| 5 | Ignition coils, actuation | 11G |
| B6/4 | Camshaft Hall sensor | 1F |
| B6/6 | Camshaft Hall sensor | 1F |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 13G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 13C |
| F152/3 | Fuse and relay module | 1J |
| L5 | Crankshaft Hall sensor | 1C |
| N3/10 | Engine management control unit | 7F |
| T1/1 | Ignition coil | 14F |
| T1/2 | Ignition coil | 14F |
| T1/3 | Ignition coil | 14F |
| T1/4 | Ignition coil | 14G |
| T1/5 | Ignition coil | 14G |
| T1/6 | Ignition coil | 14H |
| Y62/1 | Injector | 14B |
| Y62/2 | Injector | 14B |
| Y62/3 | Injector | 14C |
| Y62/4 | Injector | 14C |
| Y62/5 | Injector | 14D |
| Y62/6 | Injector | 14D |
