Function Schematic For Ignition On - PE07.10-P-2505-97F
Engine 254 in model 206, 214, 236, 254
Engine 256 in model 214, 223, 236
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine management diagnosis, communication | 5C |
| 1 | Engine management diagnosis, communication | 11E |
| 1 | Engine management diagnosis, communication | 20E |
| 1 | Engine management diagnosis, communication | 26E |
| 1 | Engine management diagnosis, communication | 32D |
| 1 | Engine management diagnosis, communication | 37F |
| 10 | Instrument cluster, message | 37E |
| 10 | Instrument cluster, message | 31D |
| 10 | Instrument cluster, message | 32D |
| 11 | Image data, signal | 41E |
| 12 | Ignition coils, actuation | 25G |
| 13 | Fuel injectors, actuation | 29J |
| 14 | Throttle valve actuator motor, actuation | 25L |
| 2 | Circuit 15, request ON | 11C |
| 3 | Circuit 15 relay, actuation | 16C |
| 4 | Circuit 15, status ON | 20C |
| 4 | Circuit 15, status ON | 11E |
| 4 | Circuit 15, status ON | 19E |
| 5 | Circuit 87, status | 19C |
| 6 | Throttle valve actuator, signal | 20B |
| 7 | Combustion engine circuit 87 relay, actuation | 42A |
| 8 | Fuel pump, request ON | 31B |
| 8 | Fuel pump, request ON | 31C |
| 8 | Fuel pump, request ON | 26D |
| 9 | Fuel pump, actuation | 36B |

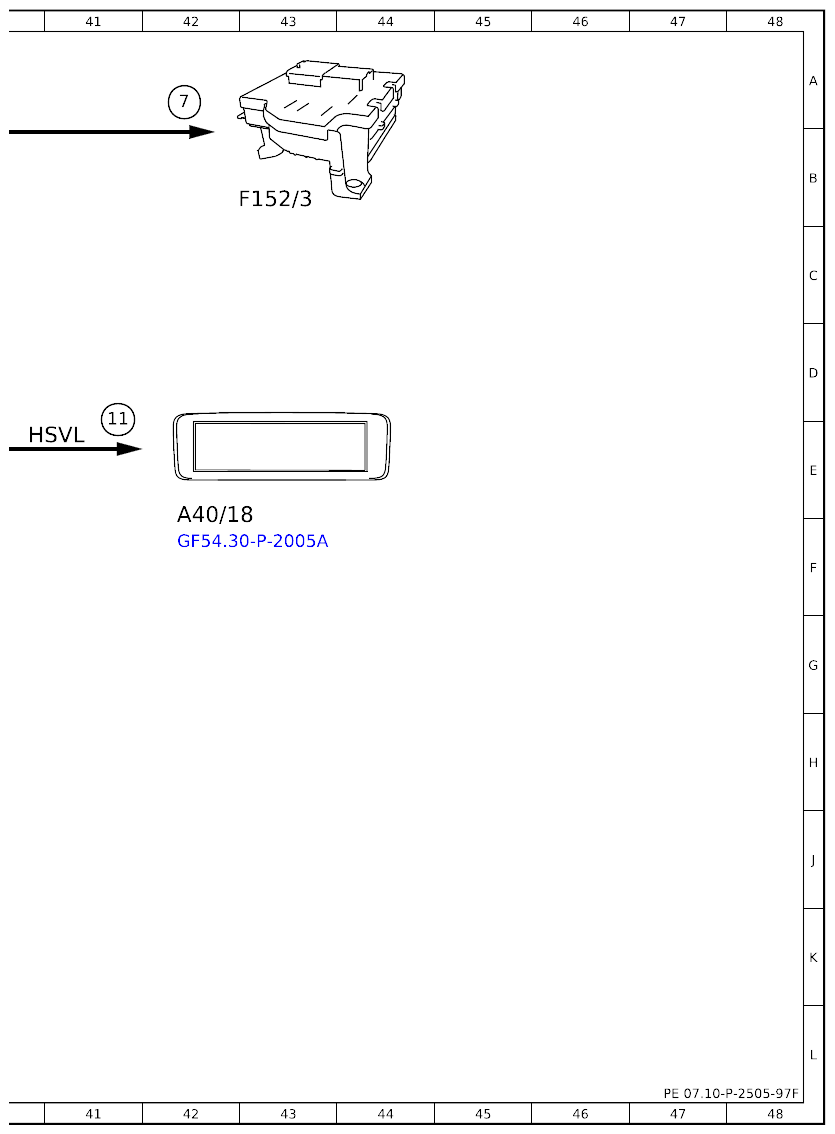

| A40/18 | Instrument cluster display | 42F |
| A92 | Fuel feed module | 38C |
| CAN C | CAN for engine | 25D |
| CAN C1 | CAN 1 for drive | 17F |
| CAN C1 | CAN 1 for drive | 25F |
| CAN D | CAN for diagnosis | 4D |
| CAN D | CAN for diagnosis | 36G |
| CANT | CAN for drivetrain | 30C |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 30K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 27H |
| Ethernet | Ethernet | 10D |
| Ethernet | Ethernet | 10F |
| Ethernet | Ethernet | 30E |
| Ethernet | Ethernet | 36E |
| F152/3 | Fuse and relay module | 17D |
| F152/3 | Fuse and relay module | 43B |
| HSVL | High-speed video link | 41E |
| M16/5 | Throttle valve actuator | 28L |
| M16/5 | Throttle valve actuator | 15B |

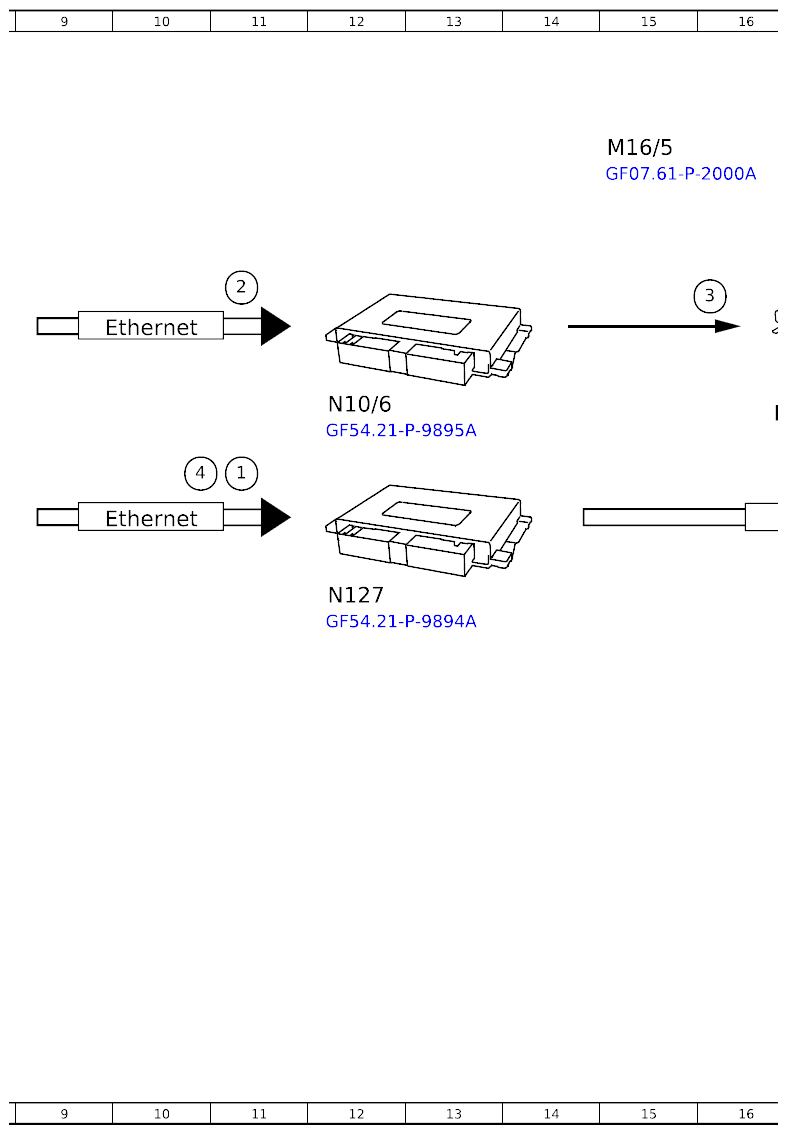

| N10/6 | Front signal acquisition and actuation module control unit | 12D |

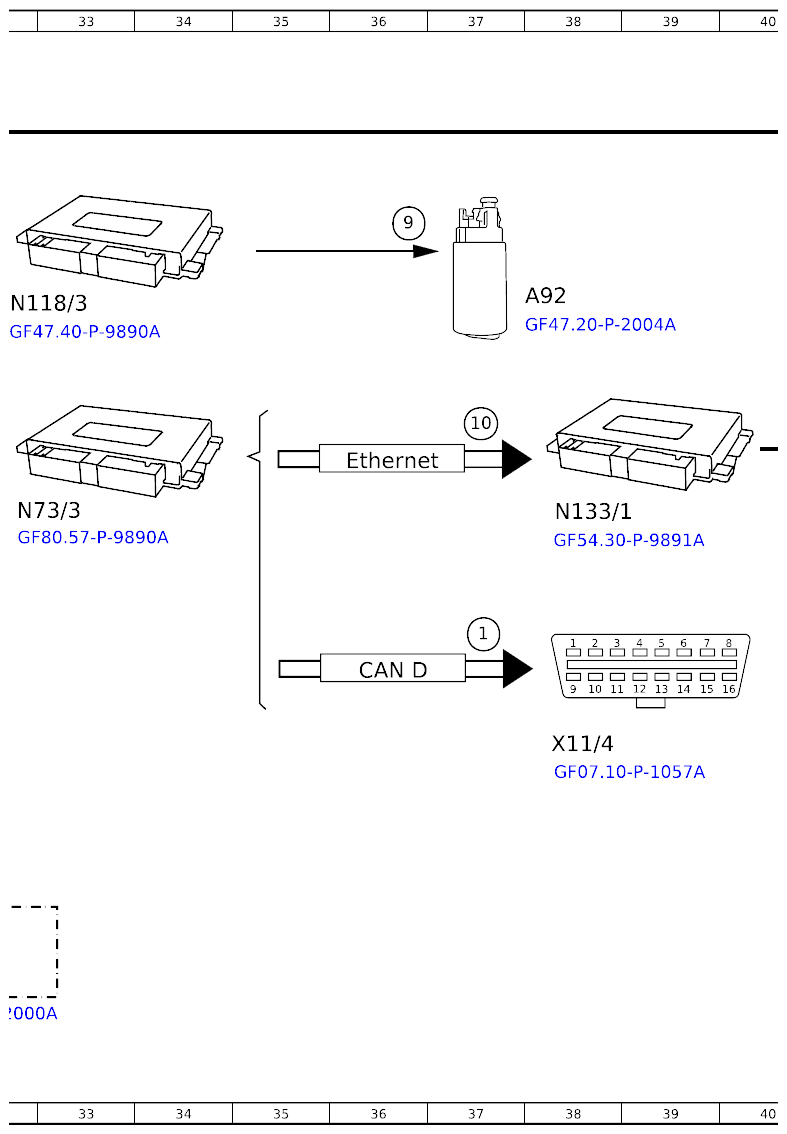

| N118/3 | Fuel pump control unit | 32C |

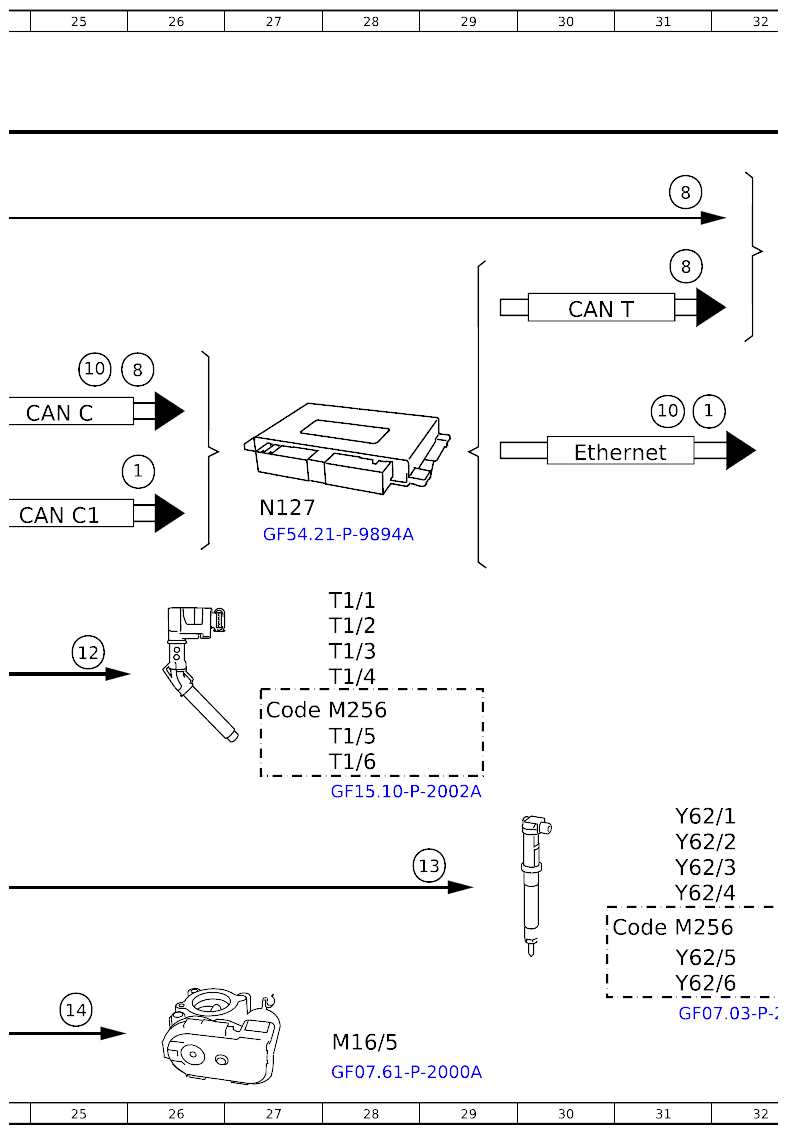

| N127 | Drivetrain control unit | 12F |
| N127 | Drivetrain control unit | 27E |
| N133/1 | Instrument cluster control unit | 38F |

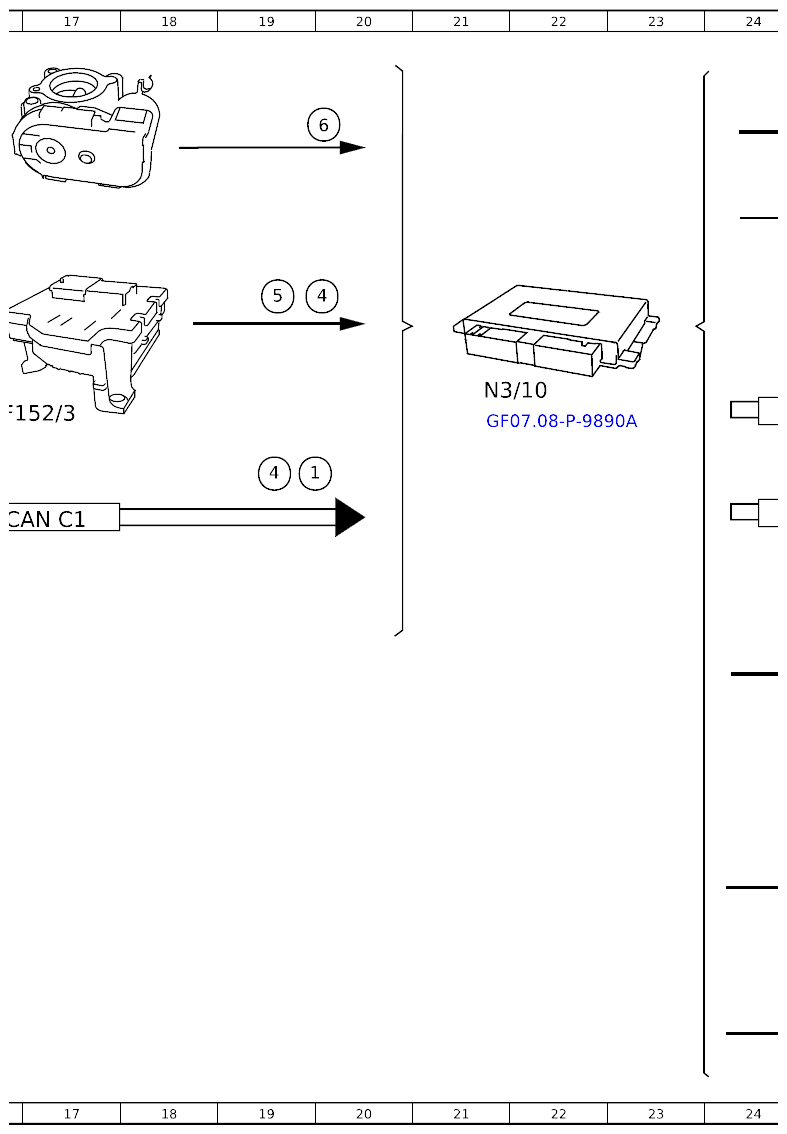

| N3/10 | Engine management control unit | 21D |
| N73/3 | Electronic ignition switch control unit | 6D |
| N73/3 | Electronic ignition switch control unit | 32E |
| T1/1 | Ignition coil | 28F |
| T1/2 | Ignition coil | 28G |
| T1/3 | Ignition coil | 28G |
| T1/4 | Ignition coil | 28G |
| T1/5 | Ignition coil | 28H |
| T1/6 | Ignition coil | 28H |

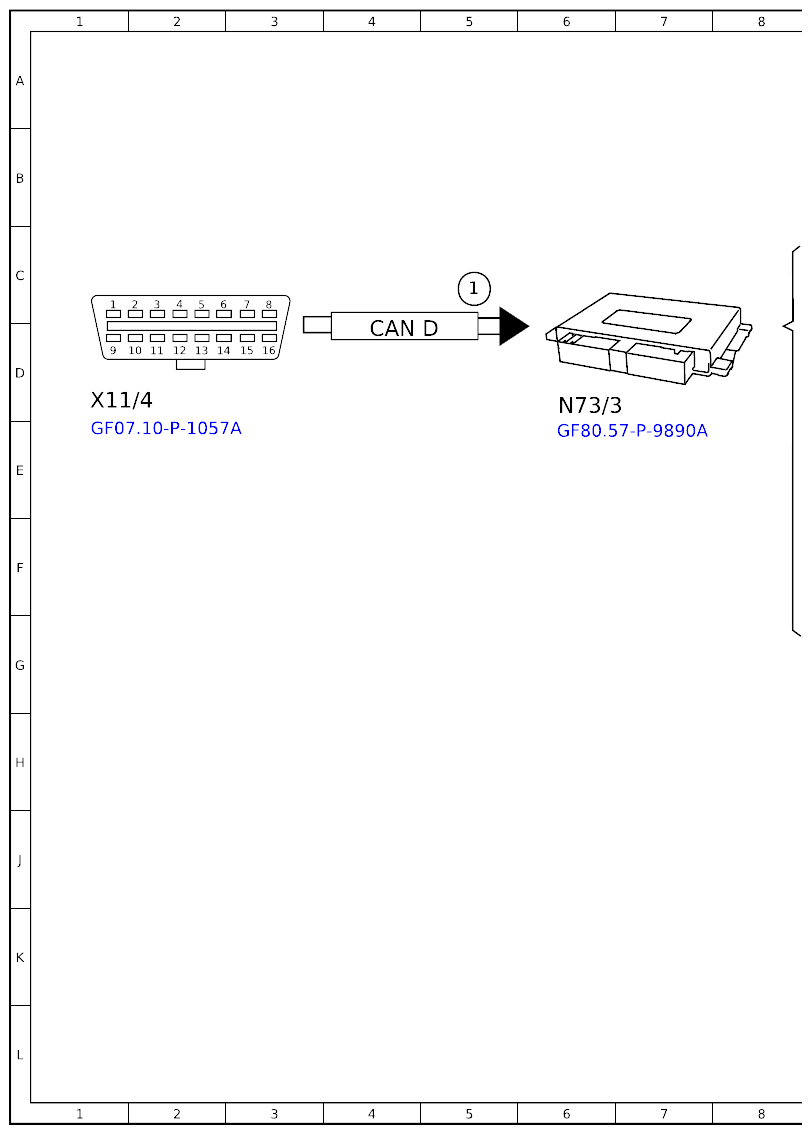

| X11/4 | Diagnostic connector | 1D |
| X11/4 | Diagnostic connector | 38H |
| Y62/1 | Injector | 31J |
| Y62/2 | Injector | 31J |
| Y62/3 | Injector | 31J |
| Y62/4 | Injector | 31J |
| Y62/5 | Injector | 31K |
| Y62/6 | Injector | 31K |
