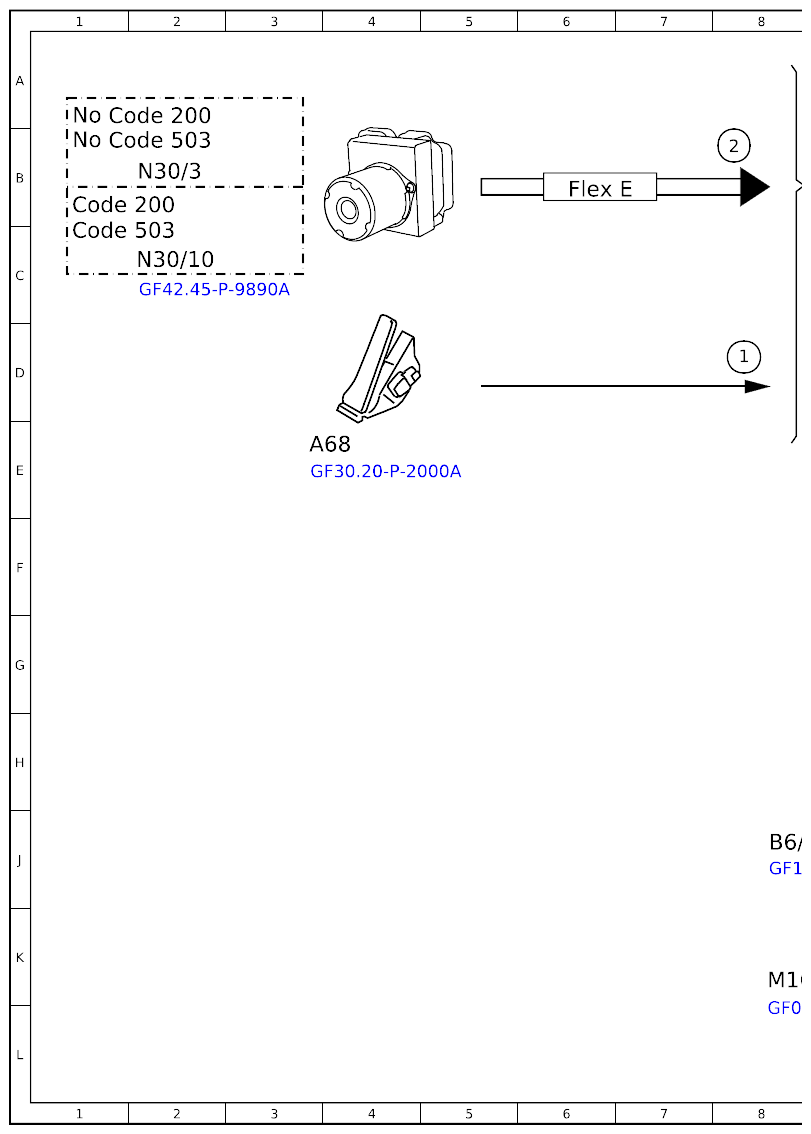

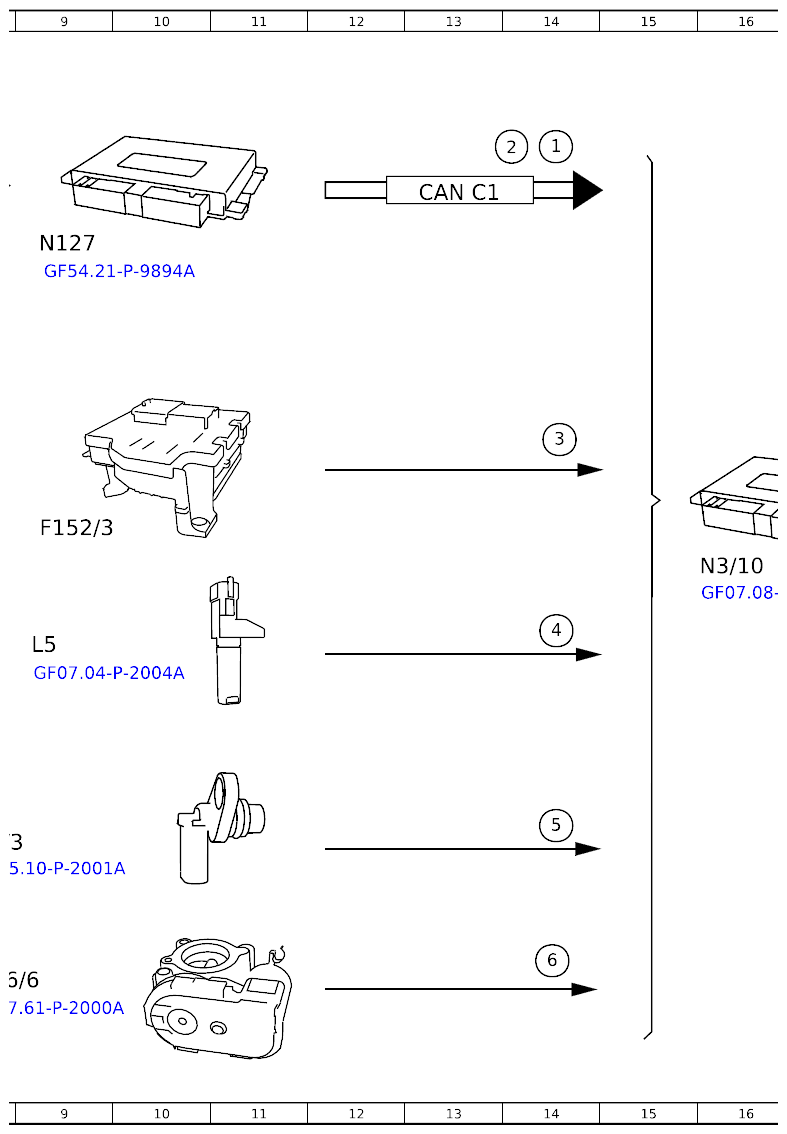

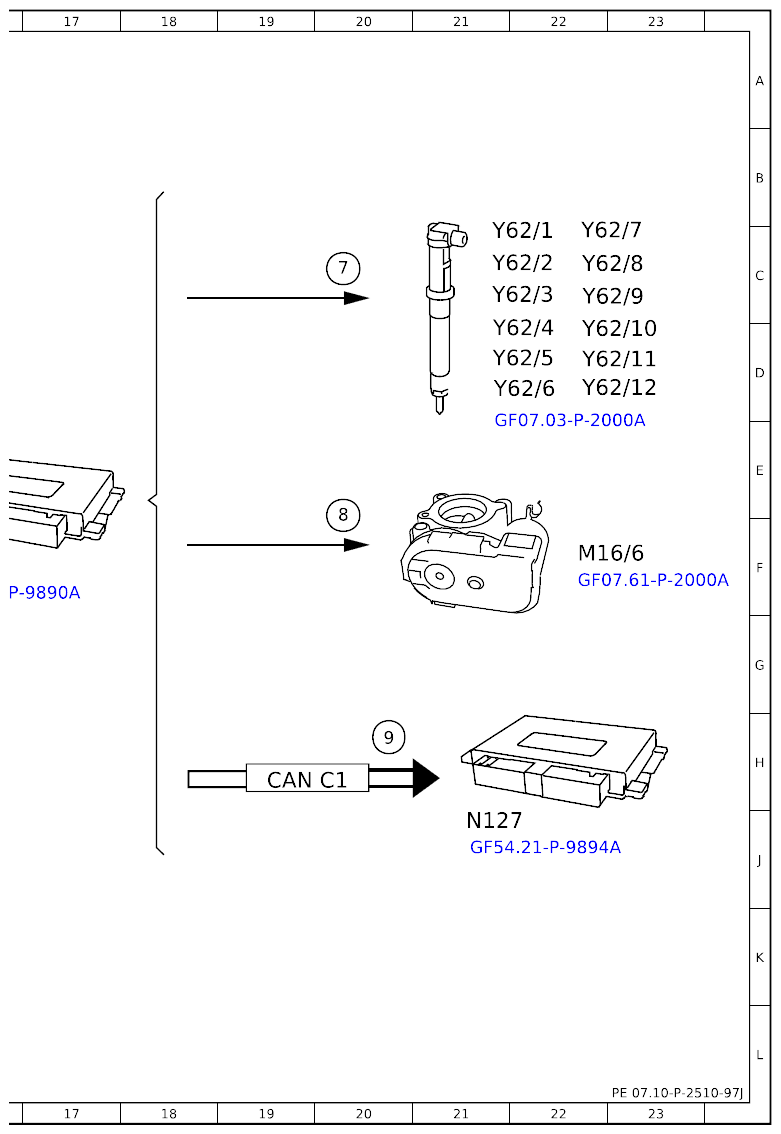

Function Schematic For Engine Limp-Home Mode - PE07.10-P-2510-97J
Engine 279 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 8D |
| 1 | Accelerator pedal sensor, signal | 14B |
| 2 | Service brake, status | 8B |
| 2 | Service brake, status | 14B |
| 3 | Circuit 87, status | 14E |
| 4 | Engine speed, signal | 14G |
| 5 | Camshaft Hall sensor, signal | 14J |
| 6 | Throttle valve position, signal | 14K |
| 7 | Fuel injectors, actuation | 20C |
| 8 | Throttle valve actuator motor, actuation | 20F |
| 9 | Engine running, signal | 20H |
| A68 | Accelerator pedal module | 3E |
| B6/3 | Camshaft Hall sensor | 8J |
| CAN C1 | CAN 1 for drive | 13B |
| CAN C1 | CAN 1 for drive | 19H |
| Code 200 | Conditionally automated driving | 1B |
| Code 200 | Conditionally automated driving | 1A |
| Code 503 | Remote-controlled parking | 1B |
| Code 503 | Remote-controlled parking | 1C |
| F152/3 | Fuse and relay module | 9F |
| Flex E | Chassis FlexRay | 6B |
| L5 | Crankshaft Hall sensor | 9G |
| M16/6 | Throttle valve actuator | 8K |
| M16/6 | Throttle valve actuator | 22F |
| N127 | Drivetrain control unit | 9C |
| N127 | Drivetrain control unit | 21J |
| N3/10 | Engine management control unit | 16F |
| N30/10 | Electronic Stability Program control unit | 2C |
| N30/3 | Electronic Stability Program control unit | 2B |
| Y62/1 | Injector | 21C |
| Y62/10 | Injector | 22D |
| Y62/11 | Injector | 22D |
| Y62/12 | Injector | 22D |
| Y62/2 | Injector | 21C |
| Y62/3 | Injector | 21C |
| Y62/4 | Injector | 21D |
| Y62/5 | Injector | 21D |
| Y62/6 | Injector | 21D |
| Y62/7 | Injector | 22C |
| Y62/8 | Injector | 22C |
| Y62/9 | Injector | 22C |
