Function Schematic For Engine Limp-Home Mode - PE07.10-P-2510-97I
Engine 176 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 8D |
| 2 | Service brake, status | 8B |
| 2 | Service brake, status | 14B |
| 3 | Circuit 87, status | 14D |
| 4 | Engine speed, signal | 14F |
| 5 | Camshaft Hall sensor, signal | 14H |
| 6 | Throttle valve position, signal | 14K |

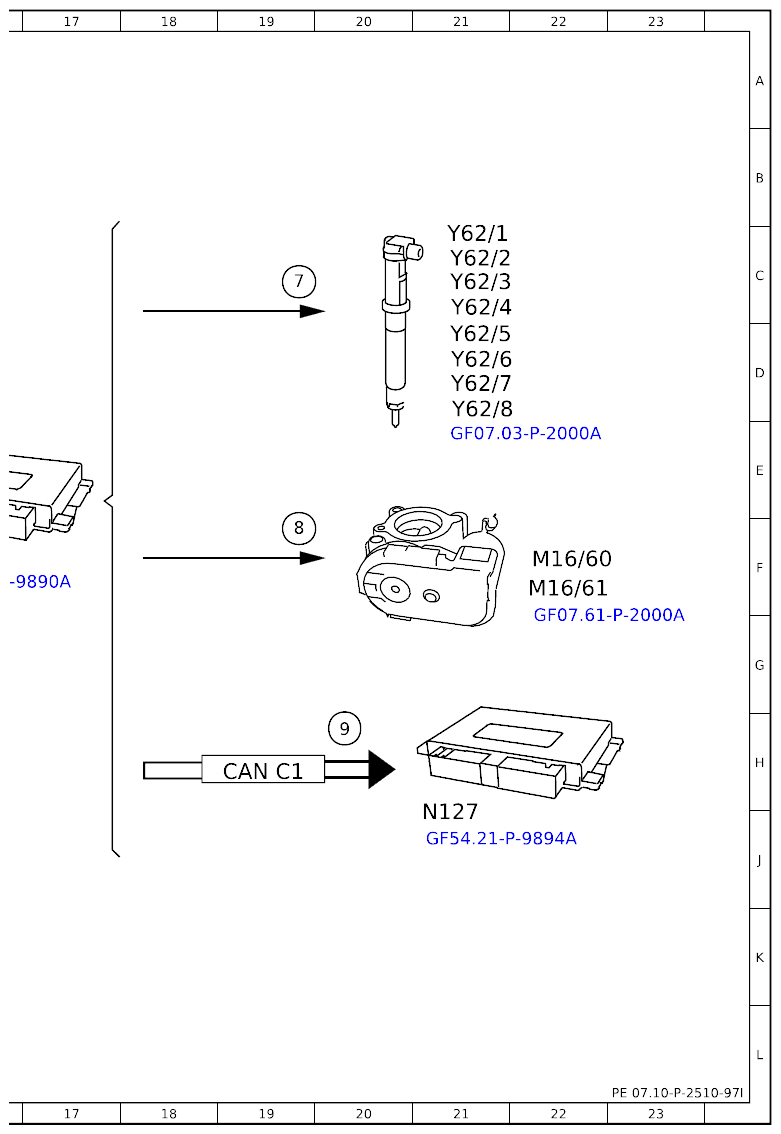

| 7 | Fuel injectors, actuation | 19C |
| 8 | Throttle valve actuator motor, actuation | 19F |
| 9 | Engine running, signal | 20H |

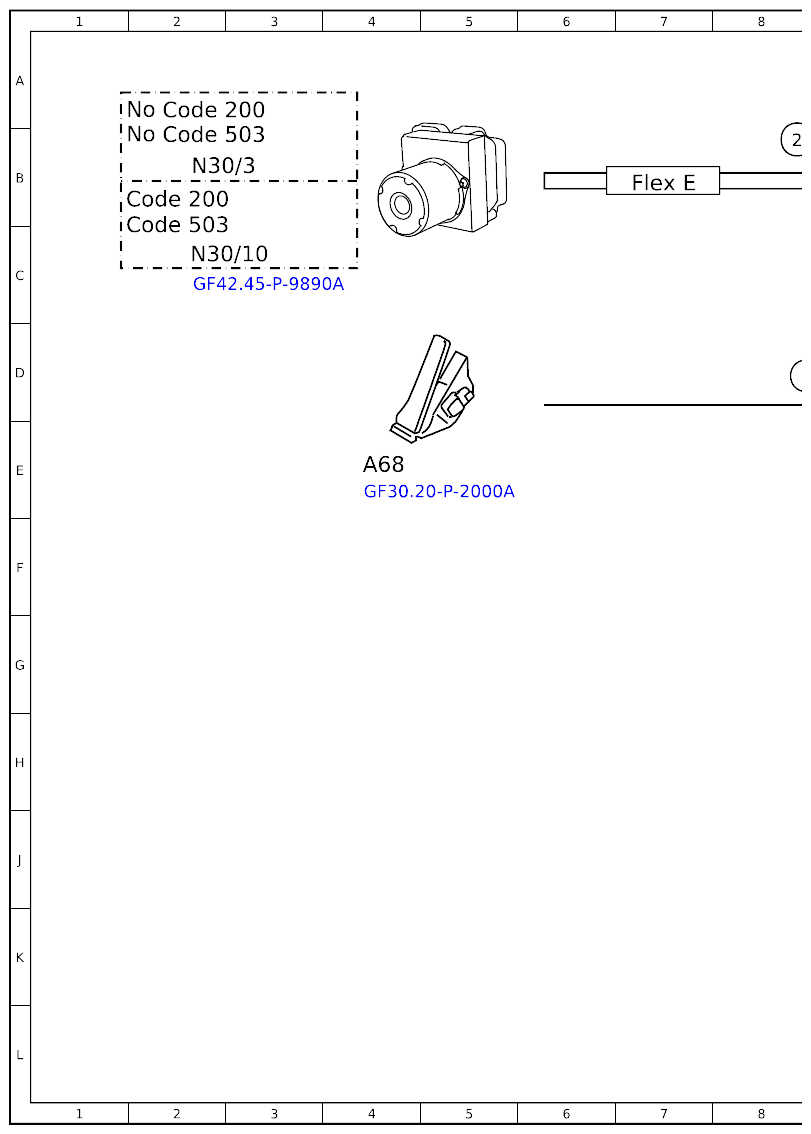

| A68 | Accelerator pedal module | 4E |
| B6/4 | Camshaft Hall sensor | 10H |
| B6/5 | Camshaft Hall sensor | 10H |
| B6/6 | Camshaft Hall sensor | 10H |
| B6/7 | Camshaft Hall sensor | 10J |

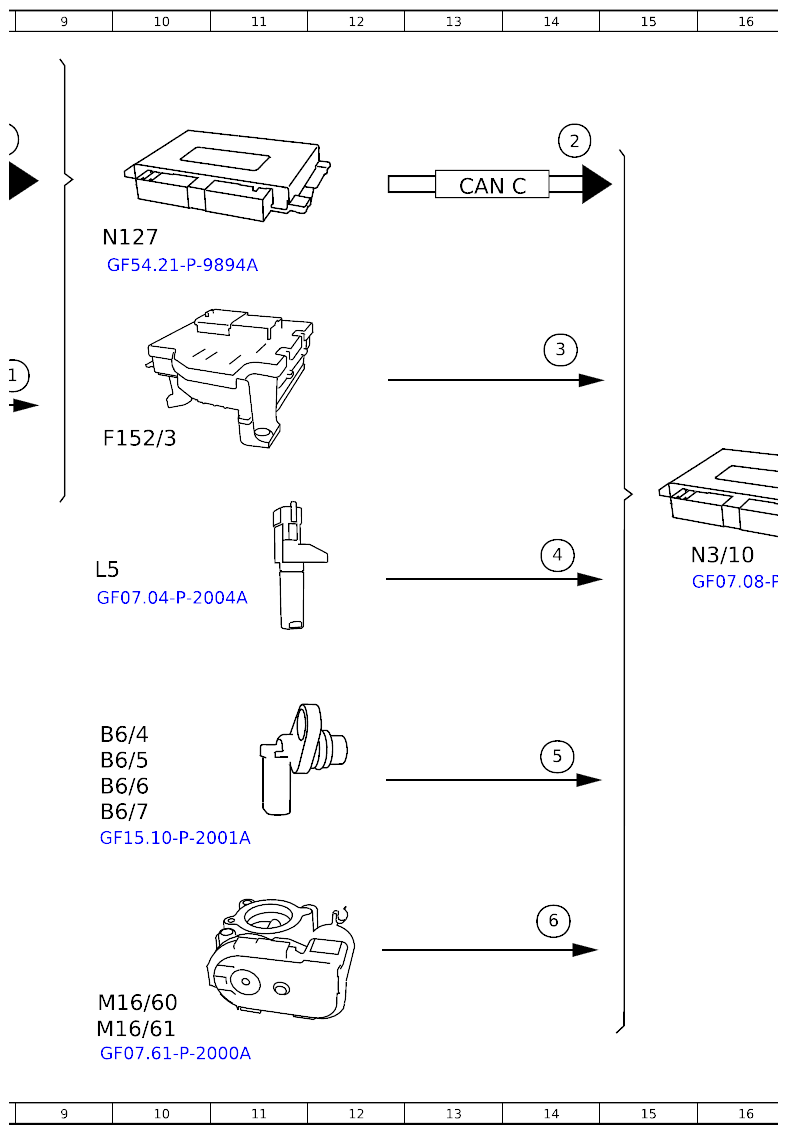

| CAN C | CAN for engine | 13B |
| CAN C1 | CAN 1 for drive | 19H |
| Code 200 | Conditionally automated driving | 1B |
| Code 200 | Conditionally automated driving | 2A |
| Code 503 | Remote-controlled parking | 2B |
| Code 503 | Remote-controlled parking | 1C |
| F152/3 | Fuse and relay module | 10E |
| Flex E | Chassis FlexRay | 7B |
| L5 | Crankshaft Hall sensor | 9F |
| M16/60 | Throttle valve actuator | 10L |
| M16/60 | Throttle valve actuator | 22F |
| M16/61 | Throttle valve actuator | 10L |
| M16/61 | Throttle valve actuator | 22F |
| N127 | Drivetrain control unit | 10C |
| N127 | Drivetrain control unit | 21J |
| N3/10 | Engine management control unit | 16F |
| N30/10 | Electronic Stability Program control unit | 2C |
| N30/3 | Electronic Stability Program control unit | 2B |
| Y62/1 | Injector | 21C |
| Y62/2 | Injector | 21C |
| Y62/3 | Injector | 21C |
| Y62/4 | Injector | 21C |
| Y62/5 | Injector | 21D |
| Y62/6 | Injector | 21D |
| Y62/7 | Injector | 21D |
| Y62/8 | Injector | 21D |
