Fuel Pressure And Temperature Sensor, Component Description - GF07.04-P-6260A

Model 223

Courtesy of MERCEDES-BENZ USA

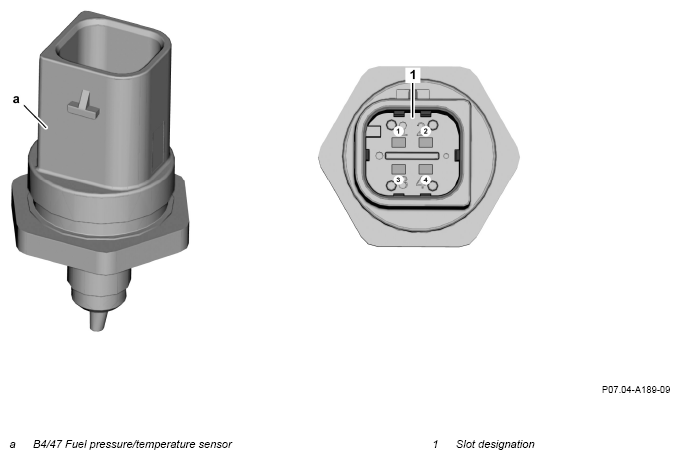

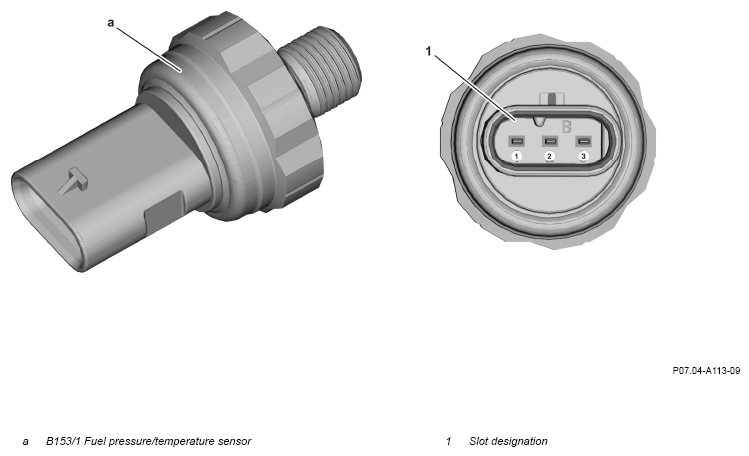

Depiction valid for model 223 with engine M656

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

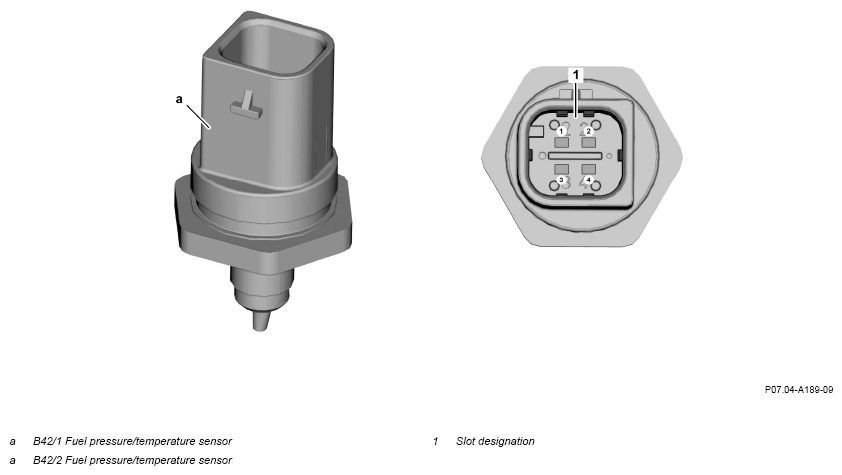

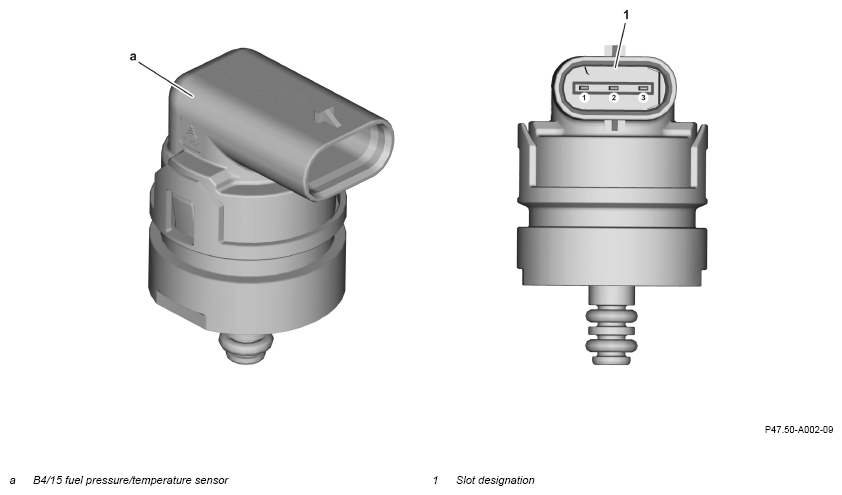

Depiction valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Depiction valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

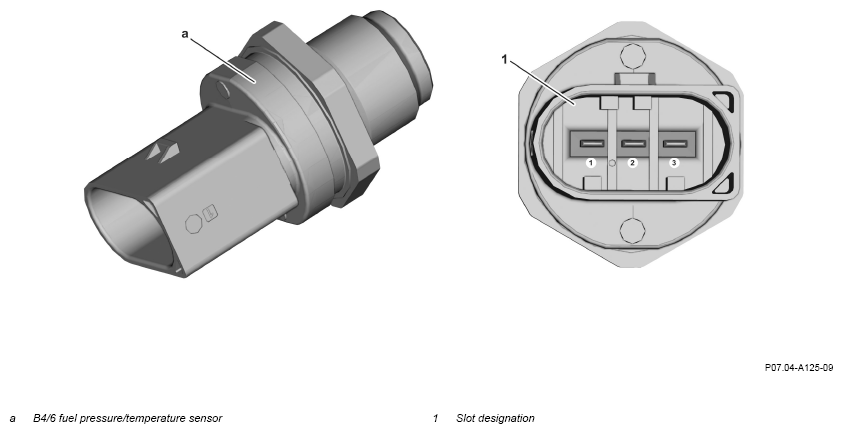

Depiction valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Depiction valid for model 223 with engine M177

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

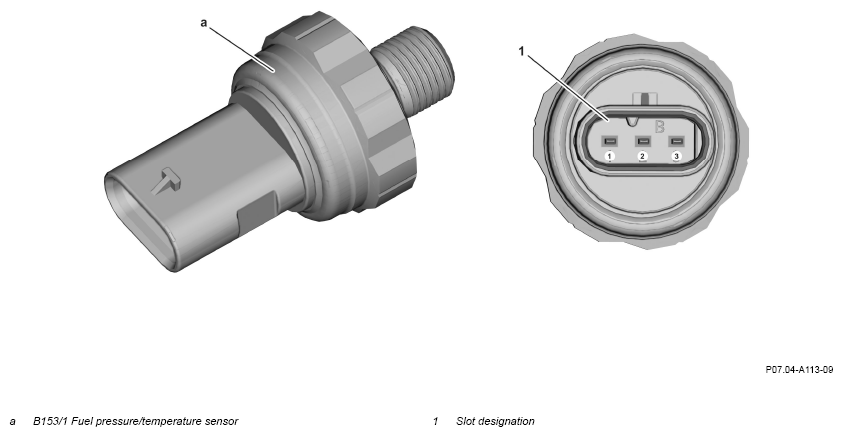

Depiction valid for model 223 with engine M654

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Depiction valid for model 223 with engine M656

The numbers on the pins indicate the pin numbering of the slots.

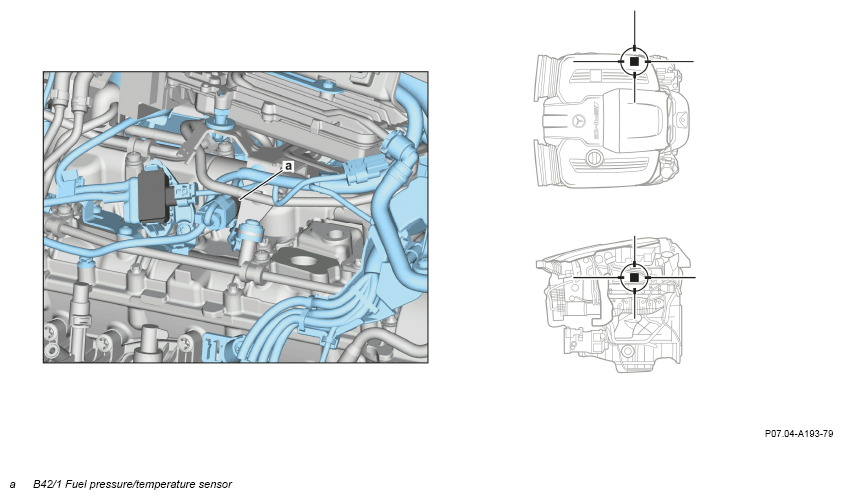

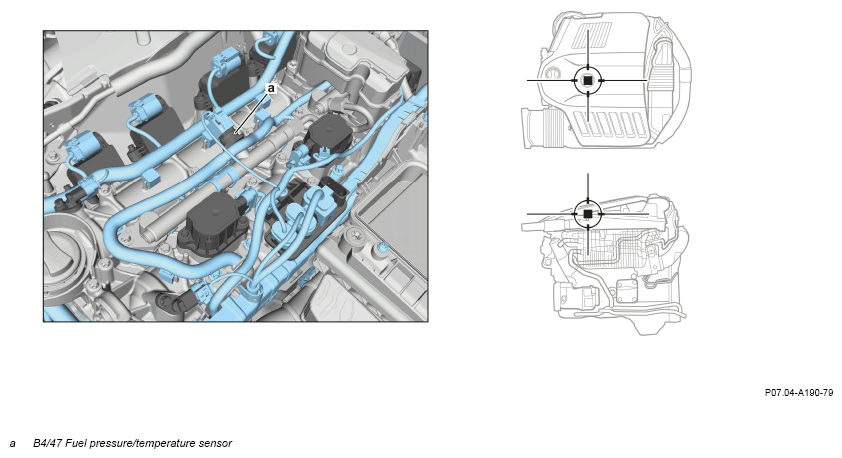

Arrangement in model 223 with engine M256

Courtesy of MERCEDES-BENZ USA

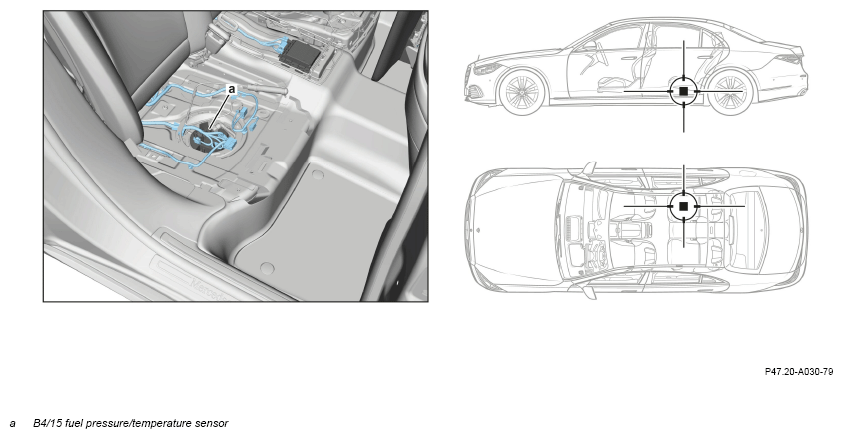

Location on model 223

Arrangement in model 223 with engine M256

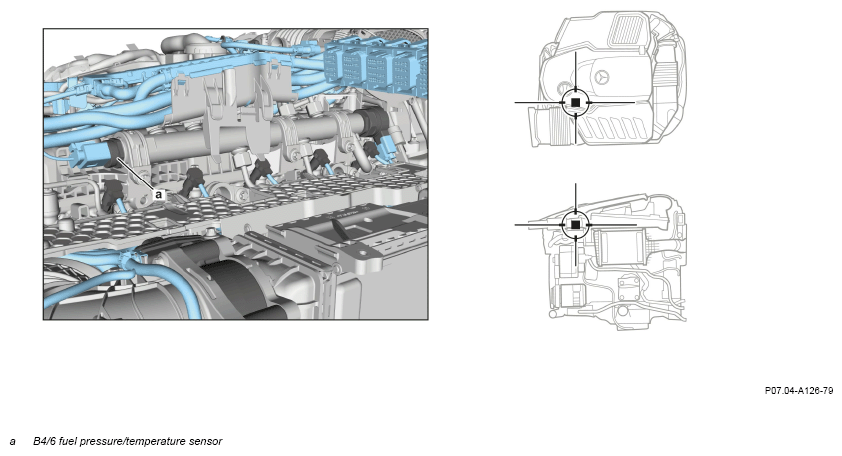

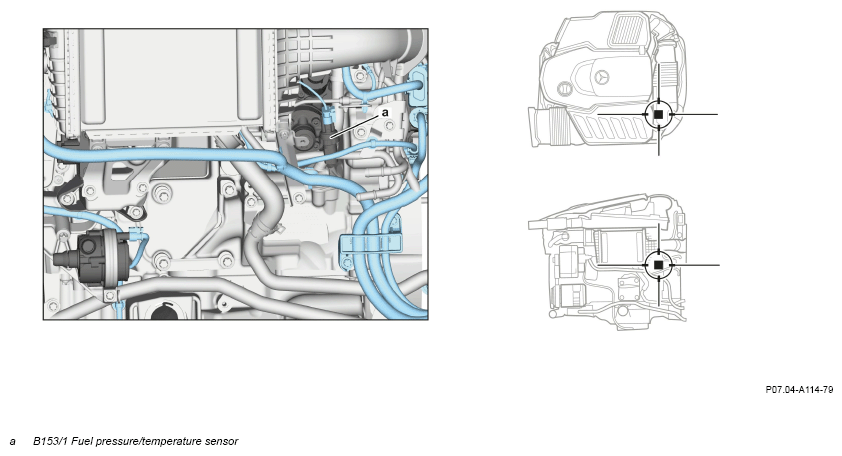

Arrangement in model 223 with engine M176

Courtesy of MERCEDES-BENZ USA

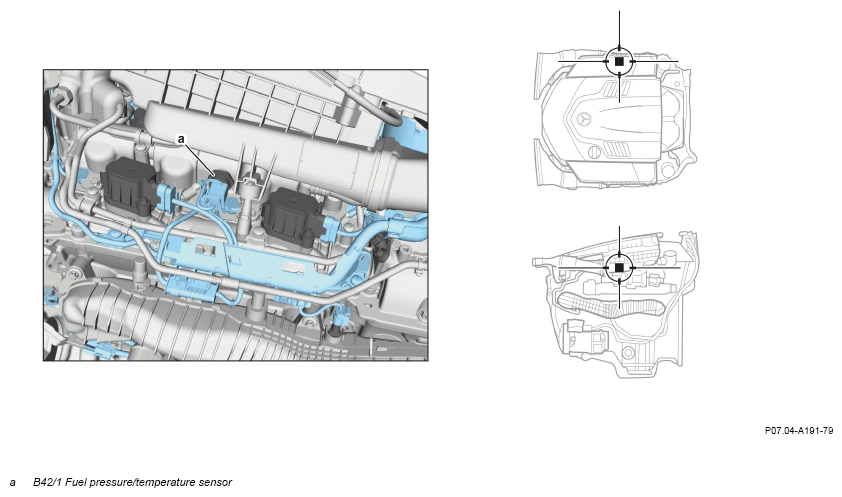

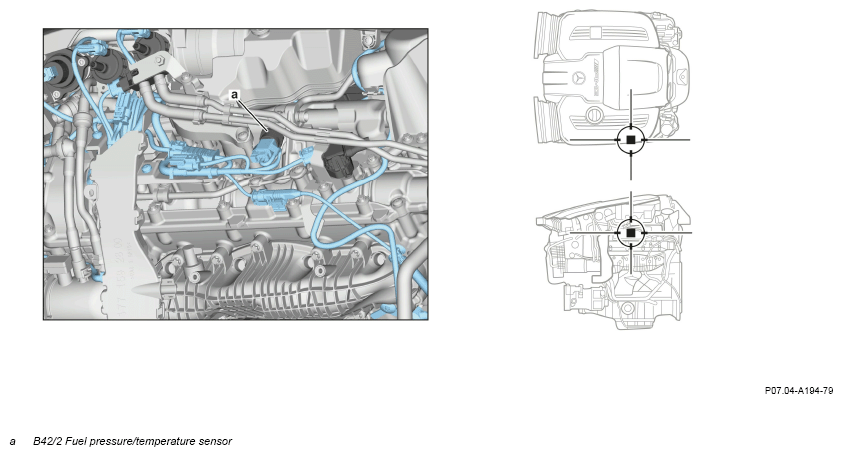

Arrangement in model 223 with engine M177

Arrangement in model 223 with engine M176

Courtesy of MERCEDES-BENZ USA

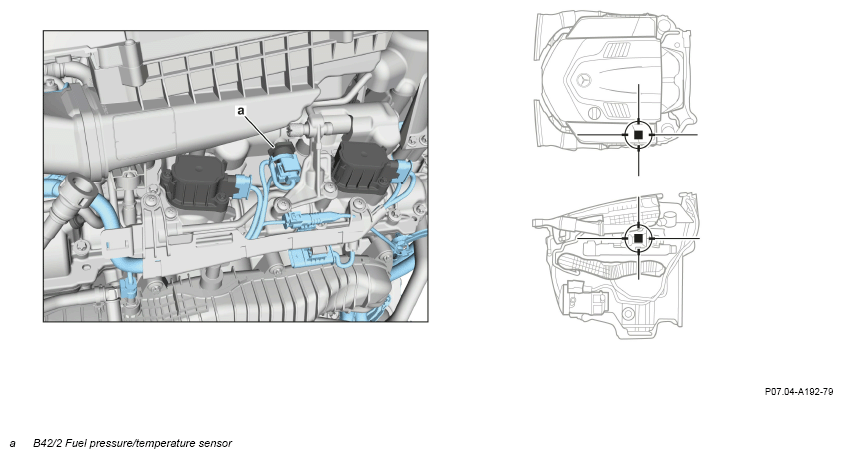

Arrangement in model 223 with engine M177

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M654

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M656
