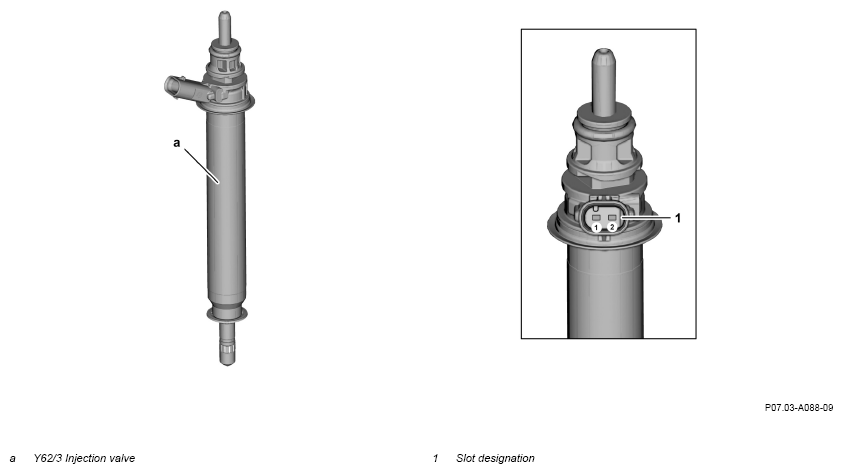

Fuel Injection Valve, Component Description - GF07.03-P-6121A

Model 223

Courtesy of MERCEDES-BENZ USA

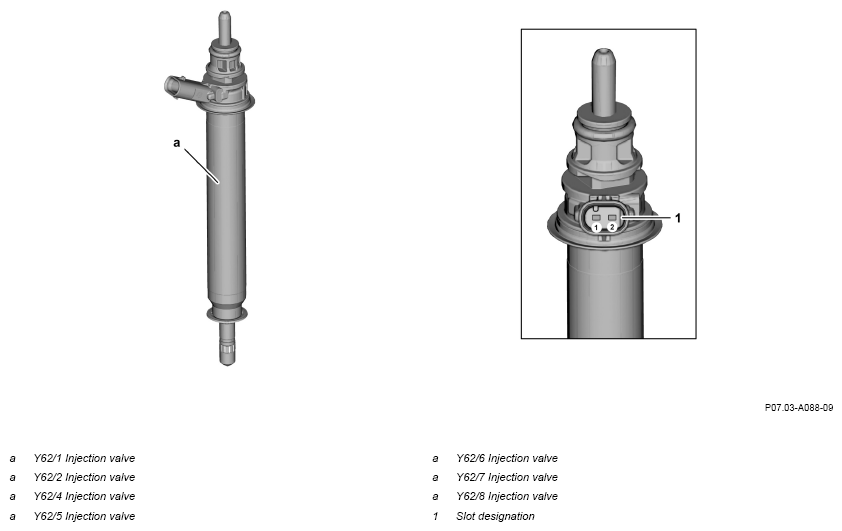

Illustration valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

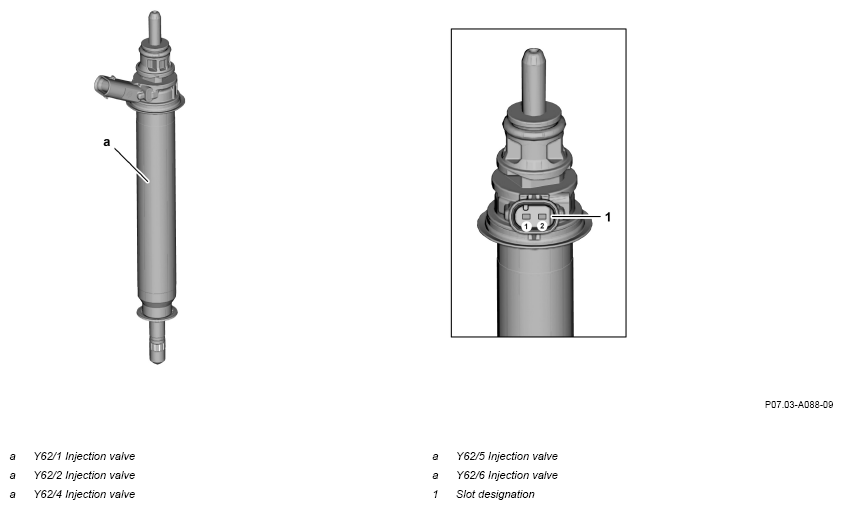

Illustration valid for model 223 with engine M177

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

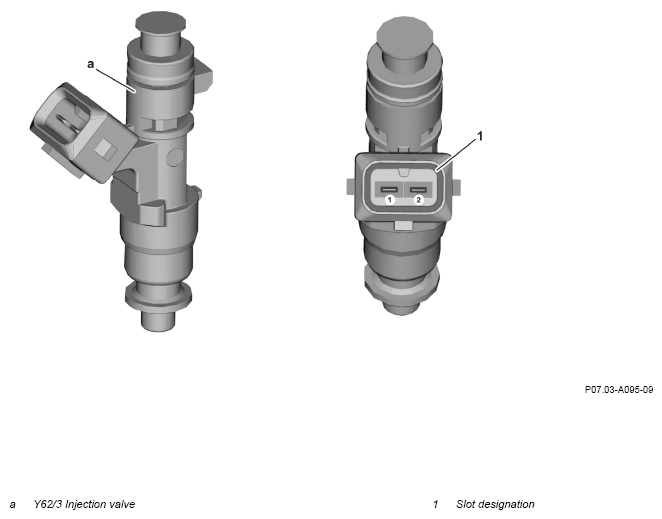

Illustration valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

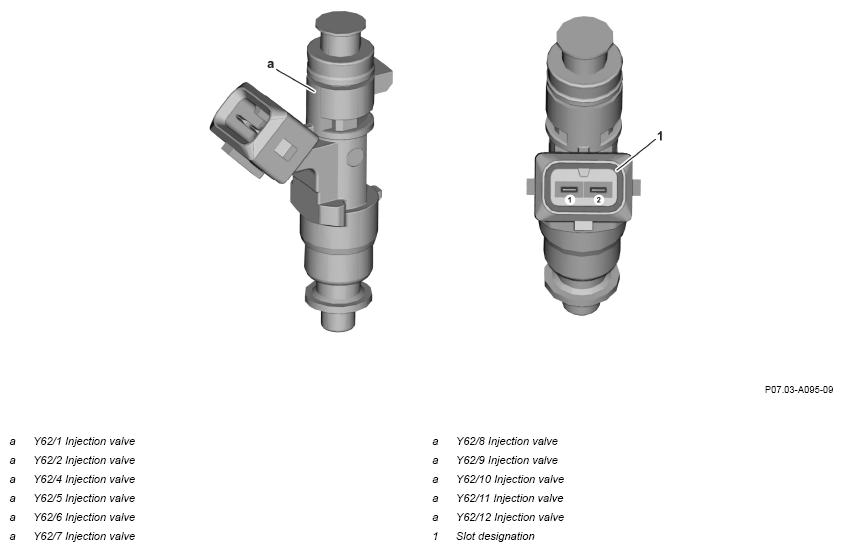

Illustration valid for model 223 with engine M177

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

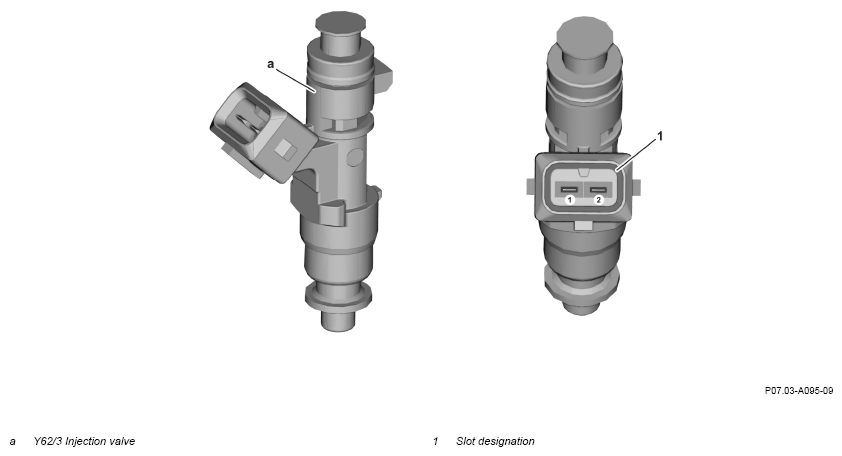

Illustration valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with engine M279

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Illustration valid for model 223 with engine M279

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

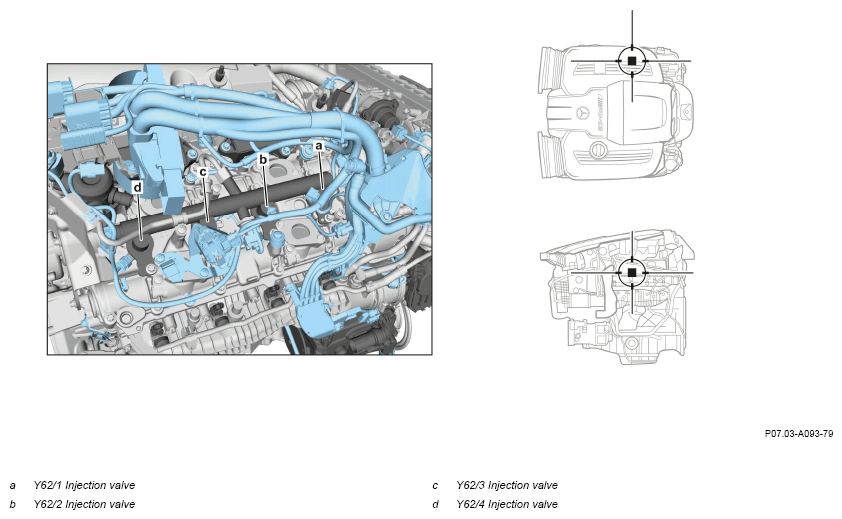

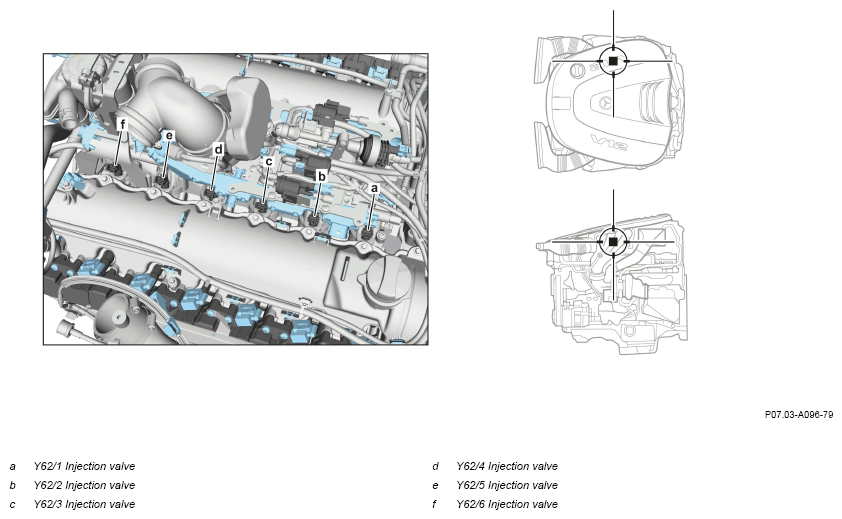

Location in model 223 with engine M176

Courtesy of MERCEDES-BENZ USA

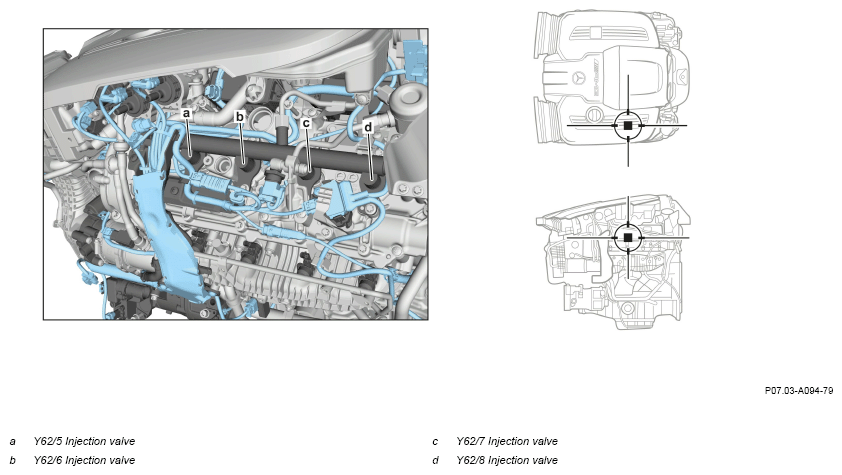

Location in model 223 with engine M176

Courtesy of MERCEDES-BENZ USA

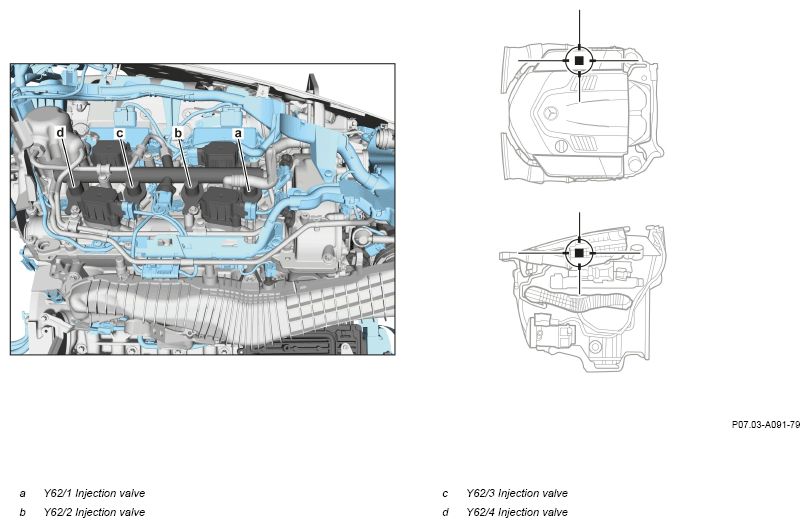

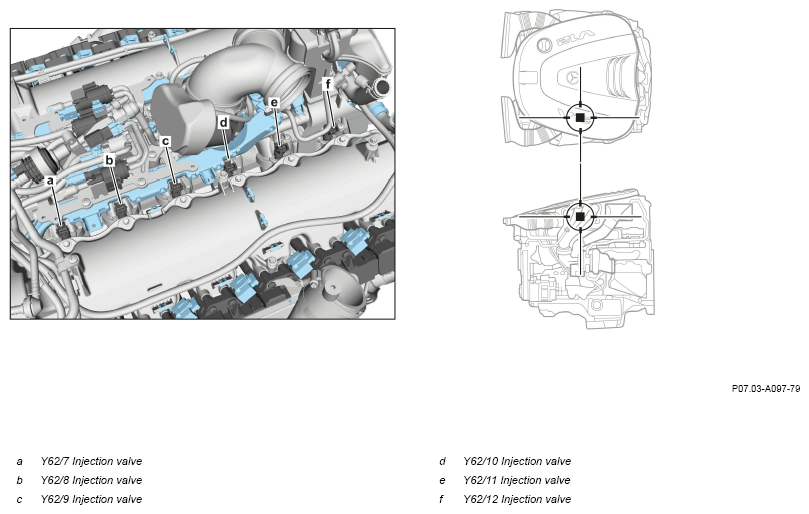

Location in model 223 with engine M177

Courtesy of MERCEDES-BENZ USA

Location in model 223 with engine M177

Courtesy of MERCEDES-BENZ USA

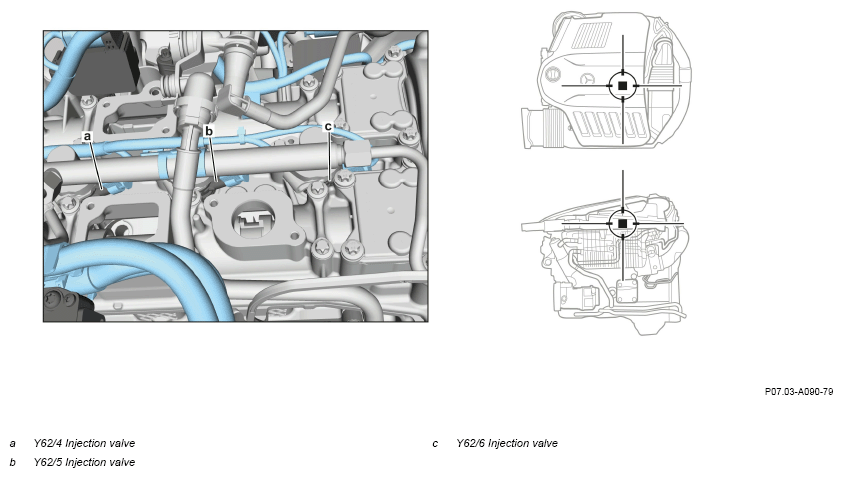

Location in model 223 with engine M256

Courtesy of MERCEDES-BENZ USA

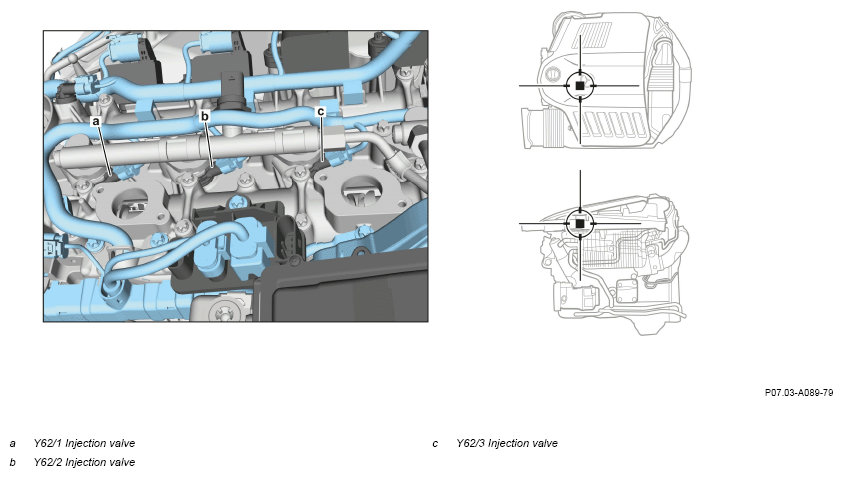

Location in model 223 with engine M256

Courtesy of MERCEDES-BENZ USA

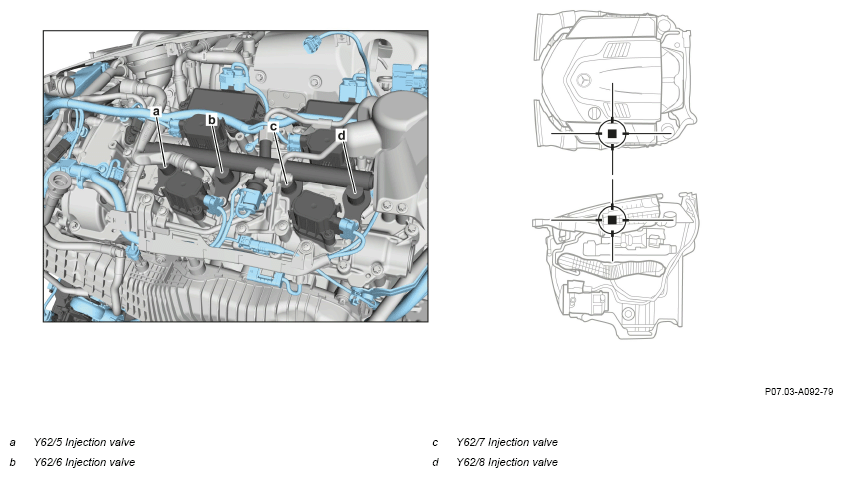

Location in model 223 with engine M279

Location in model 223 with engine M279
