Engine Management Control Unit (ME-SFI), Component Description - GF07.15-P-5003A
Model 223
 Courtesy of MERCEDES-BENZ USA
|

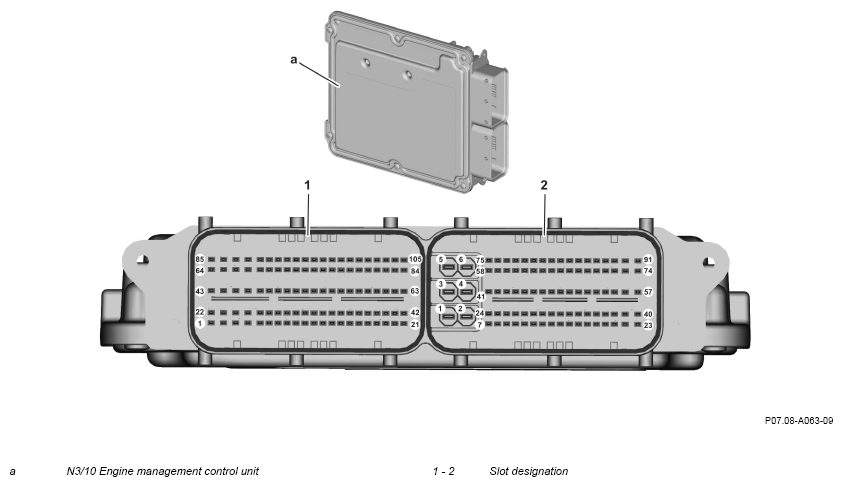

Depiction valid for model 223 with engine M279
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

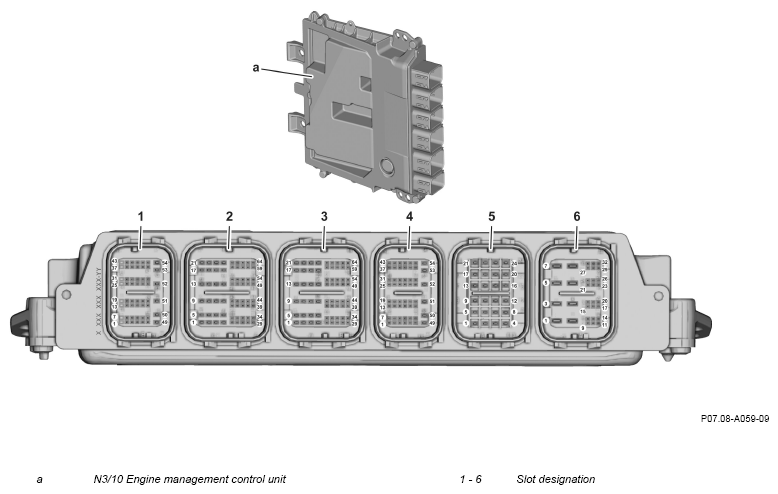

Depiction valid for model 223 with engines M176, M177
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

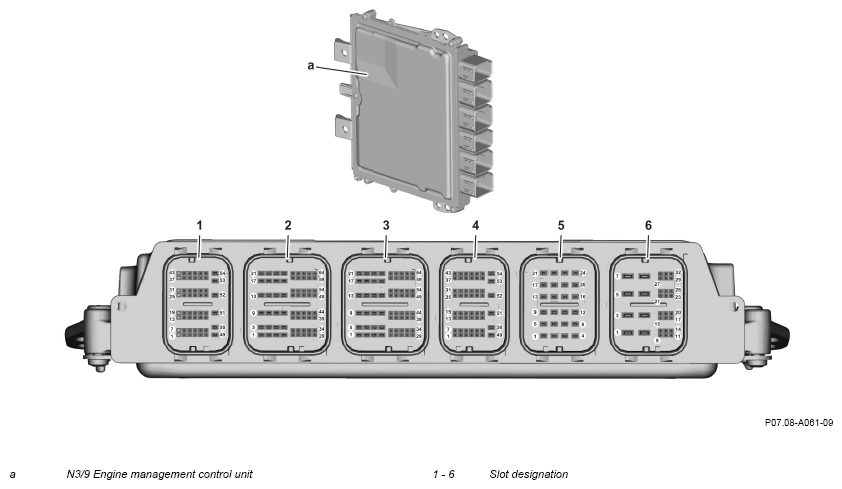

Depiction valid for model 223 with engine M256
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

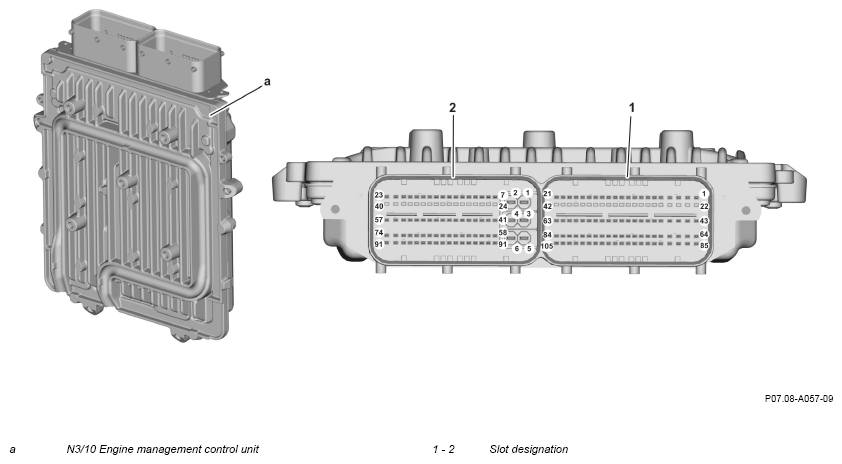

Depiction valid for model 223 with engine M656
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

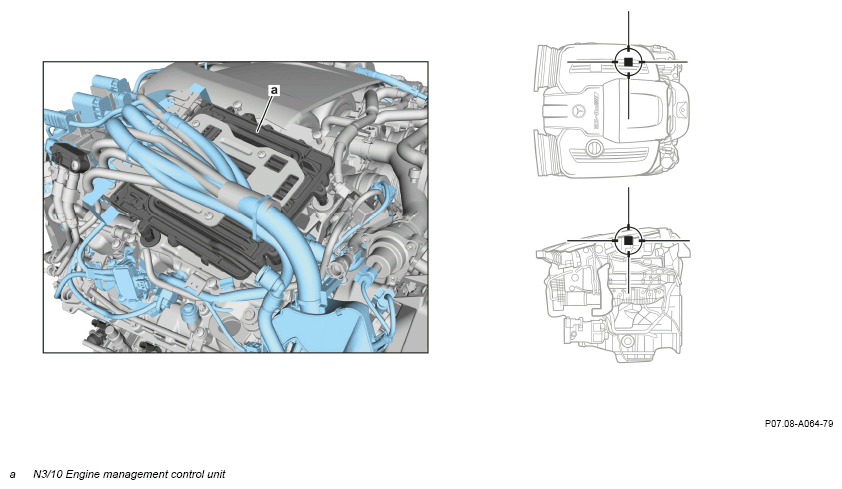

Arrangement in model 223 with engine M279
 Courtesy of MERCEDES-BENZ USA
|

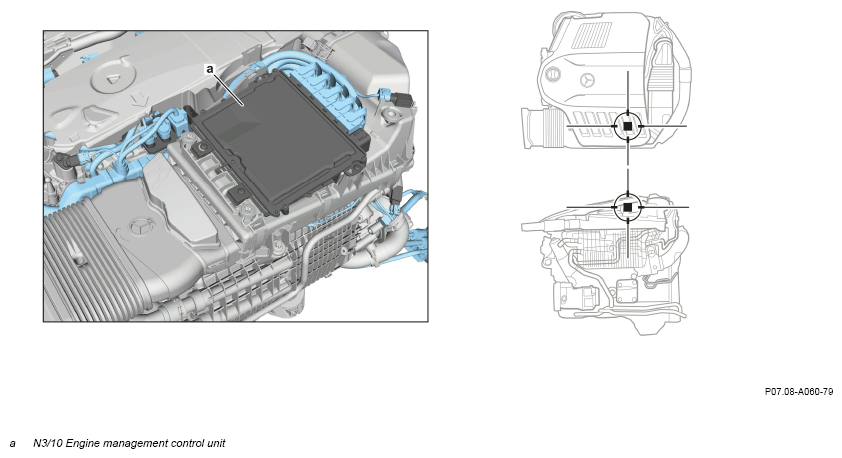

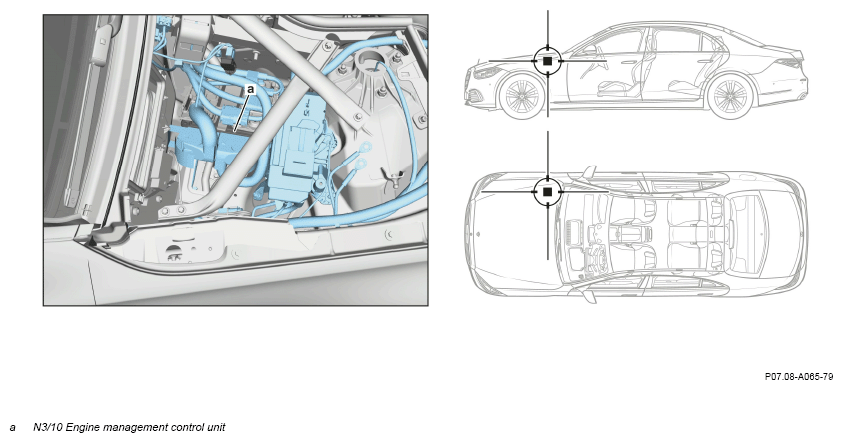

Arrangement in model 223 with engine M176
 Courtesy of MERCEDES-BENZ USA
|

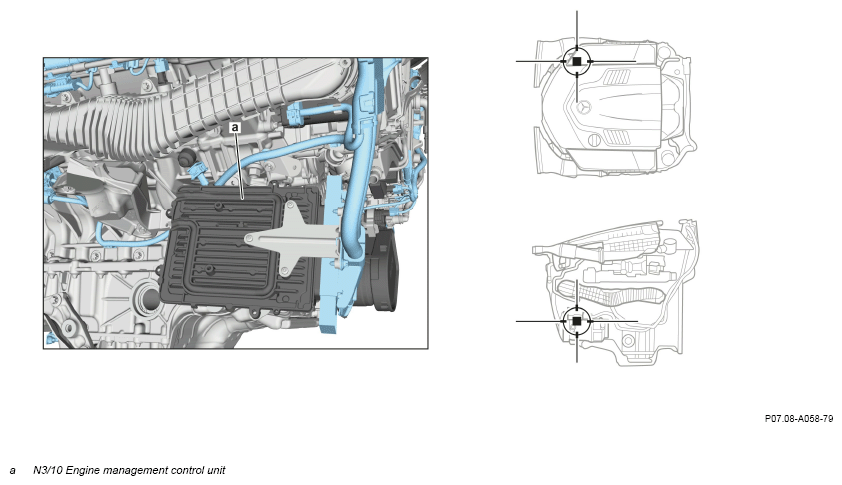

Arrangement in model 223 with engine M177
 Courtesy of MERCEDES-BENZ USA
|

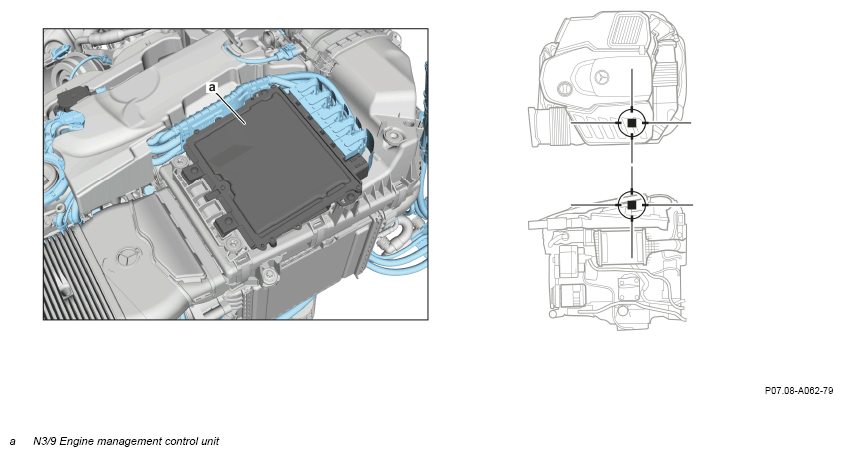

Arrangement in model 223 with engine M256
 Courtesy of MERCEDES-BENZ USA
|
Arrangement in model 223 with engine M656
