Crankshaft Hall Sensor, Component Description - GF07.04-P-6221A

Model 223

Courtesy of MERCEDES-BENZ USA

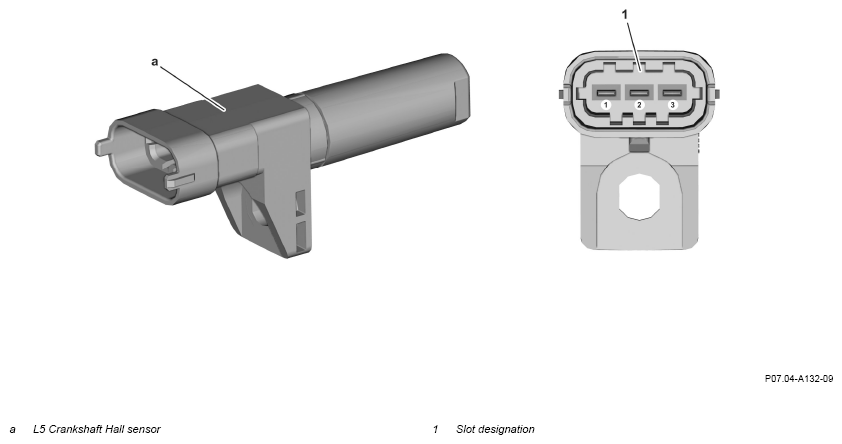

Diagram valid for model 223 with engine M656

Numbers on pins mark pin numbering of slots.

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with engine M279

Numbers on pins mark pin numbering of slots.

Courtesy of MERCEDES-BENZ USA

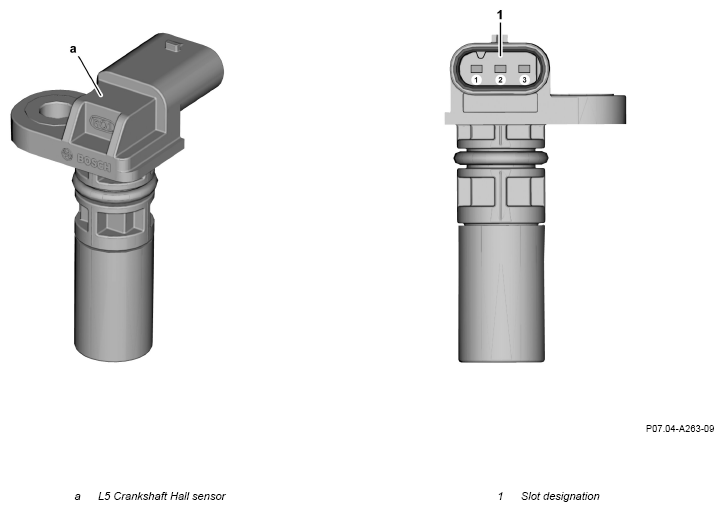

Diagram valid for model 223 with engines M176, M177, M256

Numbers on pins mark pin numbering of slots.

Courtesy of MERCEDES-BENZ USA

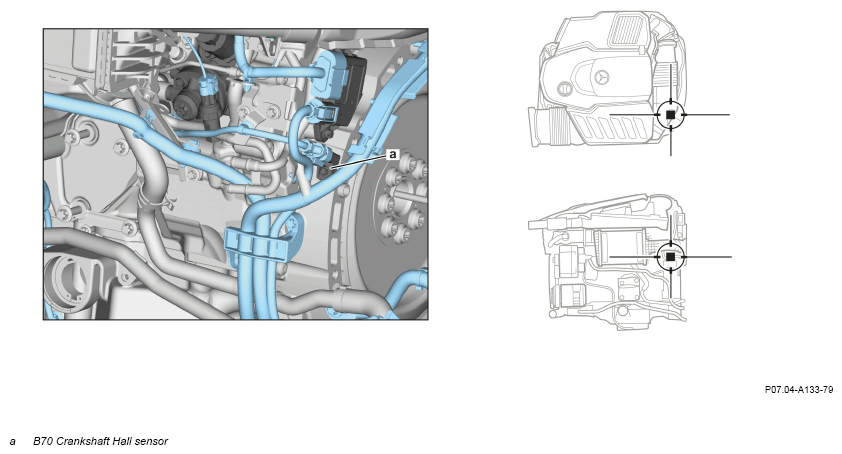

Arrangement in model 223 with engine M656

Courtesy of MERCEDES-BENZ USA

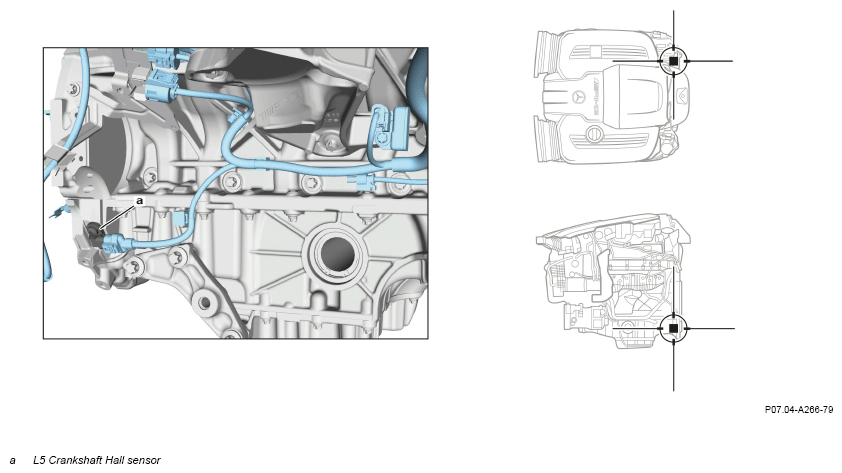

Arrangement in model 223 with engine M177

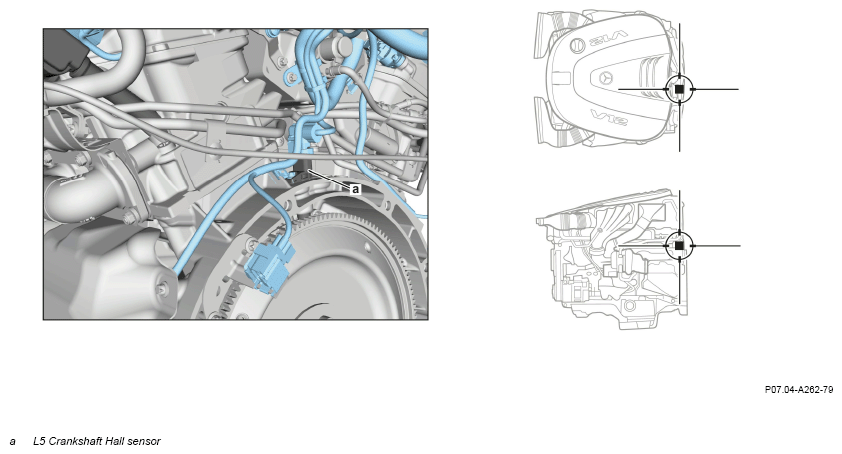

Fig 1: Crankshaft Hall Sensor Components Location - Model 223 With Engine 279

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M279

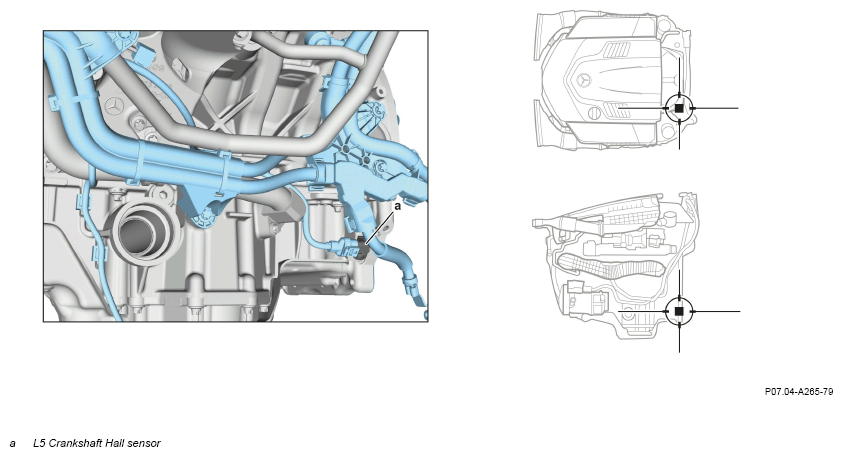

Fig 2: Crankshaft Hall Sensor Components Location - Model 223 With Engine 256

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M256

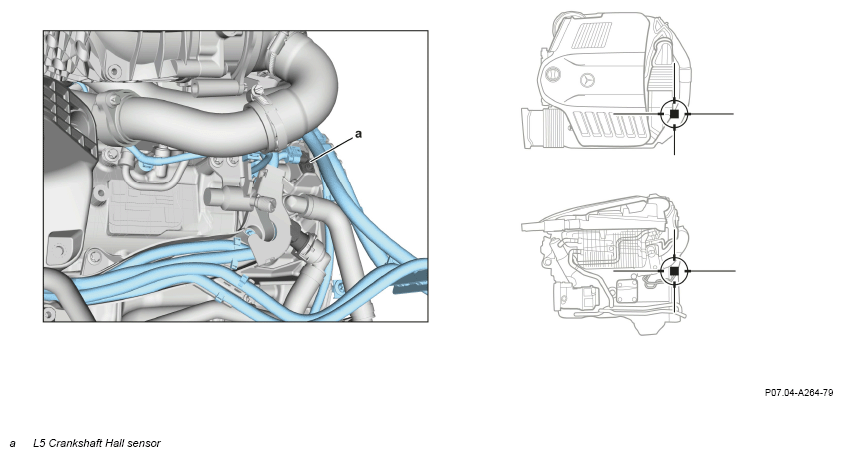

Fig 3: Crankshaft Hall Sensor Components Location - Model 223 With Engine 176

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M176
