Remove/Install Camshaft Hall Sensor - AR15.10-P-1999SVZ

Engine 279 in model 223

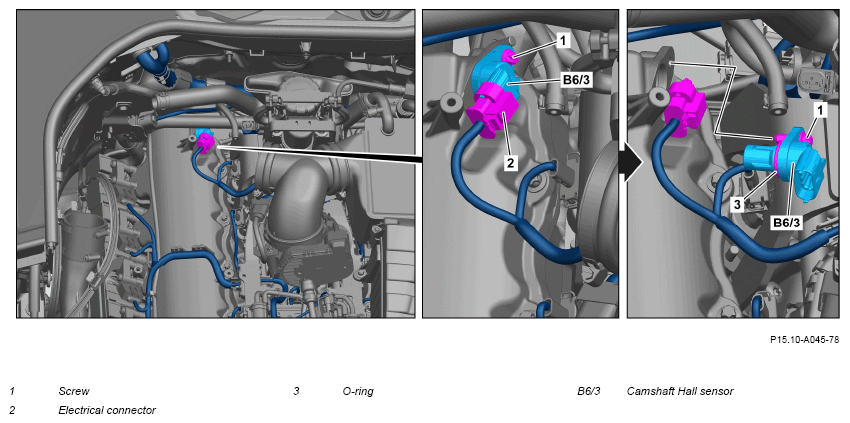

Fig 1: Camshaft Hall Sensor Components Location - Model 223 With Engine 279

Courtesy of MERCEDES-BENZ USA

Shown with charge air cooler removed

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right charge air cooler and place to one side with coolant hoses connected.	: Install the engine cover only after the engine test run.	AR09.41-P-6828SVZ
2	Release and disconnect the electrical connector (2).
3	Remove screw (1).	Bolt, Hall sensor for camshaft to cylinder head cover	*BA15.10-P-1002-03K
4	Remove camshaft Hall sensor (B6/3).	: Replace O-ring (3) and moisten with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
		Assembly tool	Fig 2
5	Install in the reverse order.
	Check
6	Read out and delete fault memory using diagnostic system.
			AD00.00-P-2000-06FR
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Carry out engine test run and check engine for proper operation and leak tightness.

Fig 2: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA
