Disconnect/Connect Engine Wiring Harness For Removal Of Charge Air Distributor - AR15.18-P-1011-01SB

Engine 256.9 in model 223

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A

12 V ON-BOARD ELECTRICAL SYSTEM ENGINE WIRING HARNESS

Number	Designation		Engine 256
BA15.18-P-1001-01MRT	Screw, engine wiring harness ground line to camshaft housing	Nm	8

12 V ON-BOARD ELECTRICAL SYSTEM ENGINE WIRING HARNESS

Number	Designation		Engine 256
BA15.18-P-1002-01MRT	Screw, engine wiring harness cable duct to camshaft housing	Nm	8

12 V ON-BOARD ELECTRICAL SYSTEM ENGINE WIRING HARNESS

Number	Designation		Engine 256
BA15.18-P-1003-01MRT	Screw, engine wiring harness potential distributor to camshaft housing	Nm	8

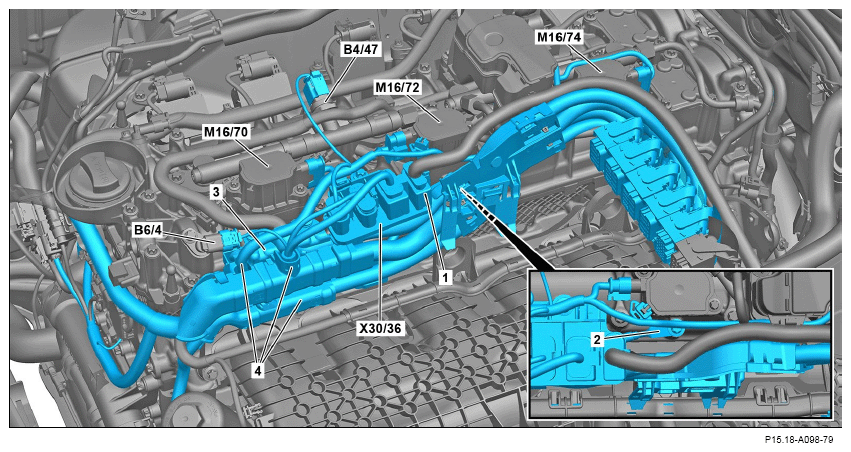

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Release electrical connector (1) and disconnect.
Remove ground line (2) from engine .
Remove potential distributor (X30/36) from engine .
Release and disconnect electrical connector at CAMTRONIC actuator (M16/70).
Release and disconnect electrical connector at CAMTRONIC actuator (M16/72).
Release and disconnect electrical connector at CAMTRONIC actuator (M16/74).
Release and disconnect electrical connector at fuel pressure/temperature sensor (B4/47).
Release and disconnect electrical connector at camshaft Hall sensor (B6/4).
Remove bracket (3) from engine .
Remove wiring harnesses (4) from engine using disassembly tool.
Position bracket (3), wiring harnesses (4) and potential distributor (X30/36) outside the working area.
Do not crush or kink or subject lines to tension.

This will result in damage to the lines and can impair their function.
Connect in reverse order.
