Purge Control Valve, Component Description - GF47.30-P-2020A

Model 223 with Engine 176

Model 223 with Engine 177

Model 223 with Engine 256

Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with Engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

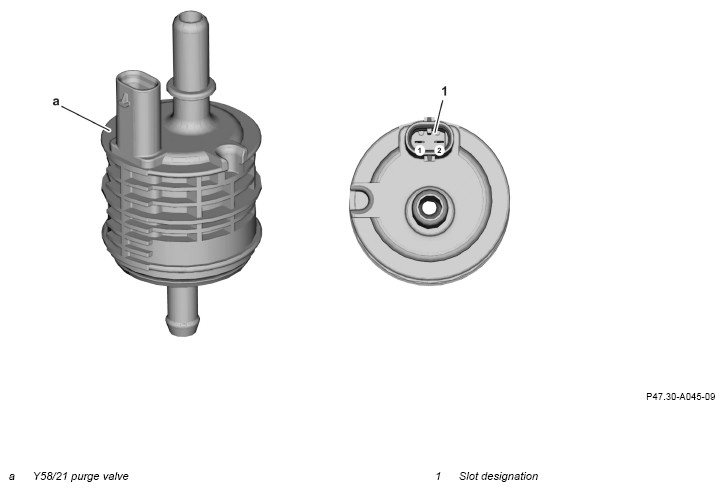

Diagram valid for model 223 with Engine M176, M177

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

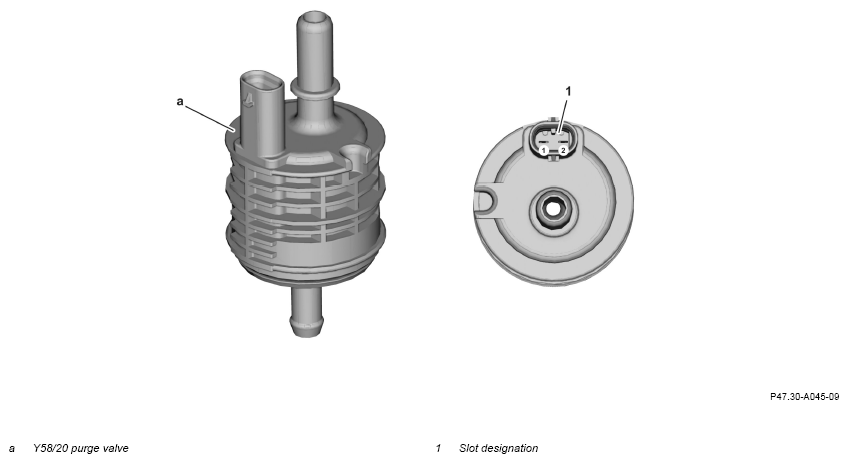

Diagram valid for model 223 with Engine M176, M177

The numbers on the pins indicate the pin numbering of the slots.

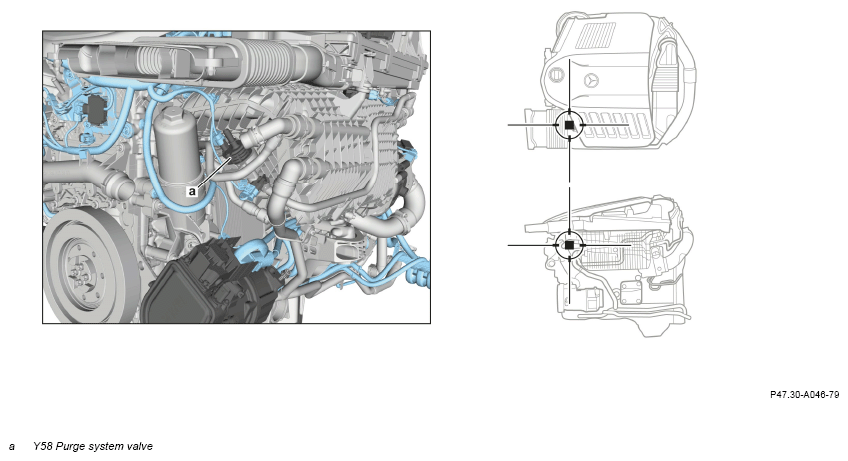

Arrangement in model 223 with Engine M256

Courtesy of MERCEDES-BENZ USA

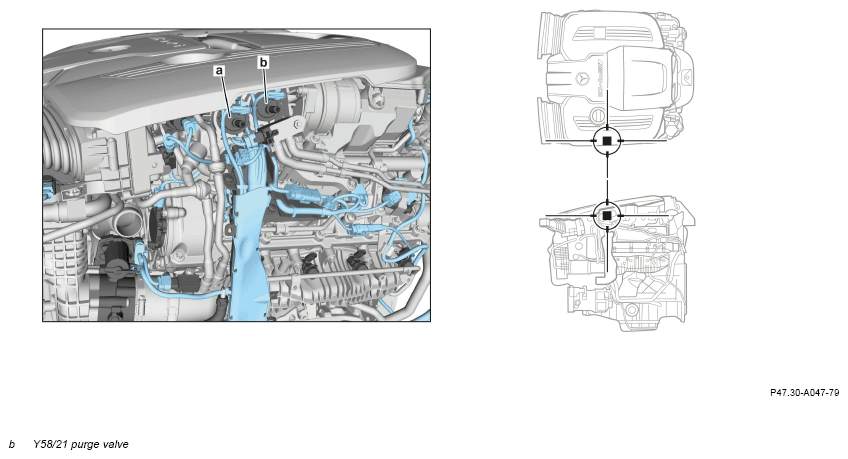

Arrangement in model 223 with Engine M176

Courtesy of MERCEDES-BENZ USA

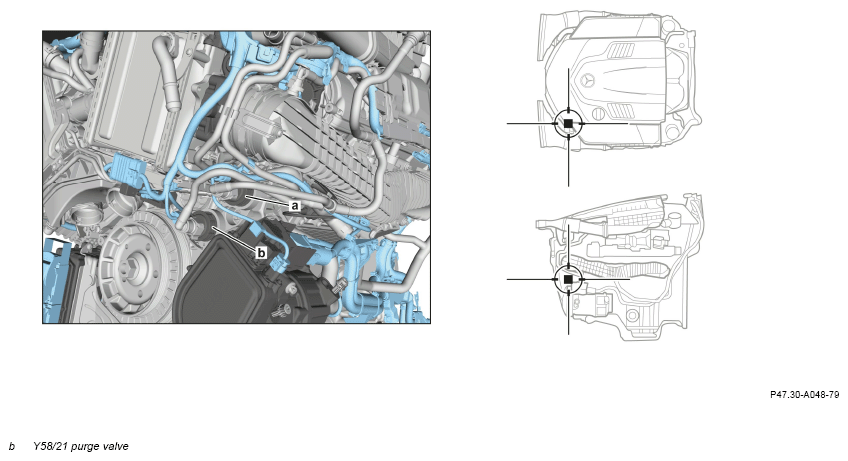

Arrangement in model 223 with Engine M177

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with Engine M176

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with Engine M177
